神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-006) - GUARD ASSY, WINDOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
783 次

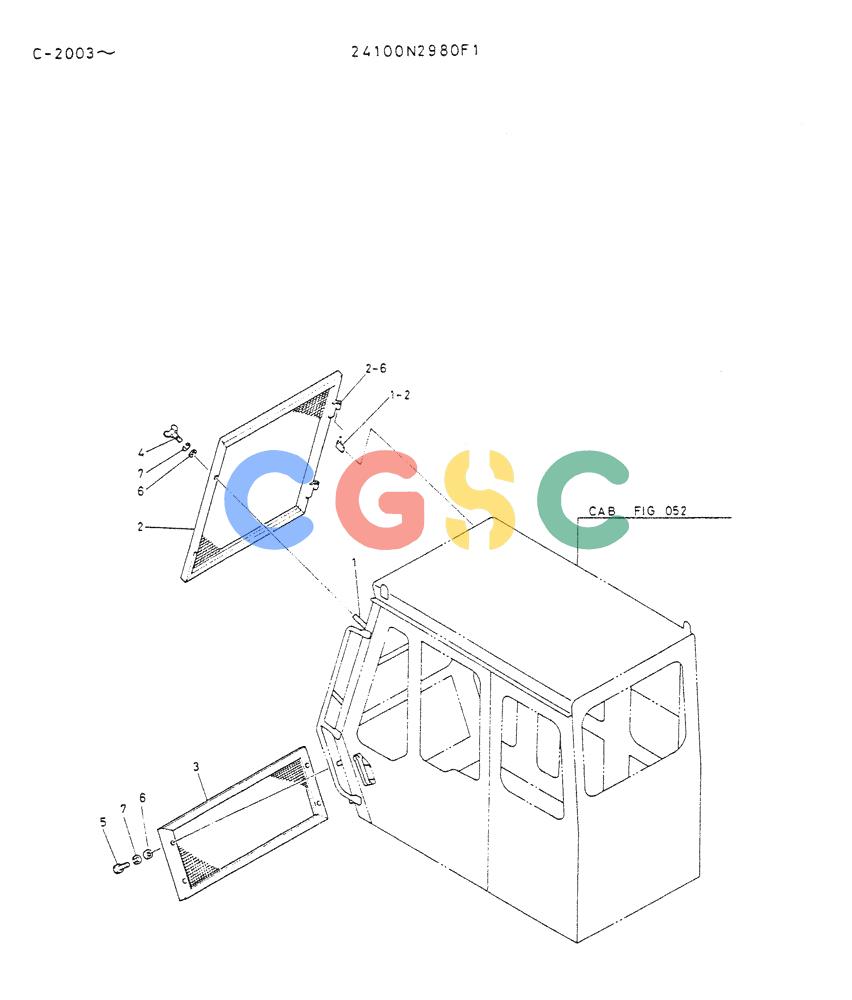

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2980F1 | [1] | GUIDE ASSY, WINDOW | GUIDE ASSY, WINDOW |
| 1. | 2427N1660 | [1] | FRAME | |
| 1-2. | 2420T4362 | [2] | HINGE | |
| 2. | 2414N1932 | [1] | GUARD,WINDOW | |
| 2-6. | 2420Z954 | [2] | HINGE | |
| 3. | 2414P3910 | [1] | GUARD,WINDOW | |
| 4. | 2420Z952 | [2] | BOLT | KOBBOLT, WING Superseded by part number: 2420R220D43 |
| 5. | ZS16C10025 | [4] | SCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 6. | ZW16P10000 | [6] | WASHER | KOBID 10.5 x OD 21 x Th 2.0mm |
| 7. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
