神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-009) - SEAT ASSY, SUSPENSION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
736 次

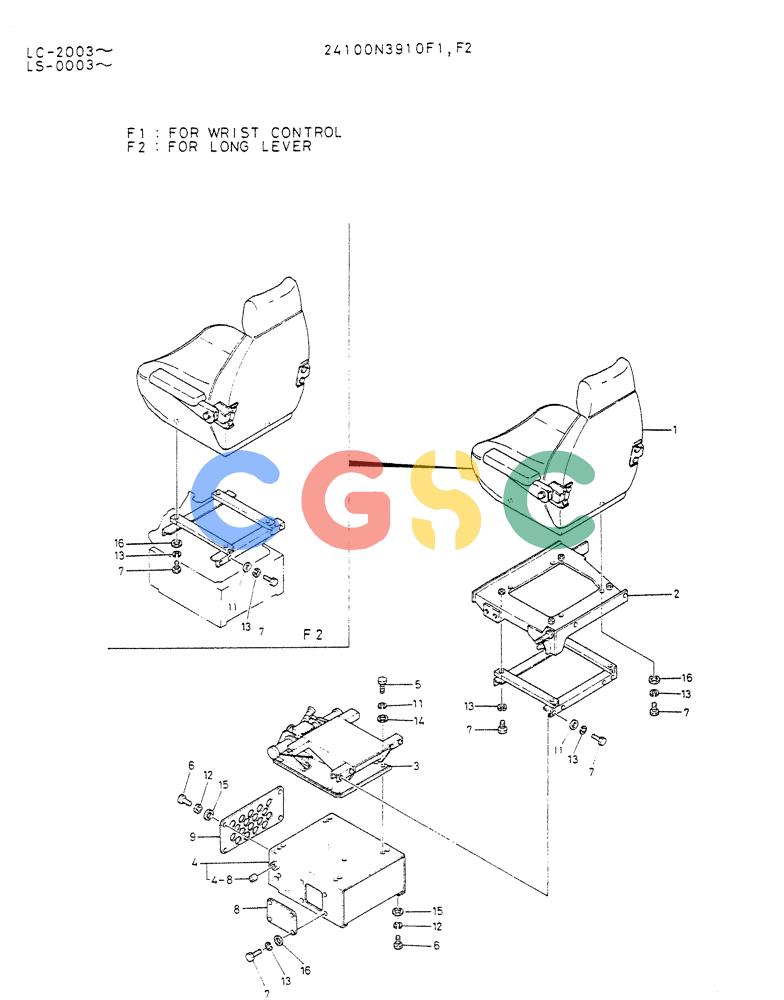

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3910F1 | [1] | SEAT ASSY | |
| 1. | 24100U338F1 | [1] | SEAT ASSY | SEAT ASSY |
| 2. | 2416J1052 | [1] | SUPPORT | KOB |
| 3. | 2448U126F1 | [1] | SUSPENSION | SUSPENSION |
| 4. | 2416P10279 | [1] | STAND/ SEAT | |
| 4-8. | 2405R61D6 | [1] | BUSHING | BUSHING |
| 5. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 6. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 7. | ZS18C08025 | [16] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 5. | 2414T3356 | [1] | COVER | |
| 9. | 2414T3357 | [1] | COVER | |
| 11. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 12. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | ZW26X06000 | [16] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 14. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 15. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 16. | ZW16X08000 | [12] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| . . | 24100N3910F2 | [1] | SEAT ASSY | |
| 8. | 2414T3356 | [1] | COVER | |
| 13. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
