纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (02-012) - DOZER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
549 次

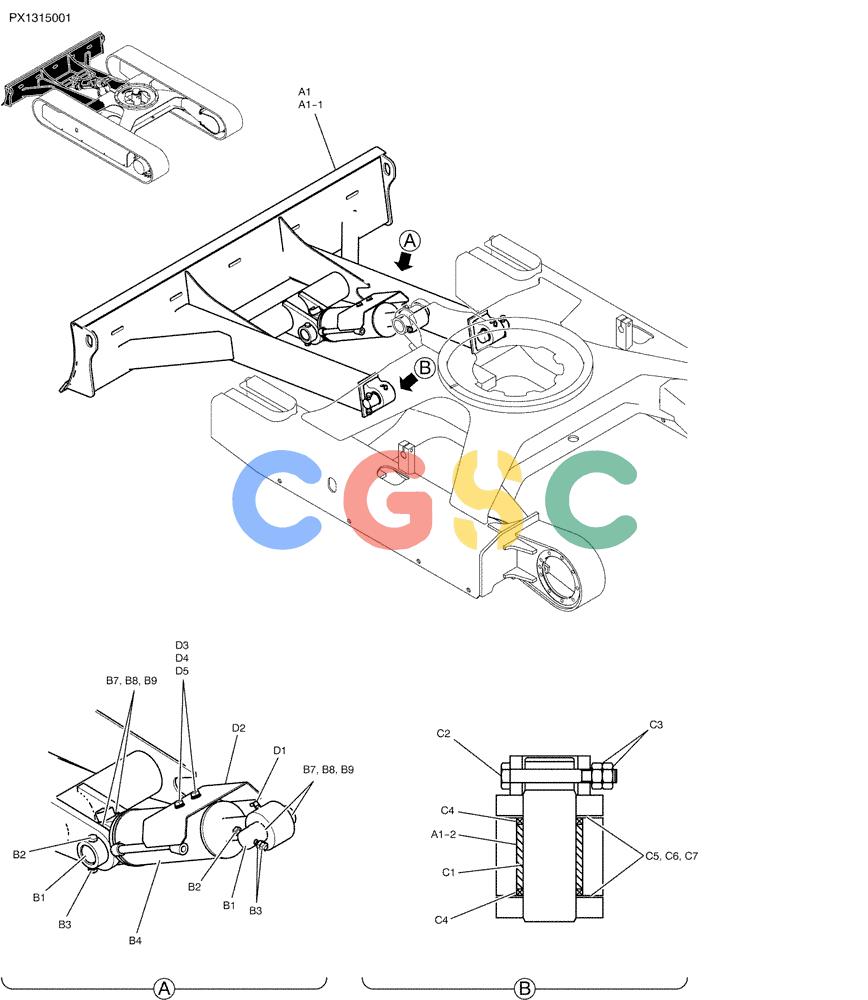

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX51B00078F1 | [1] | DOZER | KOBASSY Superseded by part number: PX51B00079F1 |
| A1. | PX51B00079F1 | [1] | DOZER BLADE | KOBASSY |
| A1-1. | PX51B00089P1 | [1] | | |
| A1-2. | PW51B01039P1 | [2] | BUSHING,40mm ID x 50mm OD x 50mm L | KOB |
| . . | PX51B00071F1 | [1] | CYLINDER INSTAL | |
| B1. | PH12B01009P1 | [2] | PIN,45mm OD x 137mm L | KOB |
| B2. | ZS18C10085 | [2] | SCREW,Hex, M10 x 85mm | KOBCAP |
| B3. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| B4. | PX01V00043F2 | [1] | CYLINDER | KOBCYLINDER ASSY, SEE(C.P.M) |
| B7. | B16T0442D64 | [2] | SHIM,70mm OD x 47mm ID x 1.2mm Thk | KOB |
| B8. | B16T0442D65 | [2] | SHIM,70mm OD x 47mm ID x 1.6mm Thk | KOB |
| B9. | B16T0442D66 | [2] | SHIM,70mm OD x 47mm ID x 2.3mm Thk | KOB |
| . . | PW51B00028F1 | [1] | DOZER INSTAL | |
| C1. | PW51B01028P1 | [2] | PIN,40mm OD x 127mm L | KOB |
| C2. | ZS18C10080 | [2] | SCREW,Hex, M10 x 80mm | KOBCAP |
| C4. | PN54D01001D3 | [4] | SEAL,40mm ID x 50mm OD x 4mm Thk | KOBDUST |
| C5. | B16T0442D67 | [2] | SHIM,65mm OD x 42mm ID x 1.2mm Thk | KOB |
| C6. | B16T0442D68 | [2] | SHIM,65mm OD x 42mm ID x 1.6mm Thk | KOB |
| C7. | B16T0442D69 | [2] | SHIM,65mm OD x 42mm ID x 2.3mm Thk | KOB |
| . . | PX51B00072F1 | [1] | DOZER GROUP | |
| D1. | ZG91V02000 | [2] | LUBE NIPPLE | KOB |
| D2. | PX51B01081P1 | [1] | COVER | KOB |
| D3. | ZS18C10016 | [2] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| D4. | ZW16X10000 | [2] | WASHER | KOB |
| D5. | ZW26X10000 | [2] | LOCK WASHER | KOB |
