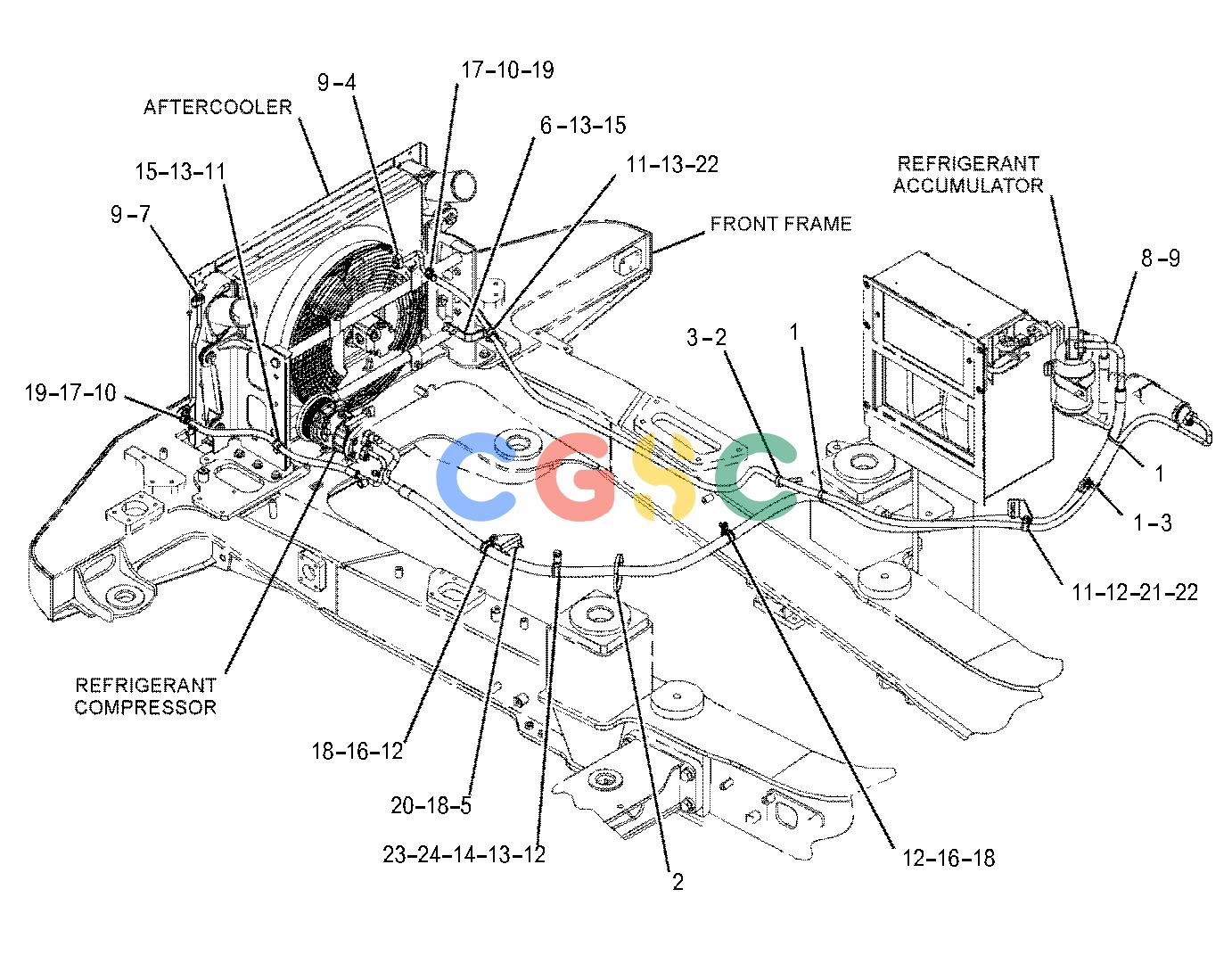

卡特零件查询（730C） 364-4059: LINES GP-AIR CONDITIONER
广数供应链运营团队, 15 02月, 2025，浏览：
767 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [5] | STRAP | |
| 2. | 6U-0456 | [2] | STRAP | |
| 3. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 4. | 449-8795 | [1] | HOSE AS | |
| | 327-0282 | [2] | SEAL-INTEGRAL(1/2-IN) | |
| 5. | 447-0576 | [1] | BRACKET AS | |
| | 159-9540M | [1] | NUT-WELD(M8X1.25-THD) | |
| 6. | 447-0577 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 448-4154 | [1] | HOSE AS | |
| | 327-0282 | [2] | SEAL-INTEGRAL(1/2-IN) | |
| | 3E-4058 | [1] | VALVE AS(REFRIGERANT, HIGH SIDE) | |
| | 180-7180 | [1] | CORE-VALVE | |
| 8. | 448-4155 | [1] | HOSE AS | |
| | 327-0283 | [2] | SEAL-INTEGRAL(3/4-IN) | |
| | 3E-4057 | [1] | VALVE AS(REFRIGERANT, LOW SIDE) | |
| 9. | 178-3336M | [6] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 10. | 3U-2752 | [2] | CLIP(LOOP) | |
| 11. | 3U-2754 | [3] | CLIP(LOOP) | |
| 12. | 3U-2755 | [4] | CLIP(LOOP) | |
| 13. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 15. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 17. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 18. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 20. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 21. | 455-8232 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 22. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 23. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 24. | 3W-9670 | [1] | BOSS | |
| | M | | METRIC PART |
