纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (03-009) - BUCKET INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
965 次

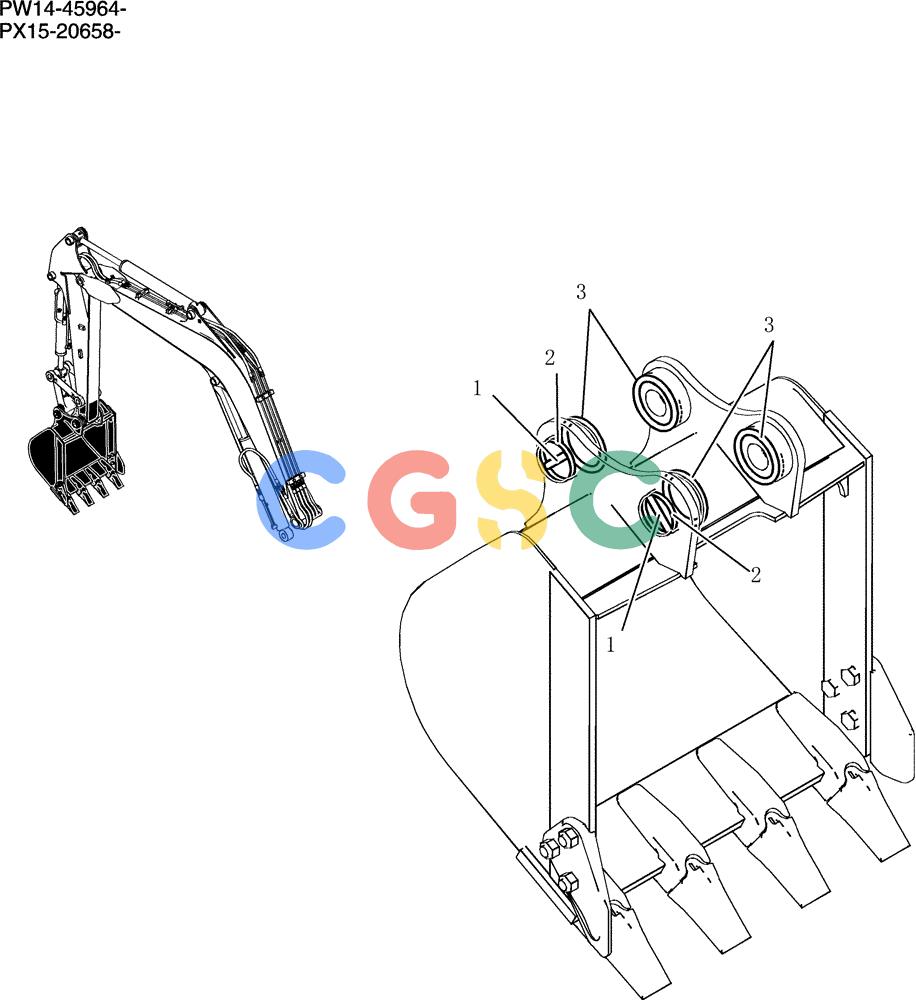

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PX61B01091P1 | [2] | PIN,10mm OD x 58mm L | KOBUsed for Bucket Attach Pin |
| 2. | PX61B01032P1 | [2] | RING | KOBUsed for Bucket Attach Pin |
| 3. | PW61B01074P1 | [4] | O-RING,69.22mm ID x 6.99mm Width | KOB |
| .. | 84532131 | [1] | KIT | BHBEsco Bucket Install |
| 1. | 11108231 | [2] | BOLT,Hex, M10 x 100mm, Cl 10.9 | LEC Superseded by part number: 43253 |
| 2. | 12577221 | [2] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LEC |
| 3. | 72288928 | [2] | SHIM,42mm ID x 65mm OD x 0.50mm Thk | IMO Superseded by part number: PR12B01113P1 |
| 3. | 72281403 | [2] | SHIM,42mm ID x 65mm OD x 0.90mm Thk | IMO |
