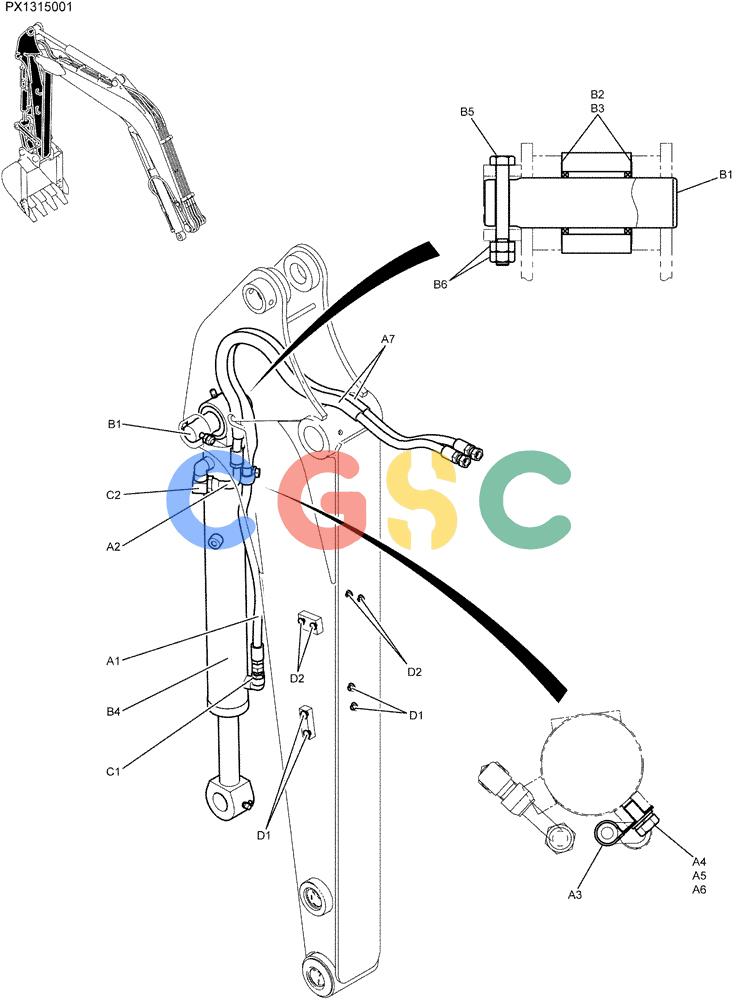

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (03-008) - HYD LINES, ARM 1.32M (4FT 4IN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
994 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX43H00025F1 | [1] | HYD LINES, ARM | |
| A1. | PM42H01042D5 | [1] | HOSE | KOBBucket Cylinder |
| A2. | PX42H01169D2 | [1] | HOSE | KOBBucket Cylinder |
| A3. | ZC46X16011 | [1] | CLIP | KOB |
| A4. | ZW16X10000 | [1] | WASHER | KOB |
| A5. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap |
| A6. | ZW26X10000 | [1] | LOCK WASHER | KOB |
| A7. | 2414Z199D60 | [2] | GUARD | KOB |
| . . | PX12B00108F1 | [1] | CYLINDER INSTAL | |
| B1. | PX12B01206P1 | [1] | PIN,40mm OD x 157mm L | KOB |
| B2. | PR12B01113P1 | [1] | SHIM,0.5mm Thk | KOB |
| B3. | PR02B01123D1 | [1] | SHIM,0.9mm Thk | KOB |
| B4. | PX01V00064F1 | [1] | HYDRAULIC CYLINDER | KOBCYLINDER ASSY, BUCKET |
| B5. | HS18C10080G3 | [1] | BOLT | KOBCAP |
| B6. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| . . | PX43H00024F1 | [1] | HYD LINES, CYLINDER | |
| C1. | HH25S06006G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: 124537A1 |
| C2. | HH35S06006G1 | [1] | 90 ELBOW,90°, 3/8" PF x 3/8" PF x 60mm L | KOB |
| . . | PX43H01011F1 | [1] | CAP ASSY | |
| D1. | PV02B01073D4 | [4] | CAP | KOB Superseded by part number: YN64H01393D1 |
| D2. | PV02B01073D2 | [4] | CAP | KOB |
