神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-020) - COVER ASSY, UNDER (FOR SWISS) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
921 次

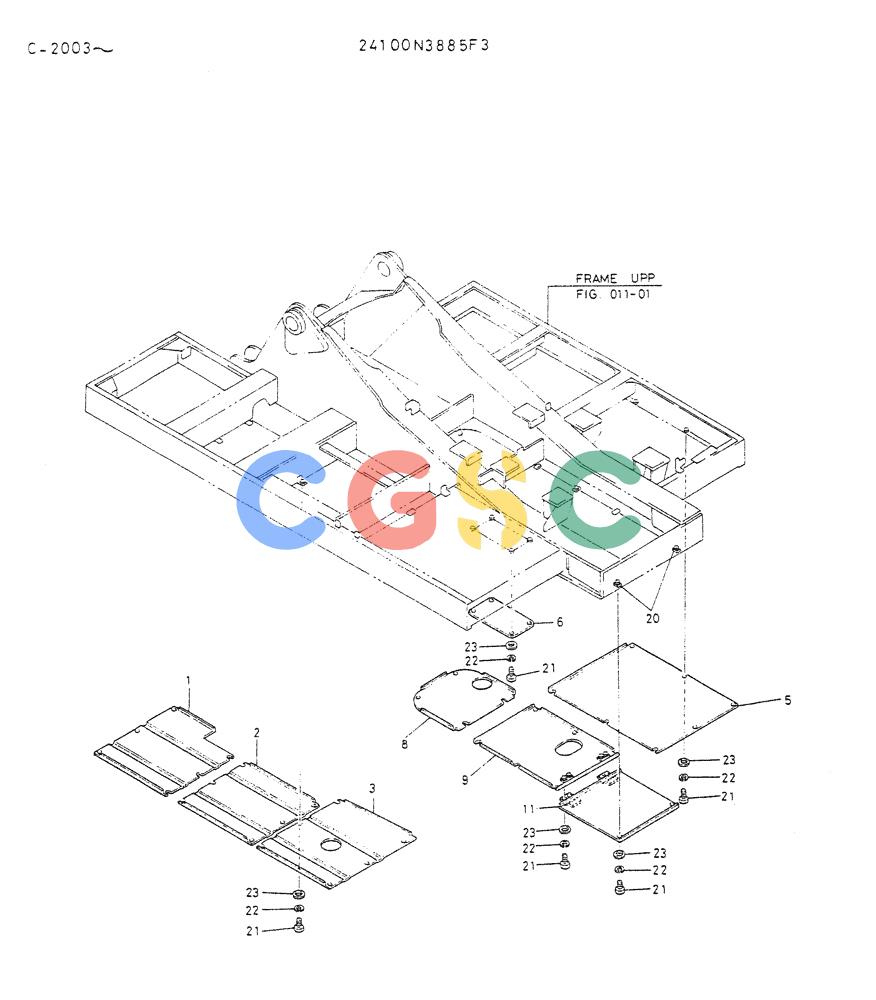

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3885F3 | [1] | COVER ASSY, UNDER (FOR SWISS) | |
| 1. | 2414P4749D1 | [1] | COVER | KOB |
| 2. | 2414P4750D1 | [1] | COVER | KOB |
| 3. | 2414P4751D1 | [1] | COVER | COVER |
| 5. | 2414P4509 | [1] | COVER | KOB |
| 6. | 2414T3343 | [1] | COVER | KOB |
| 8. | 2414P4511 | [1] | COVER | COVER |
| 9. | 2414P4825 | [1] | COVER | COVER |
| 11. | 2414P4827 | [1] | COVER | |
| 20. | 2422P861 | [1] | REWORK, FRAME | |
| 21. | ZS18C10030 | [45] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 22. | ZS26X12000 | [45] | LOCK WASHER | KOB Superseded by part number: ZW26X12000 |
| 23. | 2418T10357 | [45] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
