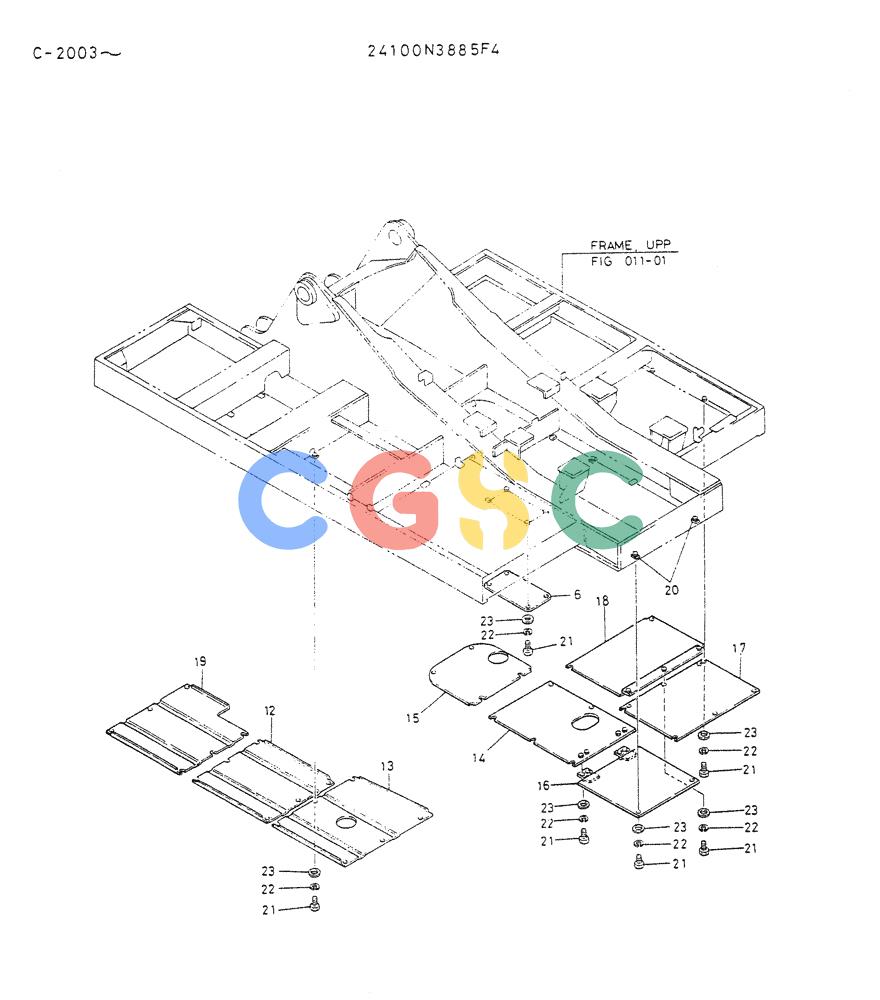

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (02-021) - COVER ASSY, UNDER (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
602 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3665F4 | [1] | COVER ASSY, UNDER (FOR NORWAY) | |
| 6. | 2414T3343 | [1] | COVER | KOB |
| 12. | 2414P4750D2 | [1] | COVER | |
| 13. | 241P4751D2 | [1] | COVER | |
| 14. | 2414P4828 | [1] | COVER | |
| 15. | 2414P4518 | [1] | COVER | |
| 16. | 2414P4829 | [1] | COVER | |
| 17. | 2414P4520 | [1] | COVER | |
| 18. | 2414P4830 | [1] | COVER | |
| 19. | 2414P4749D2 | [1] | COVER | |
| 20. | 2422P861 | [1] | REWORK, FRAME | |
| 21. | ZS18C12030 | [48] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 2. | ZW26X12000 | [48] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 23. | 2418T10357 | [48] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
