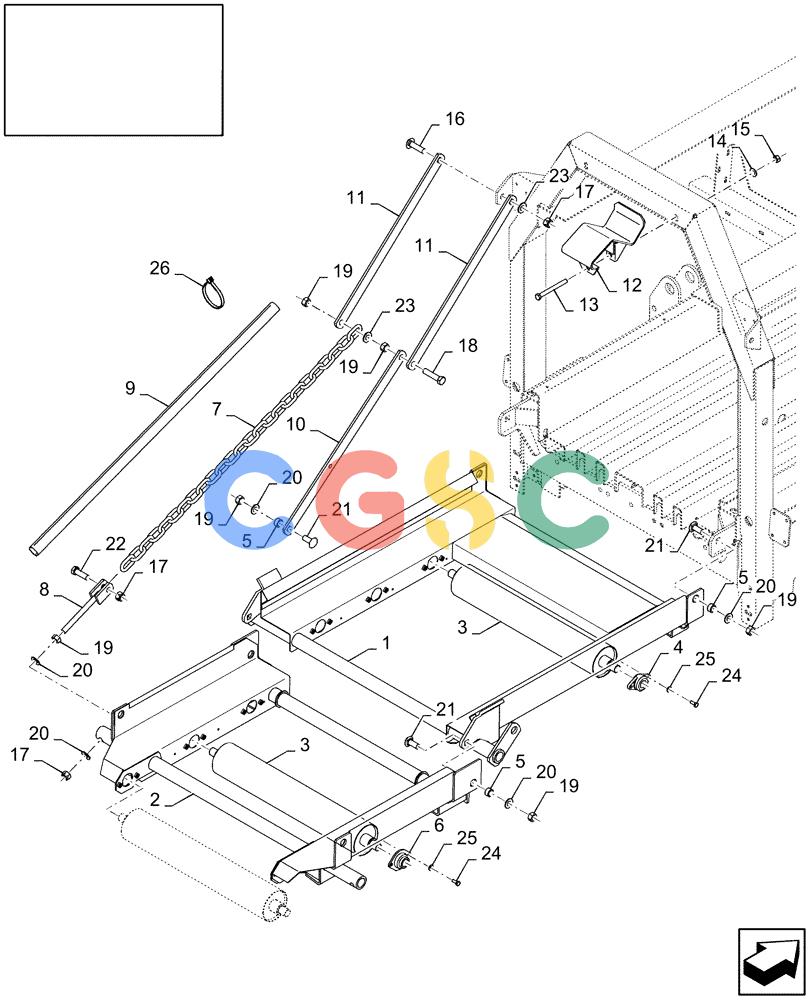

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.87485072[02]) - DIA : ROLLER BALE CHUTE - SEASON 2009 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
394 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87485072
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
87633051
|
[1] |
FRAME
|
ZED
|
| 2. |
87723507
|
[1] |
FRAME
|
ZED
|
| 3. |
84032863
|
[5] |
ROLLER,108mm OD x 1127mm L
|
ZED
|
| 4. |
9839087
|
[8] |
NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk
|
ZED
|
| 5. |
9837933
|
[6] |
SPACER,17mm ID x 25.4mm OD x 12.5mm L
|
ZED
|
| 6. |
9837806
|
[2] |
FLANGED BEARING,25mm ID
|
ZED
|
| 7. |
84074138
|
[2] |
CHAIN,1190mm L
|
ZED
|
| 8. |
9512549
|
[2] |
ROD
|
ZED
|
| 9. |
80292267
|
[1] |
BAND
|
ZED
L= 2.4 M
|
| 10. |
84074054
|
[2] |
SUPPORT
|
ZED
|
| 11. |
84074051
|
[4] |
SUPPORT
|
ZED
|
| 12. |
84130683
|
[2] |
SUPPORT
|
ZED
|
| 13. |
309308
|
[2] |
BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8
|
NH
|
| 14. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 16. |
120046
|
[2] |
CARRIAGE BOLT,M16 x 60mm, Cl 8.8
|
ZED
Superseded by part number: 87552612
|
| 17. |
86000441
|
[6] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 18. |
320246
|
[2] |
BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd
|
NH
|
| 19. |
100020
|
[12] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 20. |
140048
|
[10] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 21. |
86595832
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 22. |
120090
|
[2] |
BOLT,Hex, M16 x 50mm, Cl 8.8
|
NH
|
| 23. |
378246
|
[4] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 24. |
120104
|
[20] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 25. |
322358
|
[20] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 26. |
396718
|
[4] |
STRAP
|
ZED
Superseded by part number: 529070
|
