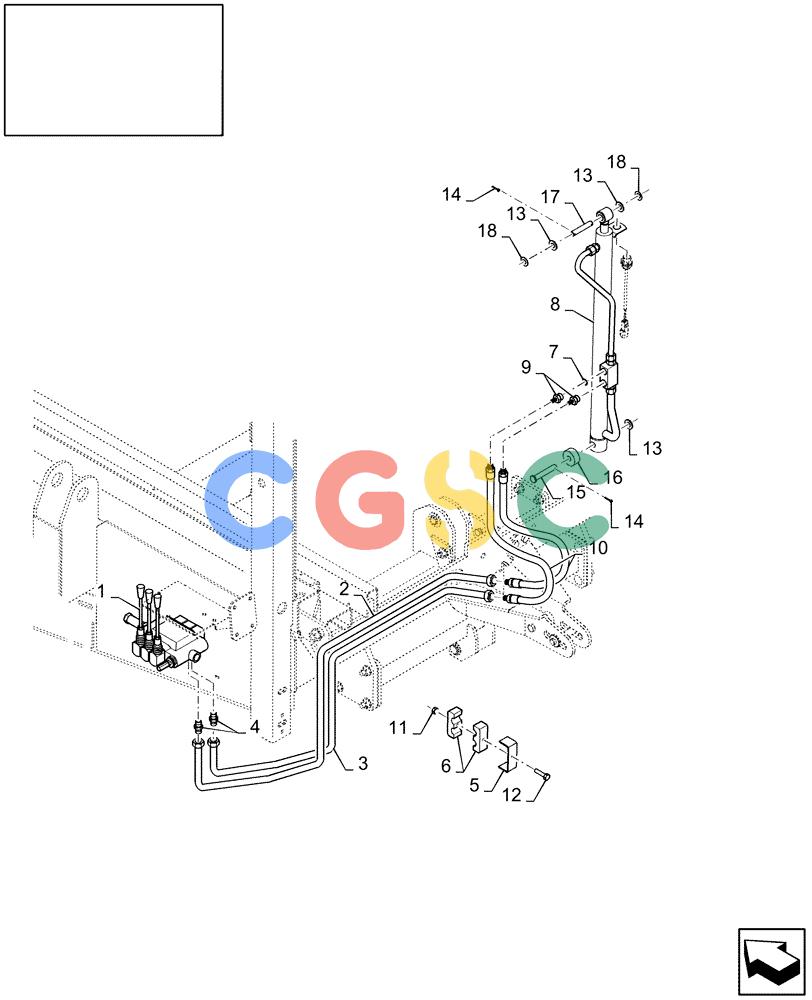

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.87485072[04]) - DIA : ROLLER BALE CHUTE - SEASON 2009 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87485072
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
87475047
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 84568220
|
| 2. |
87492081
|
[1] |
HYD TUBE,8 mm OD x 718, 183 mm L
|
ZED
|
| 3. |
87492083
|
[1] |
HYD TUBE,8 mm OD x 686, 186 mm L
|
ZED
|
| 4. |
84043514
|
[2] |
HYD CONNECTOR
|
ZED
|
| 5. |
431941
|
[2] |
SUPPORT
|
DUB
|
| 6. |
430357
|
[4] |
CLAMP
|
DUB
|
| 7. |
423996
|
[1] |
ORIFICE
|
ZED
|
| 8. |
84449279
|
[1] |
HYDRAULIC CYLINDER
|
ZED
Superseded by part number: 84272153
|
| 8. |
84272153R
|
[1] |
REMAN-HYD CYLINDER
|
ZED
|
| 8. |
84272153C
|
[1] |
CORE-HYD CYLINDER
|
ZED
Return Number
|
| 9. |
87343788
|
[2] |
FITTING
|
CAS
|
| 10. |
84078517
|
[2] |
FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1
|
ZED
|
| 11. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 12. |
43118
|
[2] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 13. |
378246
|
[3] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 14. |
130007
|
[3] |
COTTER PIN,M4 x 25
|
NH
Superseded by part number: 83903970
|
| 15. |
84078725
|
[1] |
CLEVIS PIN,16mm OD x 100mm L
|
ZED
|
| 16. |
84400935
|
[1] |
ROLLER
|
ZED
|
| 17. |
356015
|
[1] |
SPINDLE
|
ZED
|
| 18. |
84814924
|
[2] |
WASHER,16.3mm ID x 31.5mm OD x 1.25mm Thk
|
ZED
|
