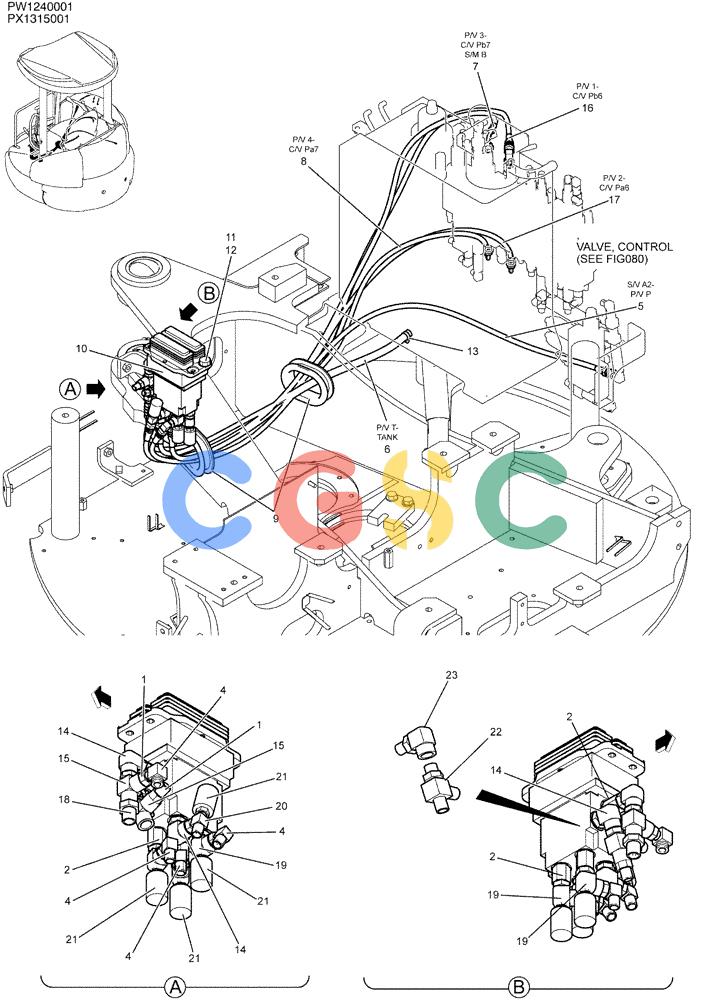

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-009) - CONTROL LINES, PROPEL (NIBBLER & BREAKER & TRAVEL ALARM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW62H00010F1 | [1] | CONTROL LINES, PROPEL | |
| 2. | 2444Z2525 | [3] | HYD CONNECTOR | KOB |
| 4. | HH35S04004G1 | [4] | 90 ELBOW | KOB |
| 5. | HX24L04145DX | [1] | HOSE,6.3mm ID x 1450mm L | KOB |
| 6. | PW68H01023DA | [1] | HOSE,9.5mm ID x 800mm L | KOB |
| 7. | HX33L03150DX | [1] | HOSE | KOB |
| 8. | HX33L03125DX | [1] | HOSE,4.8mm ID x 1250mm L | KOB |
| 9. | PW62H01001P1 | [2] | GROMMET | KOB |
| 10. | PM30V00019F1 | [1] | PILOT VALVE | KOBASSY Superseded by part number: PM30V00019F4 |
| 11. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBCAP |
| 12. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 13. | ZC16X01800 | [1] | CLIP | KOB |
| 14. | 2444Z2894 | [2] | 90 ELBOW | KOB |
| 15. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| 17. | HX33L03135DX | [1] | HOSE,4.8mm ID x 1350mm L | KOB |
| 18. | HH25S06004G1 | [1] | HYD CONNECTOR | KOB Superseded by part number: HH25S06004G3 |
| 19. | 2444Z4231 | [3] | ELBOW | KOB |
| 20. | PV62H01001P1 | [1] | ELBOW | KOB |
| 21. | GB50S00049F2 | [4] | SWITCH | KOBPRESS (L.P.) |
| 22. | HH55L04004G1 | [1] | TEE | KOB |
| 23. | PH62H01003P1 | [1] | ELBOW | KOB Superseded by part number: 72283832 |
