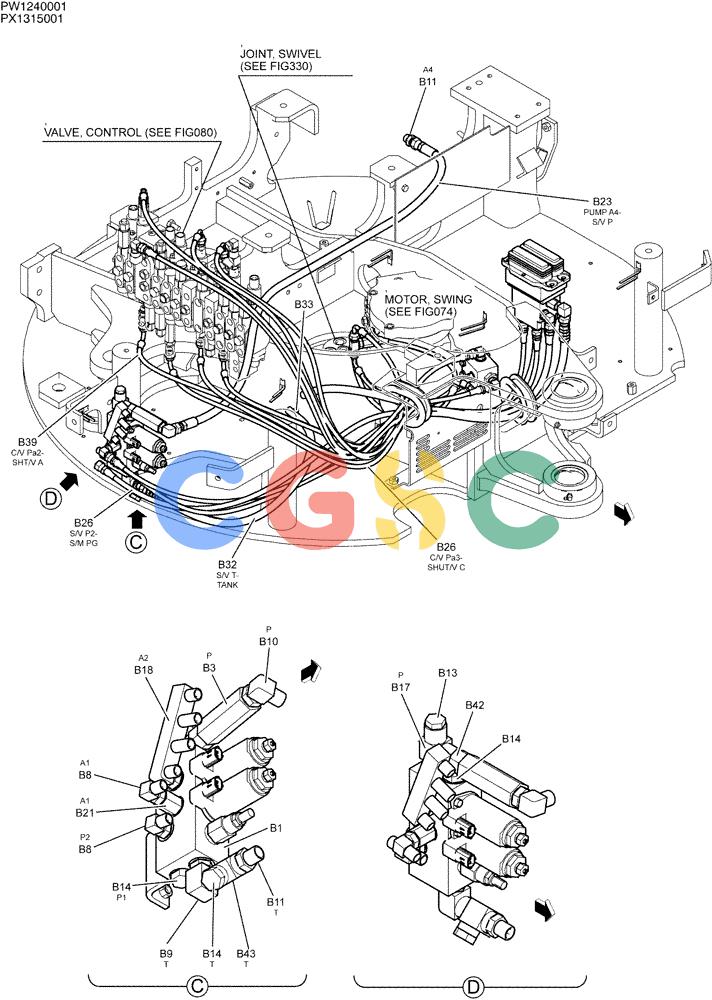

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-008[02]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| B1. | PX35V00003F1 | [1] | VALVE | KOBASSY, SOLENOID |
| B3. | YN50V00020F1 | [1] | HYDRAULIC OIL FILTER | SMFILTER ASSY, INLINE |
| B8. | HH35S04004G1 | [2] | 90 ELBOW | KOB |
| B9. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| B10. | HH35S06006G1 | [1] | 90 ELBOW,90°, 3/8" PF x 3/8" PF x 60mm L | KOB |
| B11. | HH25S06006G1 | [2] | HYD CONNECTOR | KOB Superseded by part number: 124537A1 |
| B13. | ZE72X04000 | [1] | PLUG | KOB |
| B14. | ZE72X06000 | [3] | PLUG | KOB |
| B17. | PW64H01011P1 | [1] | TEE | KOB |
| B18. | PH64H01057P1 | [1] | CONNECTION | KOB |
| B21. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| B23. | HX25L06135DY | [1] | HOSE,9.5mm ID x 1350mm L | KOB |
| B26. | HX33L03110DX | [2] | HOSE,4.8mm ID x 1100mm L | KOB |
| B32. | PW68H01023D9 | [1] | HOSE,9.5mm ID x 620mm L | KOB |
| B33. | ZC16X01800 | [1] | CLIP | KOB |
| B39. | HX33L03120DX | [1] | HOSE,4.8mm ID x 1200mm L | KOB |
| B42. | 2444Z3326 | [1] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 2444Z3744 |
| B43. | HH55Q06006G1 | [1] | TEE | KOB |
