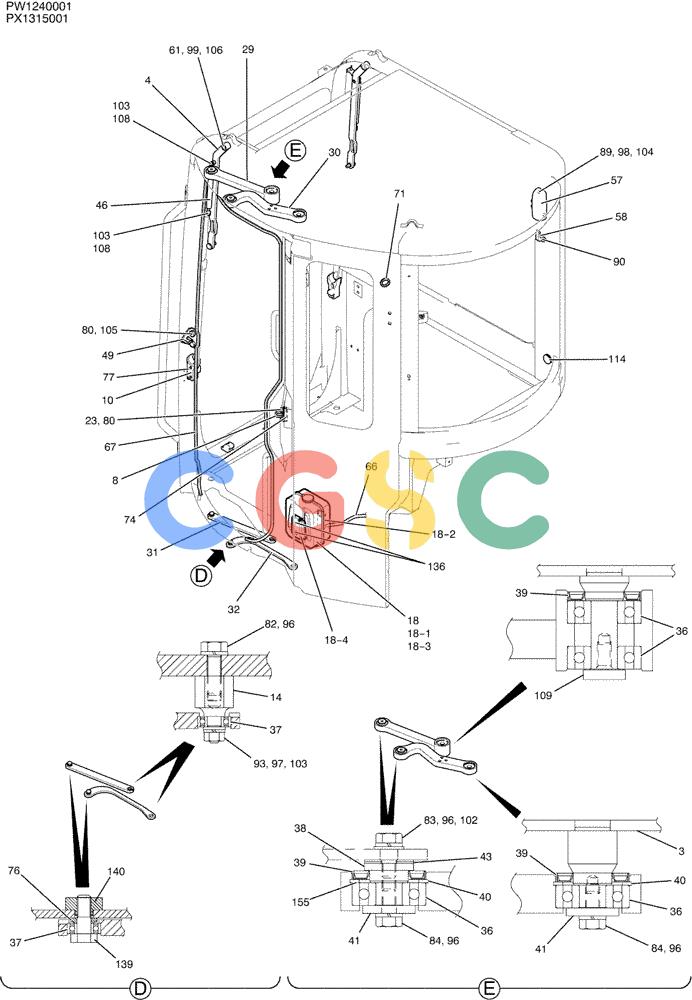

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-012[03]) - CAB ASSY (COOLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
723 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | PW02C01145P2 | [1] | LINK | KOBLINK |
| 8. | YT51C01021P1 | [1] | HOOK | KOB |
| 10. | PW02C01116P1 | [1] | STOP | KOB |
| 14. | PW02C01301P1 | [2] | PIN | KOB |
| 18. | PE54C00002F1 | [1] | TANK | KOBASSY, WASHER |
| 18-1. | PE54C00002S001 | [1] | TANK | KOBASSY, WASHER Superseded by part number: PE54C00002F1 |
| 18-2. | PE54C00002S002 | [1] | ELECTRIC MOTOR | KOBASSY |
| 18-3. | PE54C00002S003 | [1] | BRACKET | KOB |
| 18-4. | PE54C00002S004 | [1] | BRACKET | KOB |
| 23. | YT51C01077D1 | [1] | SPACER | KOB |
| 29. | PM02C01459P1 | [1] | LINK | KOB |
| 30. | PM02C01419P1 | [1] | LINK | KOB |
| 31. | PM51C01061P1 | [1] | LINK | KOB |
| 32. | PW51C01002P1 | [1] | LINK | KOB |
| 36. | PM51C01012P1 | [5] | BEARING,15mm ID x 42mm OD x 13mm W | KOB |
| 37. | PM51C01014P1 | [4] | BEARING,8mm ID x 19mm OD x 6mm W | KOB |
| 38. | PM02C01423P1 | [2] | PIN | KOB |
| 39. | PM02C01430D1 | [4] | SEAL | KOB |
| 40. | ZR26X04200 | [3] | RETAINER | KOBRING, RETAINING |
| 41. | PM02C01425P1 | [3] | WASHER | KOB |
| 43. | PM02C01424P1 | [4] | SHIM,1.0mm Thk | KOB |
| 46. | PM02C01133P2 | [1] | SPRING | KOB Superseded by part number: PM02C01133P3 |
| 49. | PM02C01440P1 | [1] | STRIKER PLATE | KOBSTRIKER |
| 57. | PM80S00006P1 | [1] | LIGHT | KOBROOM |
| 58. | YR02C01578P1 | [1] | HOOK | KOB |
| 61. | 2405U104D012020 | [1] | BUSHING | KOB |
| 66. | YT02C01126DA | [1] | TUBE | KOB Superseded by part number: YT02C01126DB |
| 67. | YR02C01524P1 | [1] | SEAL | KOB |
| 71. | 2420R372D16 | [1] | GROMMET | KOB |
| 74. | PM02C01385P1 | [1] | BLOCK | KOBTAPPED |
| 76. | PM02C01426P1 | [2] | COLLAR | KOB |
| 77. | ZM46C05025 | [2] | BOLT | KOB |
| 80. | ZS68C10025 | [4] | CAPSCREW | KOBSCREW CAP |
| 82. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| 83. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOB |
| 84. | ZS18C08016 | [3] | SCREW,Hex, M8 x 16mm | KOB |
| 89. | ZS31C04016 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 16mm | KOBCAP |
| 90. | ZS31C04012 | [2] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOB |
| 93. | ZN18C06005 | [4] | NUT | KOB |
| 96. | ZW26X08000 | [7] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 97. | ZW26X06000 | [4] | LOCK WASHER | KOB |
| 98. | ZW26X04000 | [2] | WASHER | KOB |
| 99. | ZW16P12000 | [1] | WASHER | KOB |
| 102. | ZW16X08000 | [2] | WASHER | KOB |
| 103. | ZW16X06000 | [5] | WASHER | KOB Superseded by part number: 86588450 |
| 104. | ZW16P04000 | [2] | WASHER | KOB |
| 105. | PM02C01353P1 | [1] | WASHER | KOB |
| 106. | ZR36X01000 | [1] | RING | KOBRETAINING |
| 108. | ZR36X00500 | [2] | RING | KOBRETAINING Superseded by part number: 800-436 |
| 109. | PM02C01461P1 | [1] | BOLT | KOB |
| 114. | PM21C01146P1 | [1] | GROMMET | KOB |
| 136. | ZM46C06016 | [2] | SCREW | KOB |
| 139. | PW02C01267P1 | [2] | BOLT | KOB |
| 140. | PW02C01268P1 | [2] | NUT | KOB |
| 155. | PM02C01556P1 | [1] | SHIM | KOBWASHER |
