纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-012[04]) - CAB ASSY (COOLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
586 次

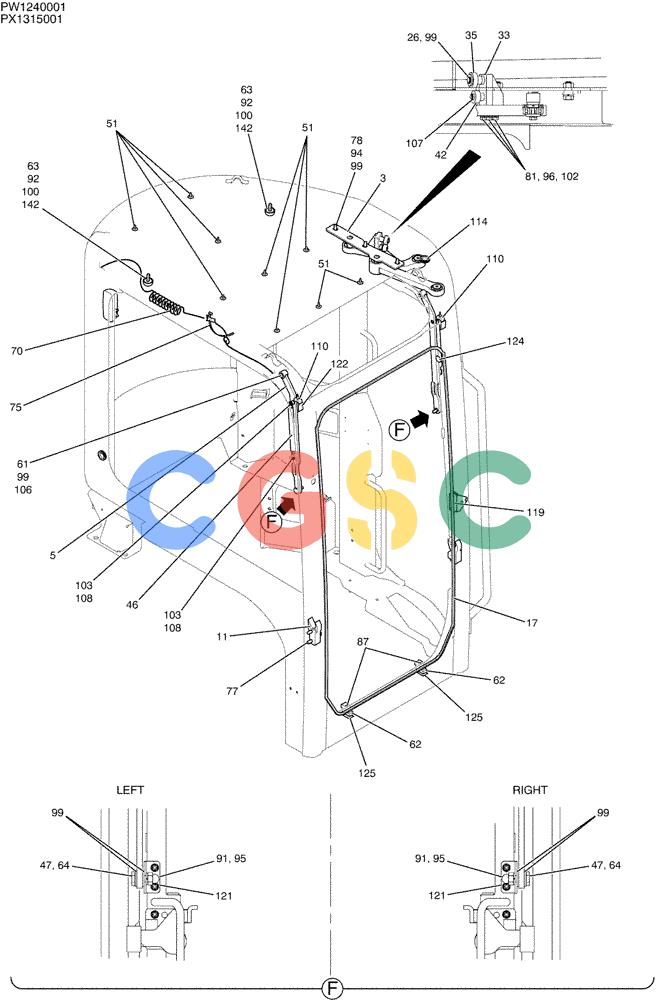

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | PW02C01071P1 | [1] | BRACKET | KOB |
| 5. | PW02C01144P2 | [1] | LINK | KOBLINK |
| 11. | PW02C01115P1 | [1] | STOP | KOB |
| 17. | PW02C01185D1 | [1] | SEAL,3900mm L | KOB |
| 26. | ZR16X01200 | [1] | RING | KOBRETAINING |
| 33. | PM02C01477P1 | [1] | LINK | KOB |
| 35. | PM02C01434P1 | [1] | BEARING,12mm ID x 32mm OD x 10mm W | KOB |
| 42. | YT50C01024P1 | [1] | ROLLER | KOB |
| 46. | PM02C01133P2 | [1] | SPRING | KOB Superseded by part number: PM02C01133P3 |
| 47. | PM02C01257P1 | [2] | SPECIAL PIN | KOB |
| 51. | YT02C01324P1 | [9] | CLIP | KOB |
| 61. | 2405U104D012020 | [1] | BUSHING | KOB |
| 62. | PM02C01356P2 | [2] | STOP | KOB |
| 63. | YT02C01066P1 | [2] | STOP | KOB |
| 64. | 2405U104D012008 | [2] | BUSHING | KOB |
| 70. | YT02C01104P1 | [1] | HARNESS | KOB Superseded by part number: YT02C01104P3 |
| 75. | YN03E01001D5 | [1] | CLIP | KOB |
| 77. | ZM46C05025 | [2] | BOLT | KOB |
| 78. | ZS18C12030 | [3] | SCREW,Hex, M12 x 30mm | KOBCAP |
| 81. | ZS18C08035 | [3] | SCREW,Hex, M8 x 35mm | KOBCAP |
| 87. | ZS31C05025 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 25mm | KOBMACHINE |
| 91. | ZN46C10018 | [2] | NUT | KOB |
| 92. | ZN18F10008 | [2] | NUT | KOB |
| 94. | ZW26X12000 | [3] | WASHER | KOB |
| 95. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 96. | ZW26X08000 | [3] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 99. | ZW16P12000 | [11] | WASHER | KOB |
| 100. | ZW16K10000 | [4] | WASHER | KOB |
| 102. | ZW16X08000 | [3] | WASHER | KOB |
| 103. | ZW16X06000 | [3] | WASHER | KOB Superseded by part number: 86588450 |
| 106. | ZR36X01000 | [1] | RING | KOBRETAINING |
| 107. | ZR36X00700 | [1] | RING | KOBRETAINING |
| 108. | ZR36X00500 | [2] | RING | KOBRETAINING Superseded by part number: 800-436 |
| 110. | PM02C01396P1 | [2] | STOP | KOB |
| 114. | PM21C01146P1 | [1] | GROMMET | KOB |
| 119. | PM02C01212P1 | [1] | BLOCK | KOBTAPPED |
| 121. | PM02C01504D1 | [3] | SHIM,0.5mm Thk | KOB |
| 124. | YT02C01567P2 | [1] | PLATE | |
| 125. | PM02C01505P1 | [4] | SHIM,1.0mm Thk | KOB |
| 142. | 2418T5373C2 | [2] | WASHER | KOB Superseded by part number: 2418T12346 |
