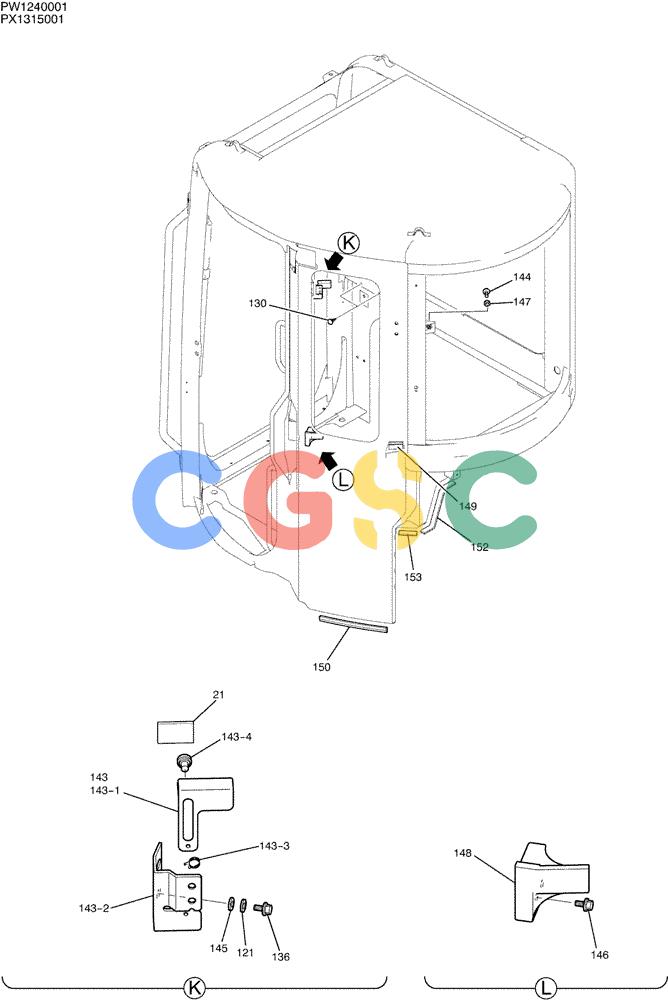

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-012[05]) - CAB ASSY (COOLER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
439 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 21. | PA33H01057P1 | [1] | RUBBER | KOB |
| 121. | PM02C01504D1 | [1] | SHIM,0.5mm Thk | KOB |
| 130. | 2420Z1227D2 | [2] | SCREW | KOBMACHINE SCREW |
| 136. | ZM46C06016 | [2] | SCREW | KOBSEMS-BOLT |
| 143. | PW02C01265F1 | [1] | BRACKET | KOBASSY |
| 143-1. | PW02C01260P1 | [1] | PLATE | KOB |
| 143-2. | PW02C01261P1 | [1] | PLATE | KOB |
| 143-3. | PW02C01262P1 | [1] | SPRING | KOB |
| 143-4. | PM02C01346P1 | [2] | PIN | KOB |
| 144. | YR02C01503P1 | [1] | STOP | KOB |
| 145. | PM02C01504D2 | [2] | SHIM,1.0mm Thk | KOB |
| 146. | ZM46C06030 | [2] | BOLT | KOB |
| 147. | ZN17C10006 | [1] | NUT | KOB Superseded by part number: ZN18C10006 |
| 148. | PW02C01239P1 | [1] | HOLDER | KOB |
| 149. | YT02C01081D1 | [1] | SEAL | KOB |
| 150. | PW02C01342D1 | [1] | WEATHERSTRIP | KOB |
| 152. | PF21C01175D2 | [1] | RUBBER | KOB |
| 153. | PF21C01175D3 | [1] | RUBBER | KOB |
