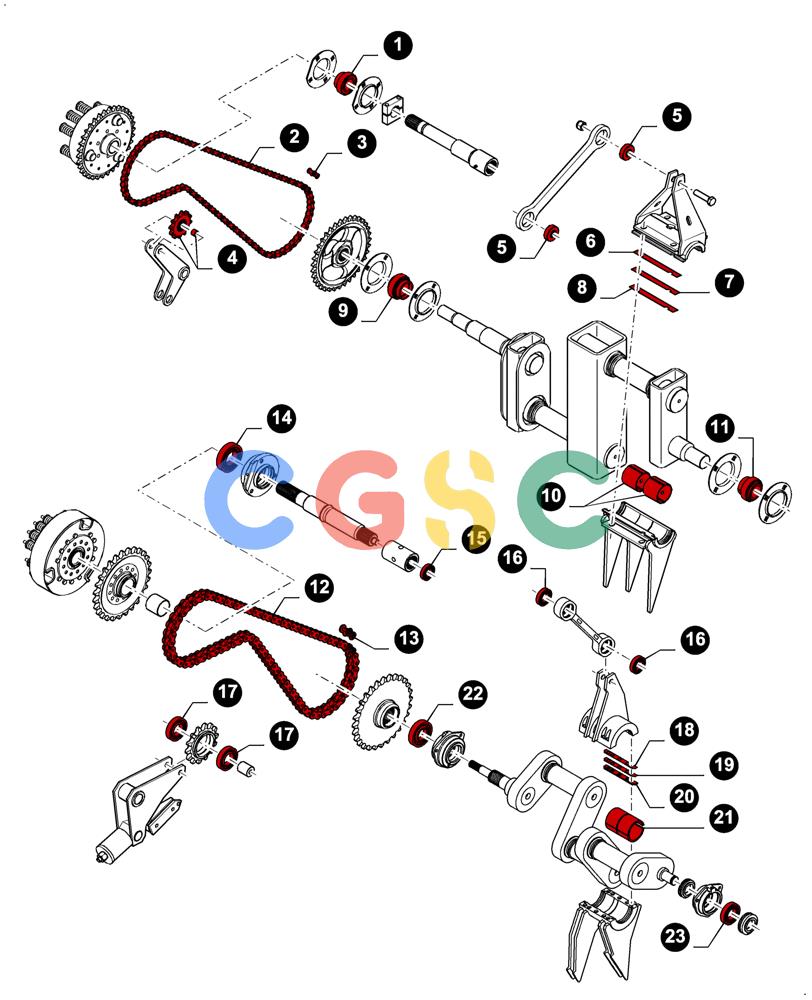

凯斯零件查询(LB433S) - BIG RECTANGULAR BALER (9/08-12/12) (00.00LB029[01]) - MAINTENANCE PARTS, PACKER DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9839347
|
[1] |
BEARING ASSY,45mm ID x 85mm OD x 22mm W
|
ZED
|
| 2. |
9839358
|
[1] |
CHAIN,Roller, 106 Links x 25.4mm = 2692.4mm
|
ZED
(3)
|
| 3. |
410402
|
[1] |
LINK,Chain, 25.4mm Pitch
|
ZED
|
| 4. |
9839348
|
[1] |
IDLER GEAR,12T
|
ZED
|
| 5. |
9839315
|
[1] |
BALL BEARING,16mm ID x 49.21mm OD x 20.65mm W
|
ZED
|
| 6. |
84801731
|
[1] |
SHIM
|
ZED
Thk.: 1 mm
|
| 7. |
9839322
|
[1] |
SHIM
|
ZED
Thk.: 0.25 mm
|
| 8. |
9839323
|
[1] |
SHIM
|
ZED
Thk.: 0.1 mm
|
| 9. |
722003
|
[1] |
BALL BEARING,55mm ID x 100mm OD x 25mm W
|
ZED
Superseded by part number: 47577177
|
| 10. |
84801730
|
[1] |
HALF-BUSHING
|
ZED
|
| 11. |
385424
|
[1] |
BALL BEARING,45 mm ID x 85 mm OD x 56.3 mm
|
ZED
|
| 12. |
84320124
|
[1] |
CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100
|
ZED
(13)
|
| 13. |
84320517
|
[1] |
CONNECTING LINK
|
ZED
|
| 14. |
84074234
|
[1] |
BEARING, ROLLER, CYL,60mm ID x 110mm OD x 28mm W
|
ZED
Superseded by part number: 428162
|
| 15. |
84004940
|
[1] |
SPHERICAL BEARING,20mm ID x 35mm OD x 16mm W
|
ZED
|
| 16. |
84039251
|
[6] |
SPHERICAL BEARING,30mm ID x 62mm OD x 20mm W
|
ZED
|
| 17. |
210049
|
[2] |
BALL BEARING,40mm ID x 90mm OD x 23mm W
|
NH
|
| 18. |
84039432
|
[1] |
SHIM
|
ZED
Thk.: 0.1 mm
|
| 18. |
84039433
|
[1] |
SHIM
|
ZED
Thk.: 0.2 mm
|
| 19. |
87324678
|
[1] |
SHIM
|
ZED
Thk.: 0.8 mm
|
| 20. |
87324637
|
[1] |
SHIM
|
ZED
Thk.: 6.0 mm
|
| 21. |
87325607
|
[6] |
SLEEVE
|
ZED
|
| 22. |
84074235
|
[1] |
SPHERICAL BEARING,75mm ID x 130mm OD x 31mm W
|
ZED
|
| 23. |
323327
|
[1] |
SPHERICAL BEARING,40mm ID x 80mm OD x 23mm W
|
ZED
|
