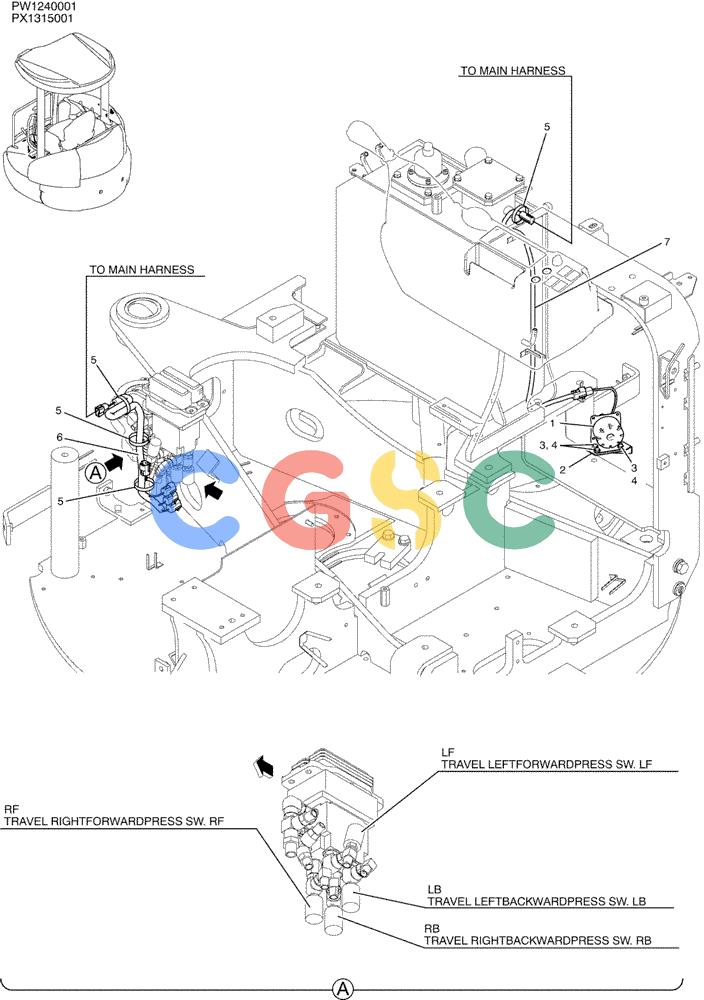

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-022) - ALARM ASSEMBLY (TRAVEL ALARM) (PW53E00006F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
951 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW53E00006F1 | [1] | ALARM | KOBALARM ASSY |
| 1. | PW53S00002F1 | [1] | REVERSE ALARM,DC12V, 0.3 Amp | CASALARM ASSY |
| 2. | PH53E01006P1 | [1] | PLATE | KOB |
| 3. | ZM61C05012 | [4] | BOLT | KOBSEMS-BOLT |
| 4. | ZN18C05004 | [4] | NUT | KOB |
| 5. | PY01P01043D5 | [4] | CABLE TIE,301mm L | KOB |
| 6. | PW13E01069P1 | [1] | HARNESS | KOB |
| 7. | PH13E01078P1 | [1] | HARNESS | KOB |
