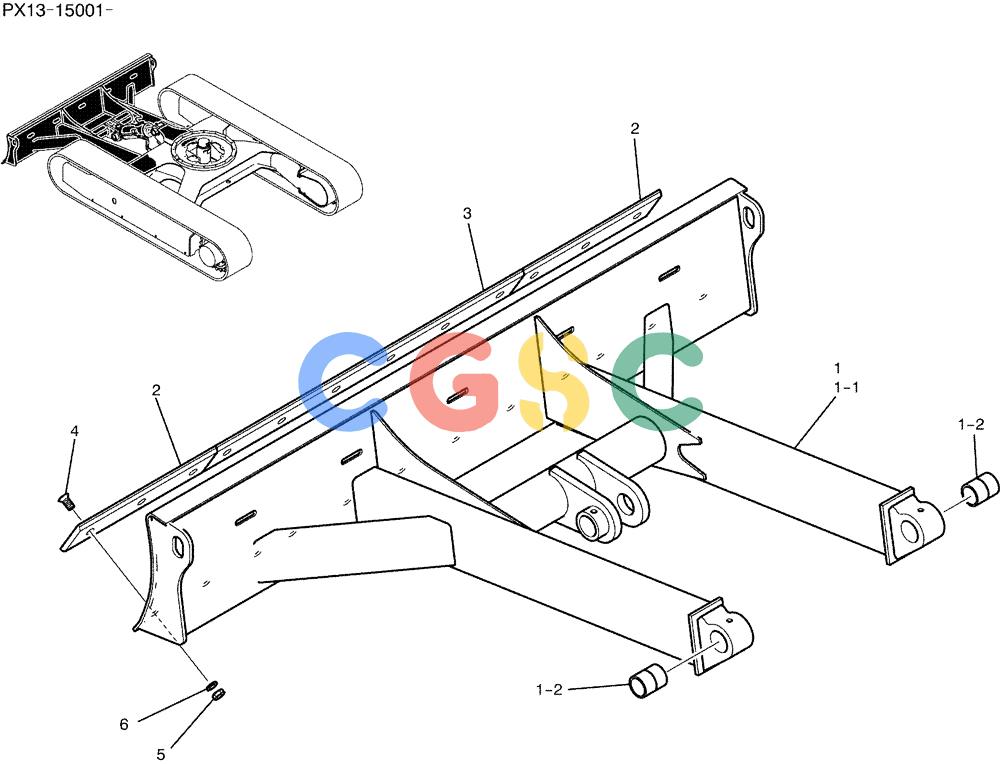

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (05-023) - DOZER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX51B00080F1 | [1] | DOZER ASSY | |
| 1. | PX51B00081F1 | [1] | DOZER ASSY | |
| 1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONDOZER |
| 1-2. | PW51B01039P1 | [2] | BUSHING,40mm ID x 50mm OD x 50mm L | KOB |
| 2. | PV69B01006P1 | [2] | CUTTING EDGE | KOB |
| 3. | PX69B01001P1 | [1] | CUTTING EDGE | KOBEDGE CUTTING |
| 4. | PV51B01064P1 | [12] | BOLT | KOB |
| 5. | PV51B01065P1 | [12] | NUT | KOB |
| 6. | ZW16H12000 | [12] | WASHER | KOB |
