神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (06-012) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
334 次

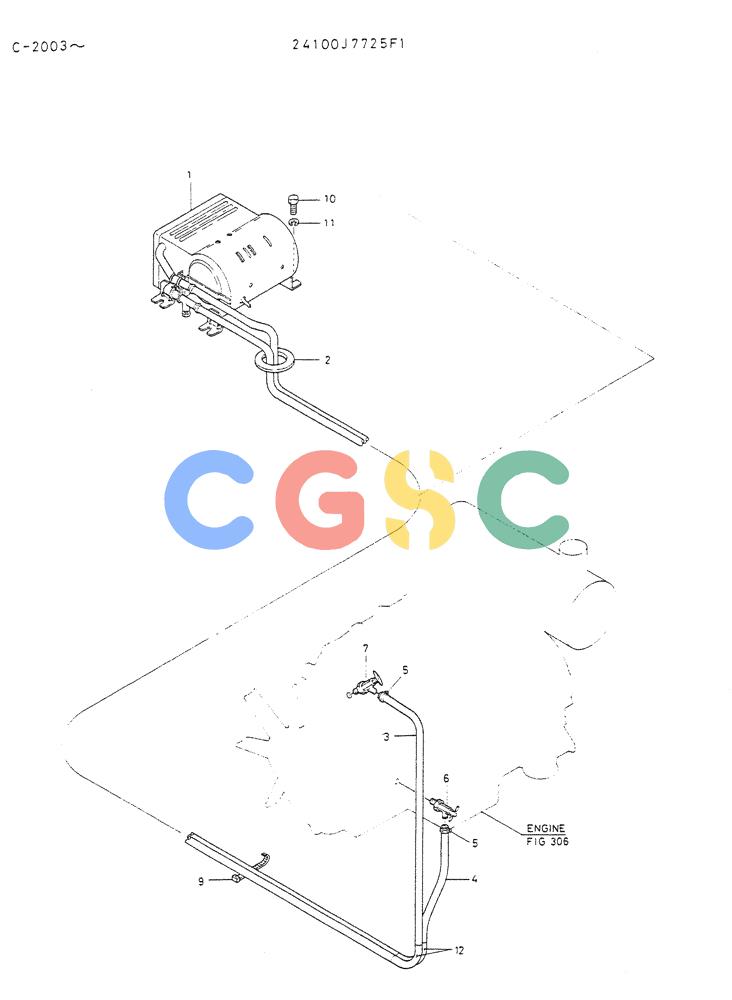

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7725F1 | [1] | HEATER ASSY | |
| 1. | 2479U293 | [1] | HEATER, CAR SEE FIG 06-015 | HEATER, CAR SEE FIG 06-015 |
| 2. | 2420Z699 | [1] | GROMMET | KOB |
| 3. | R18T0026D23 | [1] | FLEXIBLE HOSE | KOBID 12 x OD 22 x 4500mm |
| 4. | R18T0026D29 | [1] | HOSE,12mm ID x 4150mm L | KOB |
| 5. | R16T0238D1 | [4] | CLIP | KOB |
| 6. | R44T0180 | [1] | COCK | KOB |
| 7. | R44T0201 | [1] | HYD CONNECTOR | KOB Superseded by part number: 113700-1381 |
| 9. | 2432Z290 | [8] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 10. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 12. | 2414Z199D025 | [1] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
