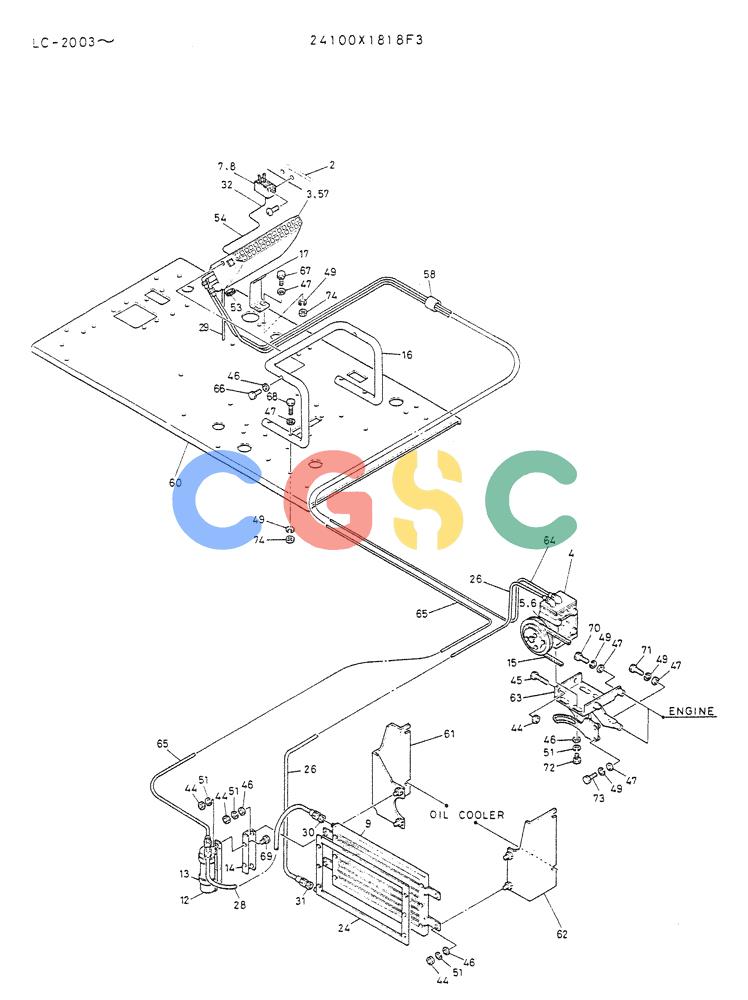

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (06-014) - COOLER ASSY, CAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
425 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1818F3 | [1] | COOLER ASSY CAB | |
| 2. | 2427P1798 | [1] | | |
| 3. | 24100U323 | [1] | UNIT, COOLING UNIT COOLING | UNIT, COOLING UNIT COOLING |
| 4. | 2450U213 | [1] | COMPRESSOR COMPRESSOR | COMPRESSOR COMPRESSOR |
| 5. | 2415U205 | [1] | | |
| 6. | 2418Z688 | [3] | WASHER | |
| 7. | 241000324 | [1] | CONTROL ASSY CAB | |
| 8. | 241000325 | [1] | BRACKET | |
| 9. | 24840154 | [1] | | |
| 12. | 24278420 | [1] | | |
| 13. | 24116Z323 | [1] | BRACKET | |
| 14. | 2416T12551 | [1] | BRACKET | |
| 15. | R06P0004D5 | [1] | BELT | KOBV-BELT |
| 16. | 2416T10791 | [1] | BRACKET | |
| 17. | 2416T10790 | [1] | BRACKET | |
| 24. | 2416T10841 | [1] | BRACKET | |
| 26. | 2444P879 | [1] | HOSE | |
| 28. | 2444P881 | [1] | HOSE | |
| 29. | 2444Z2203 | [1] | HOSE | |
| 30. | 244422204 | [1] | JOINT | |
| 31. | 2444Z2205 | [1] | JOINT | |
| 32. | ZS32T60014 | [2] | CAPSCREW | |
| 44. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 45. | 2420Z780 | [2] | KEY | KOBLOCK CAPSCREW |
| 46. | ZW16X08000 | [10] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 47. | ZW16X10000 | [11] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 49. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 51. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 53. | 2420Z699 | [1] | GROMMET | KOB |
| 54. | 2479Z846 | [1] | HARNESS | |
| 57. | 2416Z322 | [1] | INSULATOR | |
| 58. | 2405Z147 | [6] | BUSHING | |
| 60. | 2422T469 | [1] | REWORK PLATE | |
| 61. | 2416T14869 | [1] | BRACKET | |
| 62. | 2416T14868 | [1] | BRACKET | |
| 63. | 2416N3754 | [1] | BRACKET | BRACKET |
| 64. | 2444Z2647D1 | [1] | HOSE | |
| 65. | 2444Z2648D1 | [1] | HOSE | |
| 66. | ZS18C08050 | [2] | SCREW,Hex, M8 x 50mm | KOBM08x1.25x50mm |
| 67. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 68. | ZS18C10055 | [4] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| 69. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 70. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| 71. | ZS18C10070 | [1] | SCREW,Hex, M10 x 70mm | KOBM10x1.50x70mm |
| 72. | ZS18C08035 | [4] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| 73. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 74. | ZN18C10008 | [6] | NUT | KOBM10x1.50mm |
