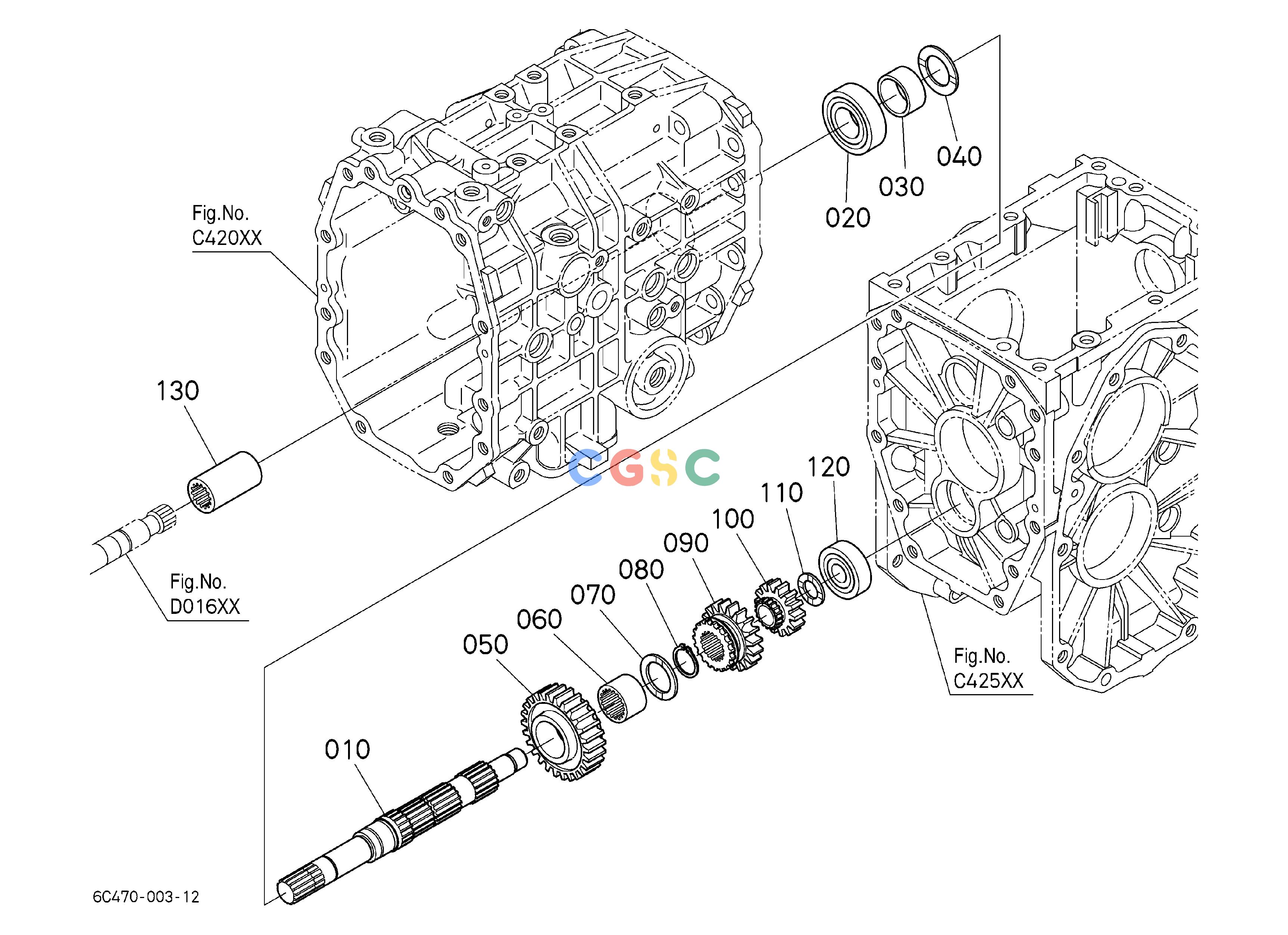

久保田零件查询D10803 RANGE GEAR SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20014710
|
[1] |
SHAFT
|
1.2760(lbs); 0.580
|
| 020. |
0810106205
|
[1] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 020. |
6C54014780
|
[1] |
BEARING,BALL(6205)
|
0.2530(lbs); 0.115
|
| 030. |
6C43014760
|
[1] |
COLLAR(SUB)
|
0.0880(lbs); 0.040
|
| 040. |
6706114380
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 050. |
6C22214720
|
[1] |
GEAR
|
1.1000(lbs); 0.500
|
| 060. |
6A70014870
|
[1] |
RING,INNER
|
0.0880(lbs); 0.040
|
| 070. |
6A70014880
|
[1] |
COLLAR,THRUST
|
0.0198(lbs); 0.009
|
| 080. |
6C20014860
|
[1] |
CIR CLIP,EXTERNAL
|
0.0220(lbs); 0.010
|
| 090. |
6C43014730
|
[1] |
GEAR(19,SUB)
|
0.3828(lbs); 0.174
|
| 100. |
6C43014740
|
[1] |
GEAR(14,SUB)
|
0.1936(lbs); 0.088
|
| 110. |
6791012330
|
[1] |
COLLAR
|
0.0110(lbs); 0.005
|
| 120. |
0810106302
|
[1] |
BEARING,BALL
|
0.1848(lbs); 0.084
|
| 120. |
6C54014790
|
[1] |
BEARING,BALL(6302)
|
0.1672(lbs); 0.076
|
| 130. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
