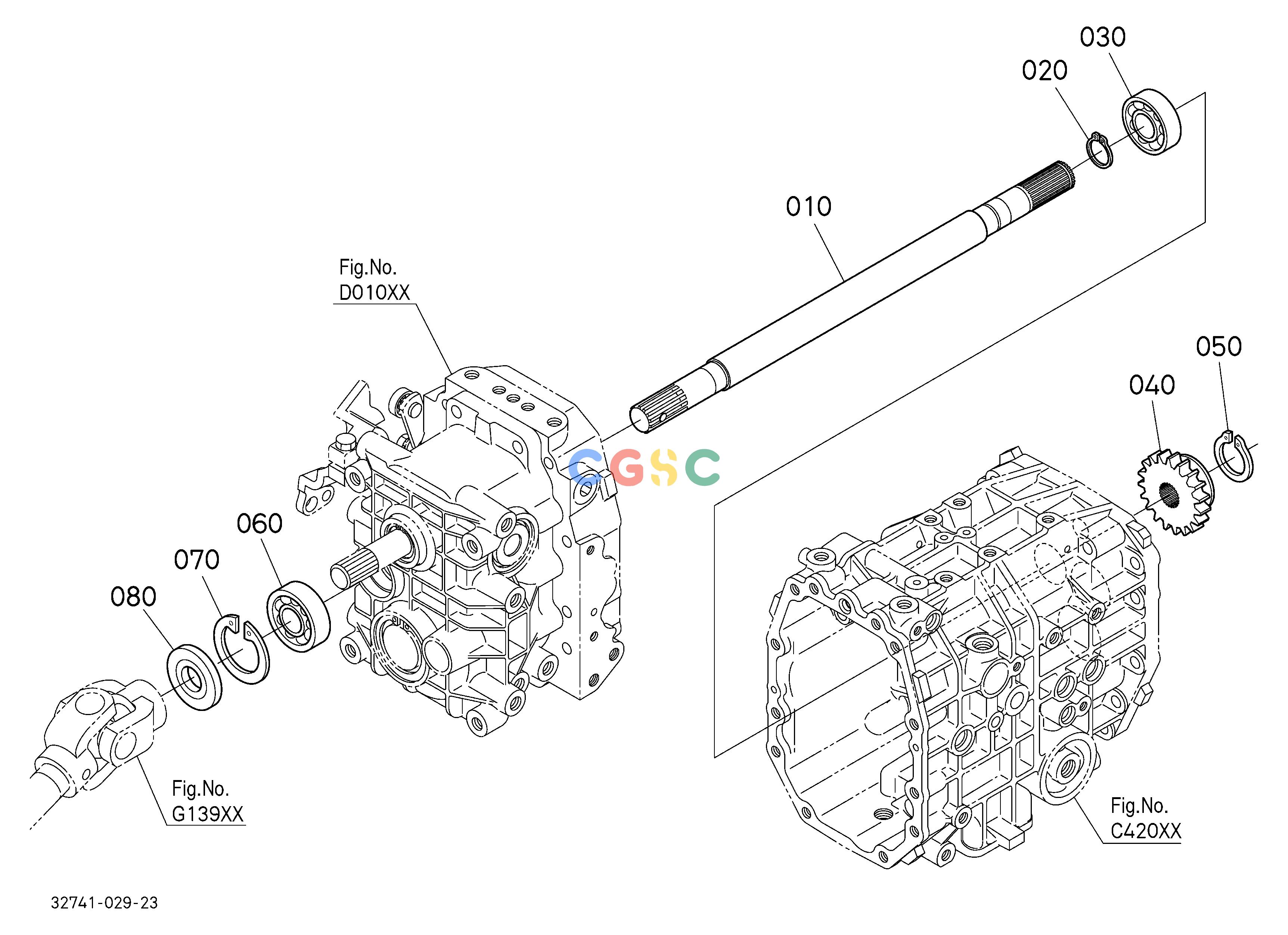

久保田零件查询D11002 REVERSE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20016112
|
[1] |
SHAFT,REVERSE
|
2.5300(lbs); 1.150
|
| 020. |
1587524320
|
[1] |
RING,SNAP
|
0.0066(lbs); 0.003
|
| 030. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 040. |
6A70016350
|
[1] |
GEAR,FWD
|
0.5500(lbs); 0.250
|
| 040. |
6C41016350
|
[1] |
GEAR(19,4WD)
|
0.5280(lbs); 0.240
|
| 050. |
0461200190
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
5230021660
|
[1] |
BEARING
|
0.1540(lbs); 0.070
|
| 070. |
0461100420
|
[1] |
CIR-CLIP,INTERNAL
|
0.0132(lbs); 0.006
|
| 080. |
0950020428
|
[1] |
SEAL,OIL
|
0.0264(lbs); 0.012
|
