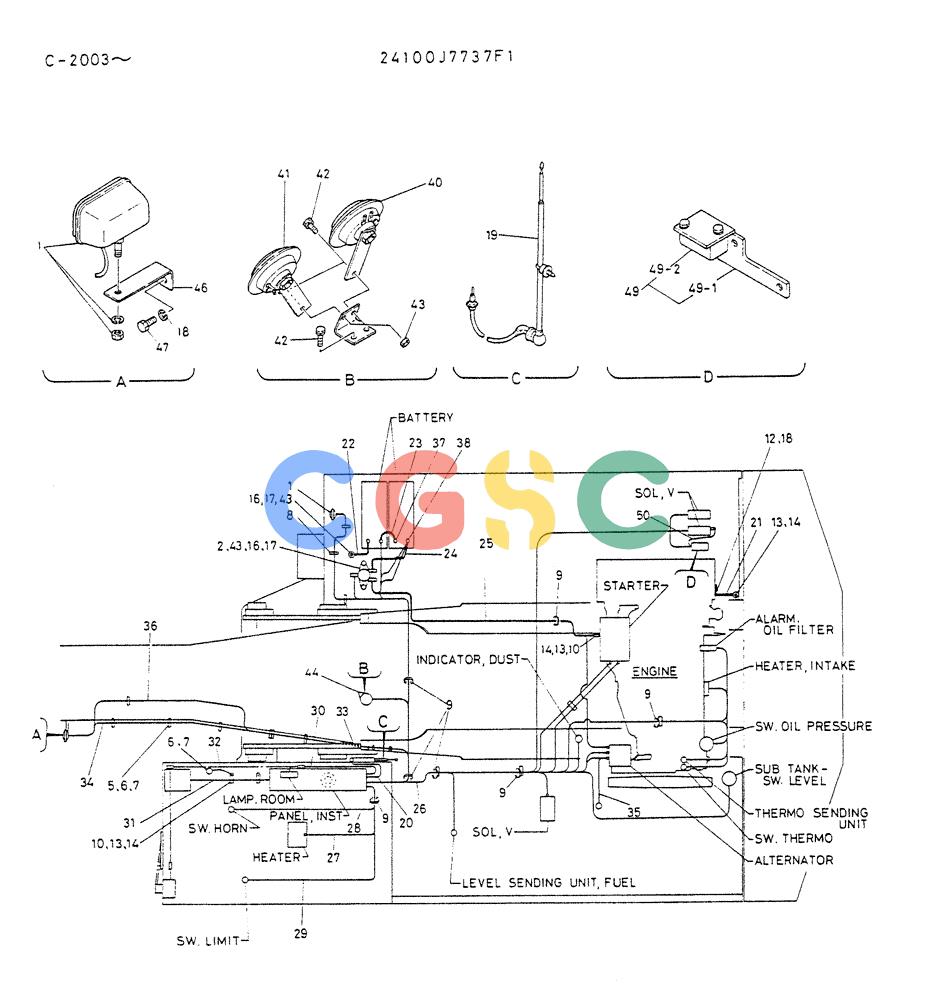

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (06-019) - WIRING ASSY, ELEC Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7737F1 | [1] | WIRING ASSY, ELEC. | |
| 1. | 2456R229F1 | [2] | LIGHT | LIGHT |
| 2. | 2479U185 | [1] | RELAY | KOB Superseded by part number: 2479R1368 |
| 4. | 2420Z699 | [1] | GROMMET | KOB(NOT SHOWN) |
| 5. | 2432Z270 | [4] | CLAMP | KOB |
| 6. | ZN18C06005 | [5] | NUT | KOBM06x1.0mm |
| 7. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 8. | 2432Z390D1 | [10] | CLAMP | |
| 9. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long, (NOT SHOWN) Superseded by part number: PY01P01043D3 |
| 10. | ZC45X22011 | [1] | CLIP | KOBClamp -- Ø22mm Single Cable Superseded by part number: ZC46X22011 |
| 12. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 13. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 14. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 17. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 18. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 19. | 2479U255 | [1] | ANTENNA | KOB |
| 20. | 2479R656 | [1] | WIRE HARNESS | KOB |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 23. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 24. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 26. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 27. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 28. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 30. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 31. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 32. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 33. | 2479T845 | [1] | HARNESS | KOBHARNESS, WIRING |
| 34. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 35. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 36. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
| 37. | 2487Z11 | [2] | COVER | KOB |
| 38. | 2487Z11D2 | [2] | COVER | KOB |
| 40. | 2479U240F1 | [1] | HORN | KOBHORN ASSY Superseded by part number: CM53S00002F1 |
| 41. | 2479U240F2 | [1] | HORN | KOBHORN ASSY Superseded by part number: CM53S00002F2 |
| 42. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 43. | ZN18C08007 | [5] | NUT | KOBM08x1.25mm |
| 44. | 2479T844 | [1] | HARNESS | KOB |
| 46. | 2416T15739 | [1] | BRACKET | KOB |
| 47. | ZS18C12022 | [1] | SCREW,Hex, M12 x 22mm | KOBM12x1.75x22mm |
| 49. | 24100T403F1 | [1] | ABSORBER | |
| 49-1. | 2416T15954 | [1] | BRACKET | |
| 49-2. | 2479R517F1 | [1] | BATTERY ACID | BATTERY ACID |
| 50. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, WIRING |
