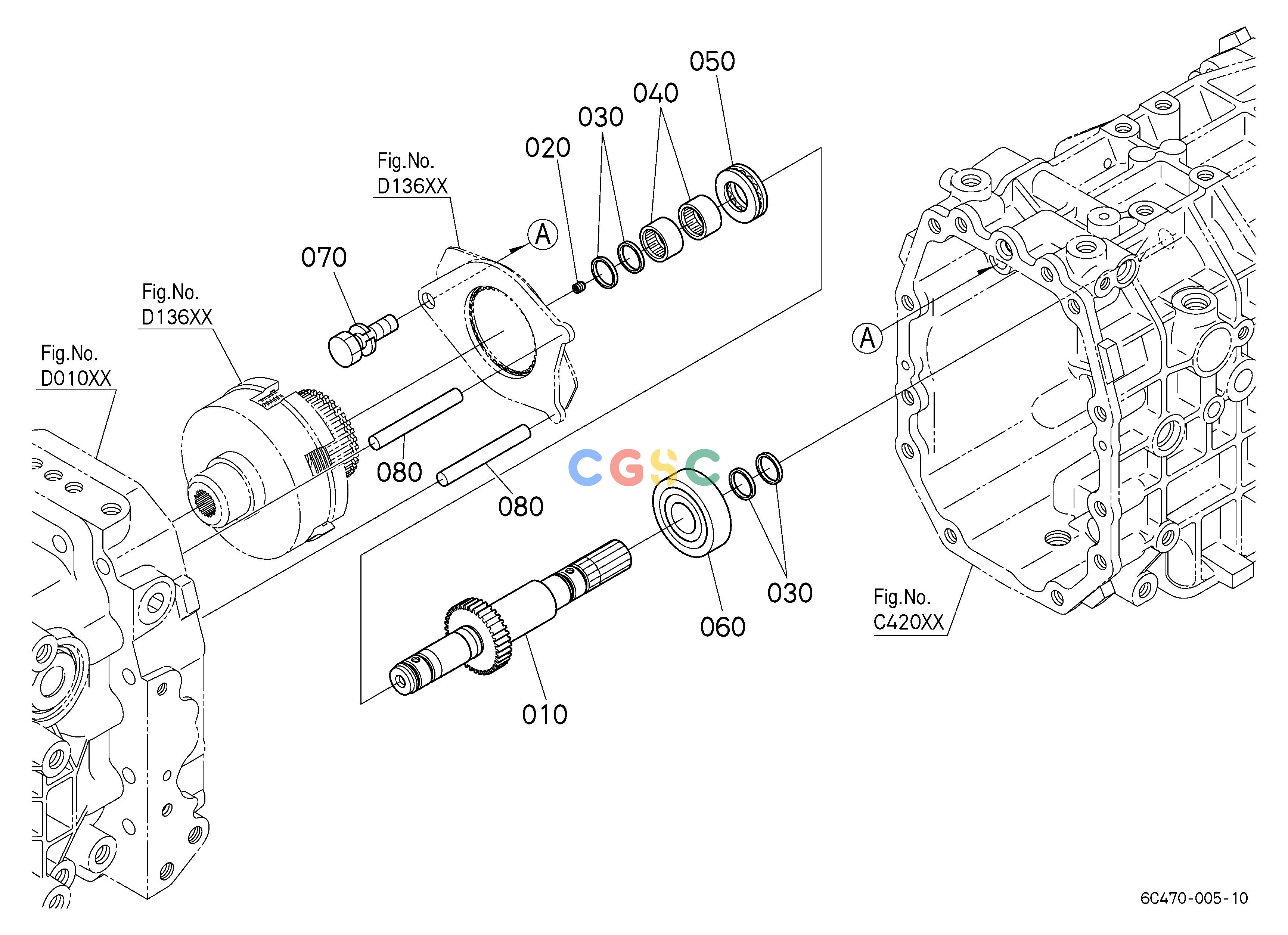

久保田零件查询D13302 PTO CLUTCH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3274114210
|
[1] |
SHAFT,PTO CLUTCH
|
1.3200(lbs); 0.600
|
| 020. |
3F74040330
|
[1] |
PLUG
|
0.0044(lbs); 0.002
|
| 030. |
5924015850
|
[4] |
RING,SEAL
|
0.0110(lbs); 0.005
|
| 040. |
0882202413
|
[2] |
BEARING,NEEDLE
|
0.0220(lbs); 0.010
|
| 050. |
6C43014330
|
[1] |
BRNG,THR BALL
|
0.0814(lbs); 0.037
|
| 060. |
0810106304
|
[1] |
BEARING,BALL
|
0.3212(lbs); 0.146
|
| 070. |
0112351025
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 080. |
6C20014290
|
[2] |
SHAFT,PLATE
|
0.0770(lbs); 0.035
|
