纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-013) - VALVE ASSY, CONTROL, (BUCKET) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
587 次

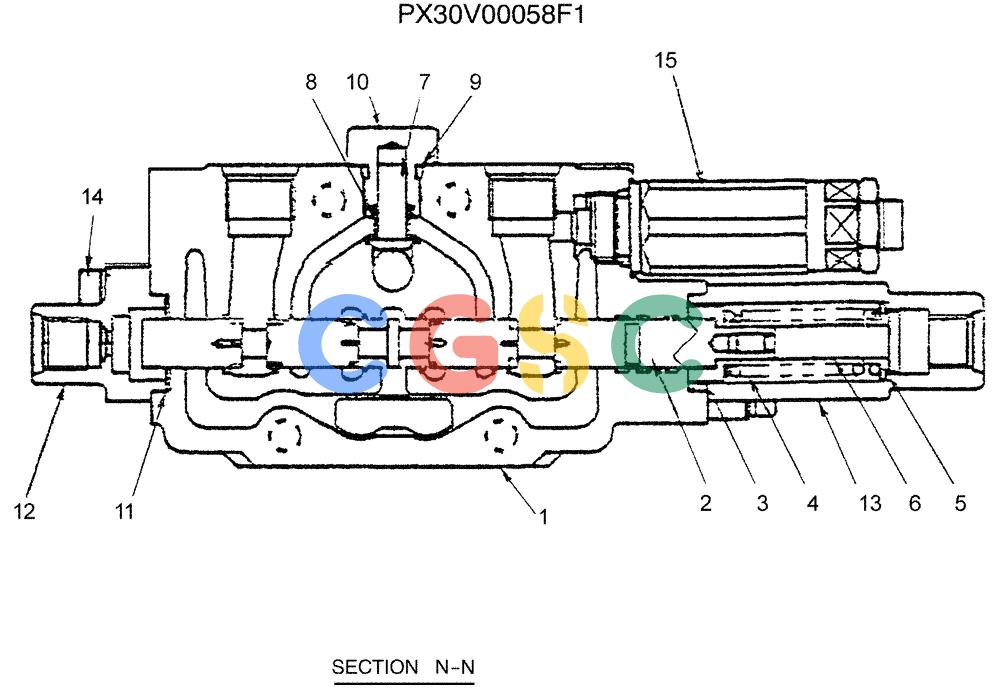

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX30V00058F1 | [1] | VALVE | KOBASSY, CONTROL Superseded by part number: PX30V00058F2 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 7. | PH30V00003S006 | [1] | POPPET | KOB |
| 8. | PH30V00003S007 | [1] | SPRING | KOB |
| 9. | ZD12P01100 | [1] | O-RING | KOB |
| 10. | PH30V00003S009 | [1] | PLUG | KOB |
| 11. | PW30V01008S011 | [2] | O-RING | KOB |
| 12. | PM30V00021S012 | [1] | COVER | KOB |
| 13. | PM30V00021S013 | [1] | COVER | KOB |
| 14. | PM30V00021S014 | [4] | SCREW | KOB |
| 15. | PM22V00005F3 | [1] | PRESSURE RELIEF VALVE | KOBASSY, OVERLOAD RELIEF, SEE FIG. 07-014 |
| . . | PX30V00058R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2(1), 3(1), 4(1), 5(1), 6(1) Superseded by part number: PX30V00058R200 |
