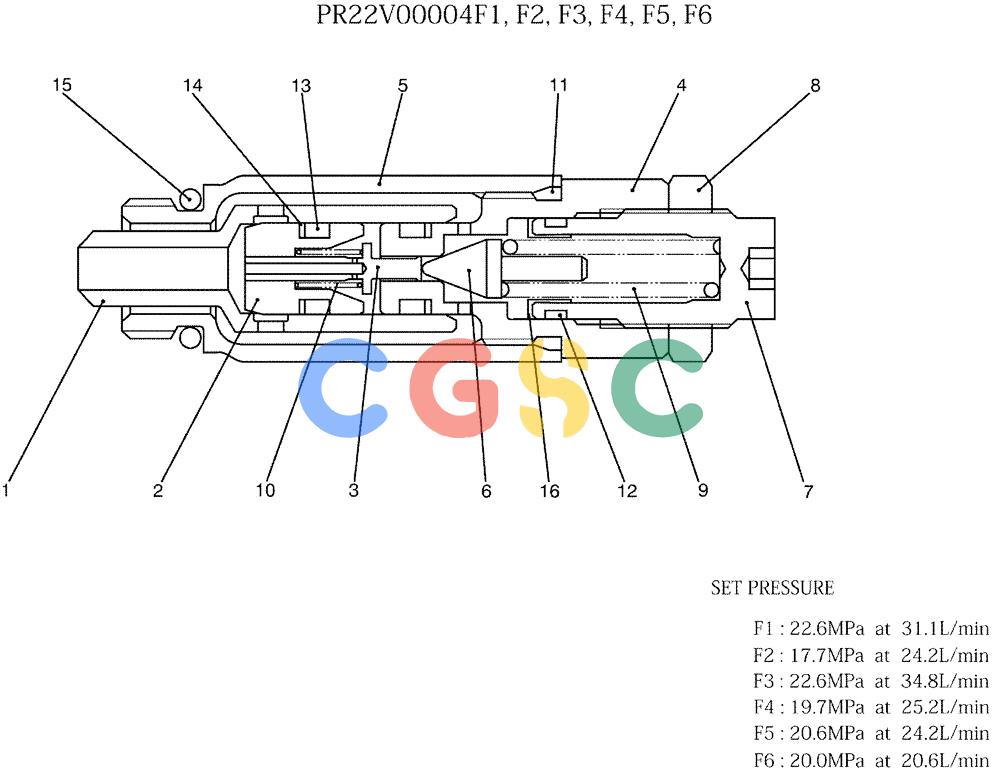

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-015) - VALVE ASSY, RELIEF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
538 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PR22V00004F1 | [1] | VALVE | KOBASSY, RELIEF |
| . . | PR22V00004F2 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| . . | PR22V00004F3 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| . . | PR22V00004F4 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| . . | PR22V00004F5 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| . . | PR22V00004F6 | [1] | VALVE | KOBASSY, RELIEF |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONSOCKET |
| 11. | ZD12P01500 | [1] | O-RING | KOB |
| 12. | 2436R612S13 | [1] | O-RING | KOB |
| 13. | PH22V00003S013 | [2] | O-RING | KOB |
| 14. | PH22V00003S014 | [2] | BACK-UP RING | KOB |
| 15. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
