| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

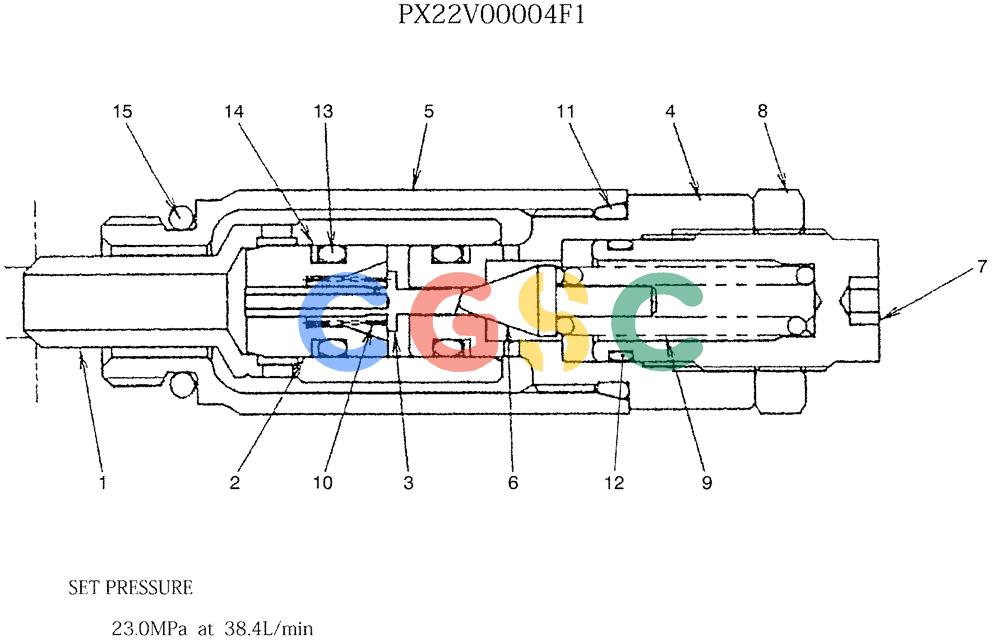

| . . | PX22V00004F1 | [1] | VALVE | KOBASSY, RELIEF |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONSOCKET |
| 11. | ZD12P01500 | [1] | O-RING | KOB |
| 12. | 2436R612S13 | [1] | O-RING | KOB |
| 13. | PH22V00003S013 | [2] | O-RING | KOB |
| 14. | PH22V00003S014 | [2] | BACK-UP RING | KOB |
| 15. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
