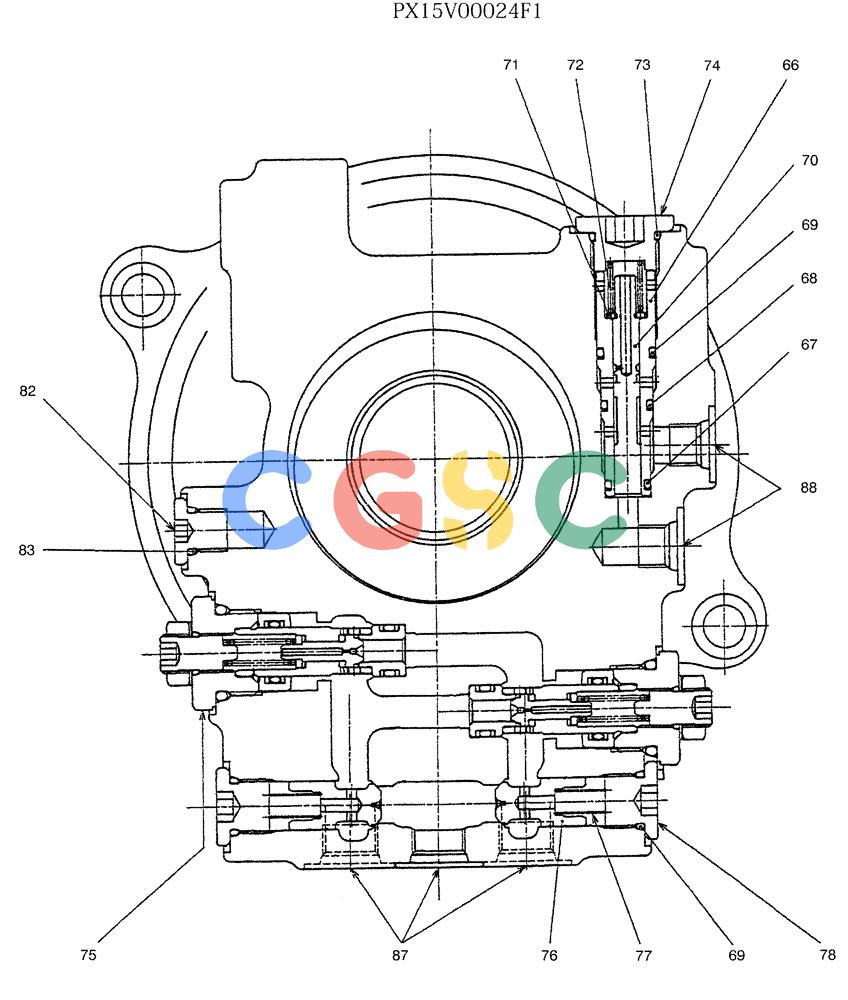

| . . | PX15V00024F1 | [1] | HYDRAULIC MOTOR | KOBASSY (SWING) |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHOUSING |
| 4. | PW15V00016S004 | [1] | COLLAR | KOB |
| 6. | YN15V00005S121 | [1] | OIL SEAL | KOB |
| 9. | PM15V00014S009 | [1] | COLLAR | KOB |
| 10. | PX15V01004S111 | [1] | HOLDER | KOB |
| 11. | PX15V01004S112 | [4] | THRUST WASHER | KOB |
| 12. | PX15V01004S113 | [4] | RACE | KOB |
| 13. | PX15V01004S114 | [4] | NEEDLE BEARING | KOB |
| 14. | PX15V01004S115 | [4] | SPRING | KOB |
| 15. | PW15V00016S015 | [1] | PLATE | KOB |
| 16. | PH10V00001S103 | [4] | SCREW | KOB |
| 17. | PX15V01004S212 | [1] | GEAR | KOB |
| 18. | PW15V00016S018 | [1] | HOLDER | KOB |
| 19. | PX15V01004S132 | [4] | WASHER | KOB |
| 20. | PX15V01004S133 | [4] | RACE | KOB |
| 21. | PX15V01004S134 | [4] | NEEDLE BEARING | KOB |
| 22. | PW15V00016S022 | [4] | GEAR | KOB |
| 24. | PX15V00018S024 | [1] | GEAR | KOB |
| 36. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 37. | PM15V00014S019 | [1] | O-RING | KOB |
| 38. | PW15V00016S038 | [1] | CASE | KOB |
| 39. | PW15V00016S039 | [1] | BALL BEARING | KOB |
| 40. | PW15V00016S040 | [1] | SHAFT | KOB |
| 41. | PX15V01001S109 | [1] | THRUST PLATE | KOB |
| 43. | 2441U942S36 | [1] | COLLAR | KOB |
| 44. | PX15V01001S115 | [1] | SPRING | KOB |
| 45. | PX15V01001S116 | [1] | WASHER | KOB |
| 46. | ZR26X03700 | [1] | SNAP RING | KOB |
| 47. | PX15V01001S113 | [3] | PIN | KOB |
| 48. | 2441U942S41 | [1] | HOLDER | KOB |
| 49. | PM15V00014S031 | [1] | PLATE | KOB |
| 51. | PM15V00014S033 | [1] | PLATE | KOB |
| 52. | PM15V00014S034 | [1] | BRAKE | KOB |
| 53. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 54. | ZD12G13500 | [1] | O-RING,134.40mm ID x 140.60mm OD x 3.10mm | KOB |
| 55. | PM15V00014S037 | [2] | SPRING SEAT | KOB |
| 56. | PM15V00014S038 | [1] | SPRING-DISC | KOB |
| 57. | PX15V00005S027 | [1] | O-RING | KOB |
| 58. | PM15V00014S040 | [1] | COVER | KOB |
| 59. | 2441U942S48 | [1] | BALL BEARING | KOB Superseded by part number: ST262 |
| 60. | 2441U901S19 | [1] | PIN | KOB |
| 61. | PX15V01001S105 | [1] | PLATE | KOB |
| 62. | PM15V00014S044 | [2] | PIN | KOB |
| 63. | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOB |
| 64. | ZS23C12030 | [7] | SCREW,Hex Socket Head, M12 x 30mm | KOB |
| 65. | 2441U942S61 | [1] | ORIFICE | KOB |
| 67. | ZD12P01090 | [1] | O-RING | KOB |
| 68. | ZD12P01200 | [1] | O-RING | KOB |
| 69. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 71. | 2436R1749S11 | [1] | WASHER | KOB Superseded by part number: ZW16K06000 |
| 72. | PM15V00014S054 | [1] | SPRING | KOB |
| 73. | ZD12P01800 | [1] | O-RING | KOB |
| 74. | 2441U792S141 | [1] | PLUG | KOB |
| 75. | PX22V00003F1 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-018 |
| 76. | PX15V01005S202 | [2] | CHECK VALVE | KOB |
| 77. | PX15V01005S203 | [2] | SPRING | KOB |
| 78. | 2441U802S58 | [2] | PLUG | KOB |
| 80. | LQ15V00007S015 | [2] | PLUG | KOB |
| 82. | 2441U984S35 | [1] | PLUG | KOB |
| 83. | ZD12P01100 | [1] | O-RING | KOB |
| . . | PM15V00014R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 36(3), 37(1), 53(1), 54(1), 57(1), 63(2), 67(1), 68(1), 69(3), 73(1), 83(1) |
| . . | PM15V00014R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 42(1), 50(9) |
| . . | PM15V00014R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 66(1), 67(1), 68(1), 69(1), 70(1) |
| . . | PW15V00016R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 23(1) |
| . . | PX15V00024R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1(1), 2(1), 3(1), 4(1), 5(1), 6(1), 7(1), 8(2), 9(1), 35(1), 36(1), 37(1) |
