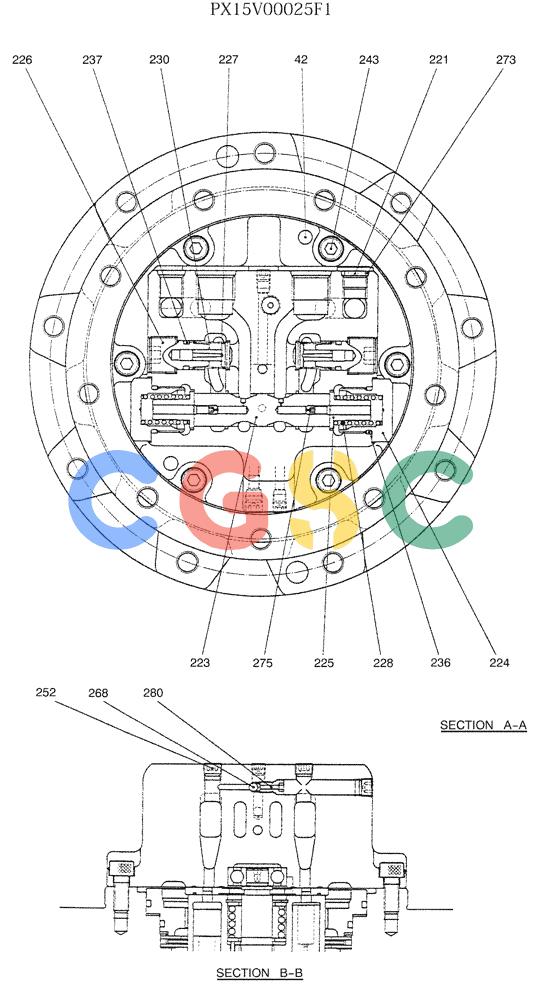

| . . | PX15V00025F1 | [1] | HYDRAULIC MOTOR | KOBASSY (PROPELLING) |
| 1. | PX15V00025S001 | [1] | HUB | KOB |
| 2. | PX15V00025S002 | [1] | SPINDLE | KOB |
| 3. | PX15V00025S003 | [1] | HOLDER | KOB |
| 4. | PX15V00025S004 | [1] | GEAR | KOB |
| 5. | PX15V00025S005 | [3] | GEAR | KOB |
| 6. | PX15V00025S006 | [1] | GEAR | KOB |
| 7. | PX15V00025S007 | [4] | GEAR | KOB |
| 9. | PX15V00025S009 | [2] | WASHER | KOB |
| 11. | PX15V00025S011 | [4] | WASHER | KOB |
| 12. | PX15V00025S012 | [7] | WASHER | KOB |
| 13. | PX15V00025S013 | [1] | COVER | KOB |
| 14. | PX15V00025S014 | [1] | COUPLING | KOB |
| 22. | PX15V00025S022 | [1] | NUT | KOB |
| 24. | PX15V00025S024 | [2] | BALL BEARING | KOB |
| 27. | PX15V00025S027 | [3] | NEEDLE BEARING | KOB |
| 28. | PX15V00025S028 | [4] | NEEDLE BEARING | KOB |
| 29. | PX15V00025S029 | [3] | RING | KOB |
| 30. | PX15V00025S030 | [4] | RING | KOB |
| 31. | NSS | [2] | NOT SERVICED SEPARATELY | CONSEAL, FLOATING |
| 33. | YT15V00008S033 | [1] | PLUG | KOB |
| 35. | ZD11G17500 | [1] | O-RING,174.30mm ID x 185.70mm OD x 5.70mm | KOB |
| 37. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 39. | YR15V00002S121 | [2] | PLUG | KOB |
| 40. | PX15V00025S040 | [7] | CAPSCREW | KOBSCREW Superseded by part number: PH15V00012S040 |
| 41. | 2441U815S26 | [1] | BALL | KOB |
| 42. | PY15V00006S142 | [2] | PIN | KOB |
| 43. | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 44. | PH15V00009S030 | [1] | O-RING | KOB |
| 45. | PX15V00025S045 | [1] | RING | KOB |
| 47. | PX15V00025S047 | [2] | SET SCREW | KOB |
| 54. | PY15V00006S154 | [7] | PLUG | KOB |
| 102. | PX15V00025S102 | [1] | SHAFT | KOB |
| 103. | PX15V00025S103 | [1] | PLATE | KOB |
| 107. | PW15V00018S107 | [1] | PLATE | KOB |
| 108. | 2441U831S108 | [1] | BALL | KOB |
| 109. | PX15V00025S109 | [1] | PLATE | KOB |
| 110. | 2441U831S110 | [2] | WASHER | KOB |
| 112. | PX15V00025S112 | [1] | PISTON | KOB Superseded by part number: PH15V00012S112 |
| 113. | PH15V00009S113 | [8] | SPRING | KOB |
| 114. | YJ15V00002S114 | [1] | SPRING | KOB |
| 115. | PX15V00025S115 | [1] | PLATE | KOB |
| 116. | YJ15V00002S116 | [2] | PLATE | KOB |
| 132. | 2441U831S132 | [1] | OIL SEAL | KOB |
| 135. | PY15V00005S135 | [1] | O-RING | KOB |
| 139. | PH15V00009S139 | [1] | O-RING | KOB |
| 145. | 2441U831S145 | [1] | RING | KOB |
| 149. | YJ15V00002S149 | [1] | BALL BEARING | KOB |
| 150. | 2441U831S150 | [1] | BALL BEARING | KOB |
| 151. | PH15V00009S151 | [3] | ROLLER | KOB |
| 163. | PX15V00025S163 | [1] | RING | KOB |
| 167. | PY15V00006S167 | [2] | SPOOL | KOB |
| 177. | PH15V00009S177 | [2] | PIN | KOB |
| 190. | PW15V00018S190 | [1] | SPRING | KOB |
| 221. | 2441U995S192 | [1] | PLUG | KOB |
| 224. | PH15V00009S224 | [2] | PLUG | KOB |
| 225. | PH15V00009S225 | [2] | SEAT | KOB |
| 226. | 2441U831S126 | [2] | PLUG | KOB |
| 227. | 2441U831S127 | [2] | VALVE | KOB |
| 228. | PH15V00009S228 | [2] | SPRING | KOB |
| 230. | 2441U831S130 | [2] | SPRING | KOB |
| 236. | ZD12P02200 | [2] | O-RING | KOB |
| 237. | ZD12P01200 | [2] | O-RING | KOB |
| 241. | 2441U815S141 | [2] | PIN | KOB |
| 243. | ZS23C08020 | [6] | SCREW,Hex Socket Head, M8 x 20mm | KOB |
| 252. | YX15V00003S146 | [1] | PLUG | KOB |
| 266. | PH15V00009S401 | [1] | SPRING | KOB |
| 268. | PH15V00009S268 | [1] | BALL | KOB |
| 273. | ZD12P01100 | [1] | O-RING | KOB |
| 275. | PH15V00009S275 | [2] | ORIFICE | KOB |
| 279. | YN15V00027S379 | [1] | FILTER | KOB |
| 280. | PH15V00009S280 | [1] | PLUG | KOB |
| 299. | 2441U829S199 | [1] | PLATE | KOB |
| . . | PX15V00025R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 31(2) |
| . . | PX15V00025R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 104(1), 105(7), 106(7) |
| . . | PX15V00025R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 161(1), 162(1), 163(1) |
| . . | PX15V00025R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 54(7), 201(1), 221(2), 223(1), 224(2), 225(2), 226(2), 227(2), 228(2), 230(2), 236(2), 237(2), 252(4), 263(1), 264(1), 266(1), 268(1), 273(2), 275(4), 279(1), 280(1), 299(1) |
| . . | PX15V00025R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 201(1), 223(1) |
| . . | PH15V00009R410 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 263(1), 264(1) |
| . . | PX15V00025R700 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 31(2), 35(1), 37(3), 43(2), 44(1), 132(1), 135(1), 139(1), 236(2), 237(2), 273(2) |
