纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-020) - PUMP ASSY, (PX10V00013F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
709 次

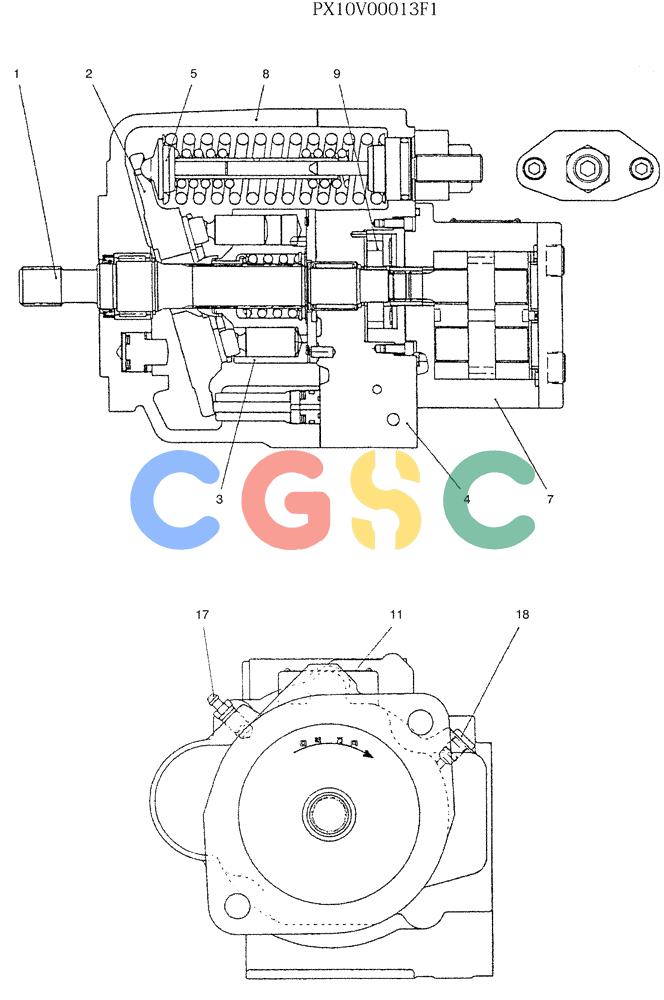

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX10V00013F1 | [1] | HYDRAULIC PUMP | KOBASSY |
| 1. | PX10V01004F1 | [1] | SHAFT ASSY. | KOBSEE FIG. 07-021 |
| 2. | PX10V01005F1 | [1] | BLOCK ASSY. | KOBSEE FIG. 07-022 |
| 3. | PX10V01006F1 | [1] | ROTATOR | KOBASSY, SEE FIG. 07-023 |
| 4. | PX10V01007F1 | [1] | COVER ASSY | KOBSEE FIG. 07-024 |
| 5. | PX10V01008F1 | [1] | SPRING | KOBASSY SEE FIG. 07-025 |
| 7. | PX10V00014F1 | [1] | PUMP | KOBASSY, GEAR, SEE FIG. 07-028 |
| 8. | PX10V01010F1 | [1] | TRANSMISSION HOUSING | KOBASSY, SEE FIG. 07-027 |
| 9. | PX10V00015F1 | [1] | PUMP | KOBASSY, SEE FIG. 07-026 |
| 11. | PY10V00009S011 | [1] | IDENTITY PLATE | KOB |
| 17. | PY10V00007S017 | [1] | BREATHER | KOB |
| 18. | 2441U720S49 | [1] | PLUG | KOB |
