纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-034) - CYLINDER ASSY, BUCKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
221 次

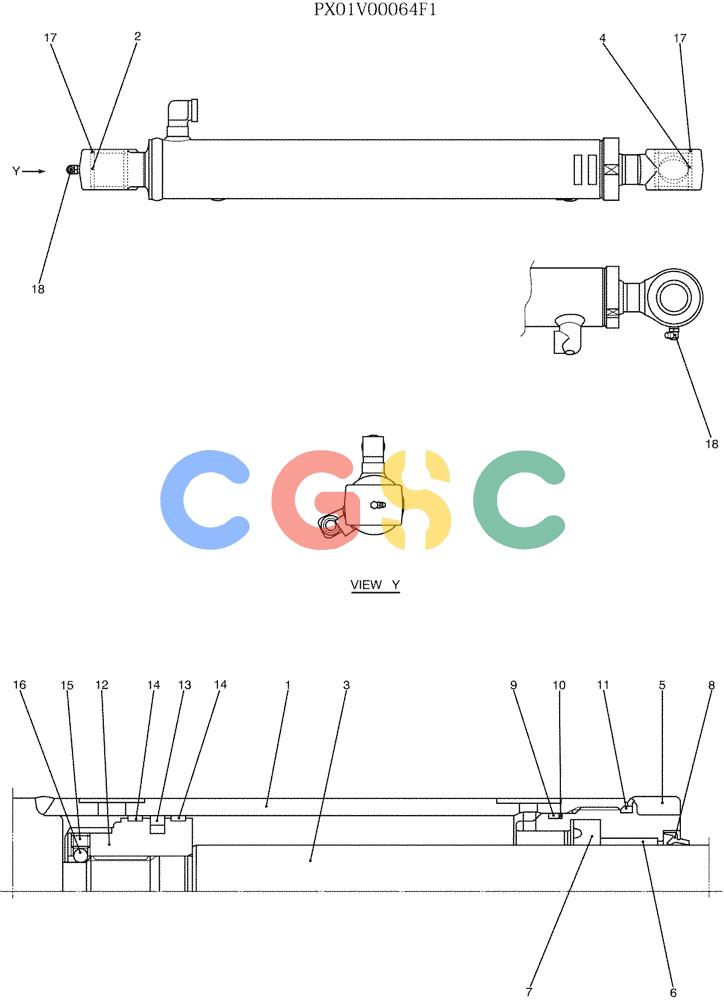

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX01V00064F1 | [1] | HYDRAULIC CYLINDER | KOBCYLINDER ASSY, BUCKET |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 2. | PV12B01186D1 | [1] | BUSHING | KOB |
| 4. | PX01V00041S004 | [1] | BUSHING | KOB |
| 5. | PX01V00041S005 | [1] | CYLINDER HEAD | KOB |
| 6. | PM01V00060S031 | [1] | BUSHING | KOBBUSHING |
| 7. | 2438U477S6 | [1] | RING | KOB |
| 8. | PH01V00004S006 | [1] | WIPER | KOBRING |
| 9. | ZD12G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOB |
| 10. | PW01V00046S008 | [1] | BACK-UP RING | KOB |
| 11. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 12. | PX01V00041S012 | [1] | PISTON | KOB |
| 13. | 2438U1289S16 | [1] | RING | KOBSEAL |
| 14. | PM01V00067S019 | [2] | RING | KOBRING, SLIDE |
| 15. | 2438U1057S16 | [1] | SET SCREW | KOBSETSCREW |
| 16. | 2436U946S11 | [1] | BALL | KOB |
| 17. | PR01V00002S027 | [4] | SEAL | KOBDUST |
| 18. | ZG91U02000 | [2] | LUBE NIPPLE | KOB |
| . . | PX01V00064R100 | [1] | REPAIR KIT | KOBREPAIR KIT, CONSISTS OF REF. 1(1), 2(1), 17(2) |
| . . | PX01V00041R200 | [1] | ROD | KOBREPAIR KIT, CONSISTS OF REF. 3(1), 4(1), 17(2) |
| . . | PX01V00041R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 7(1), 8(1), 9(1), 10(1), 11(1), 13(1), 14(2) |
