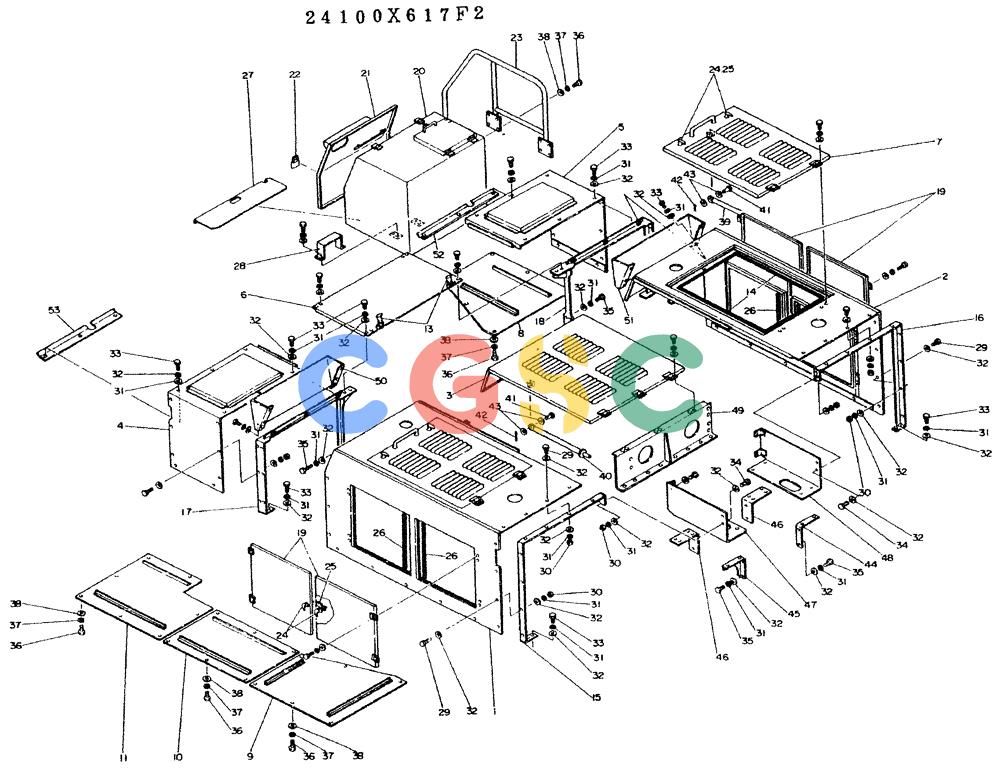

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (02-004) - GUARD ASSY, P/N 24100X617F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X617F2 | [1] | GUARD ASSY | |
| 1. | 2414J499D1 | [1] | GUARD | |
| 2. | 2414J499D2 | [1] | GUARD | |
| 3. | 2114J498 | [1] | GUARD | |
| 4. | 2414N884D1 | [1] | GUARD | |
| 5. | 2414N884D2 | [1] | GUARD | |
| 6. | 2414P1374 | [1] | GUARD | |
| 7. | 2414N885 | [2] | DOOR | |
| 8. | 2414P1369 | [1] | COVER | |
| 9. | 2414P1366 | [1] | COVER | COVER |
| 10. | 2414P1370 | [1] | COVER | COVER |
| 11. | 2414P1372 | [1] | COVER | COVER |
| 13. | R27T0013D1 | [2] | LATCH | KOB Superseded by part number: R27T0013D2 |
| 14. | 2427Z213D16 | [2] | CHANNEL, RUBBER | CHANNEL, RUBBER |
| 15. | 2416N1377D1 | [1] | BRACKET | |
| 16. | 2416N1377D2 | [1] | BRACKET | |
| 17. | 2416N1376D1 | [1] | BRACKET | |
| 18. | 2416N1376D2 | [1] | BRACKET | |
| 19. | 2414P1373 | [4] | DOOR | |
| 20. | 2427J678 | [1] | BOX, TOOL | |
| 21. | 2414N891 | [1] | COVER | |
| 22. | 21Z1 | [1] | WRENCH | KOBKEY, LOCK |
| 23. | 2406N455 | [1] | HANDRAIL | |
| 24. | 2427R171 | [8] | HANDLE | KOB |
| 25. | 2418T5028 | [8] | PLATE | PLATE |
| 26. | 2427Z213D3 | [4] | CHANNEL, RUBBER | CHANNEL, RUBBER |
| 27. | 2414P1368 | [2] | COVER | |
| 28. | 2416T4808 | [1] | BRACKET | |
| 29. | ZS11C12030 | [73] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 30. | ZN11C12010 | [73] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 31. | ZW22X12000 | [106] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 32. | ZW11X12000 | [170] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 33. | ZS11C12025 | [48] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 34. | ZS11C12040 | [4] | CAPSCREW -- M12x1.75x40mm | |
| 35. | ZS11C12020 | [16] | SCREW,Hex, M12 x 20mm, Cl 4.8 | KOBM12x1.75x20mm |
| 36. | ZS11C10015 | [31] | CAPSCREW M10x1.50x15mm | CAPSCREW M10x1.50x15mm |
| 37. | ZW22X10000 | [31] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 38. | ZW11X10000 | [31] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 39. | 2406P1355D1 | [2] | STAY | |
| 40. | 2406P1355D2 | [2] | STAY | |
| 41. | ZP45X16050 | [4] | PIN | |
| 42. | ZP15D04040 | [4] | COTTER PIN | KOBOD 04 x 40mm Long Superseded by part number: ZP15D04050 |
| 43. | ZW11X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 44. | 2416T5329D1 | [1] | BRACKET | |
| 45. | 2416T5329D2 | [1] | BRACKET | |
| 46. | 2416T5330 | [2] | BRACKET | |
| 47. | 2416P4124D2 | [1] | BRACKET | |
| 48. | 2416P4124D1 | [1] | BRACKET | |
| 49. | 2416P4123 | [1] | BRACKET | |
| 50. | 2427P1327D1 | [1] | DUCT | |
| 51. | 2427P1327D2 | [1] | DUCT | |
| 52. | 2414T1110 | [1] | COVER | |
| 53. | 2414T1111 | [1] | COVER | |
