神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (02-003) - INSULATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
230 次

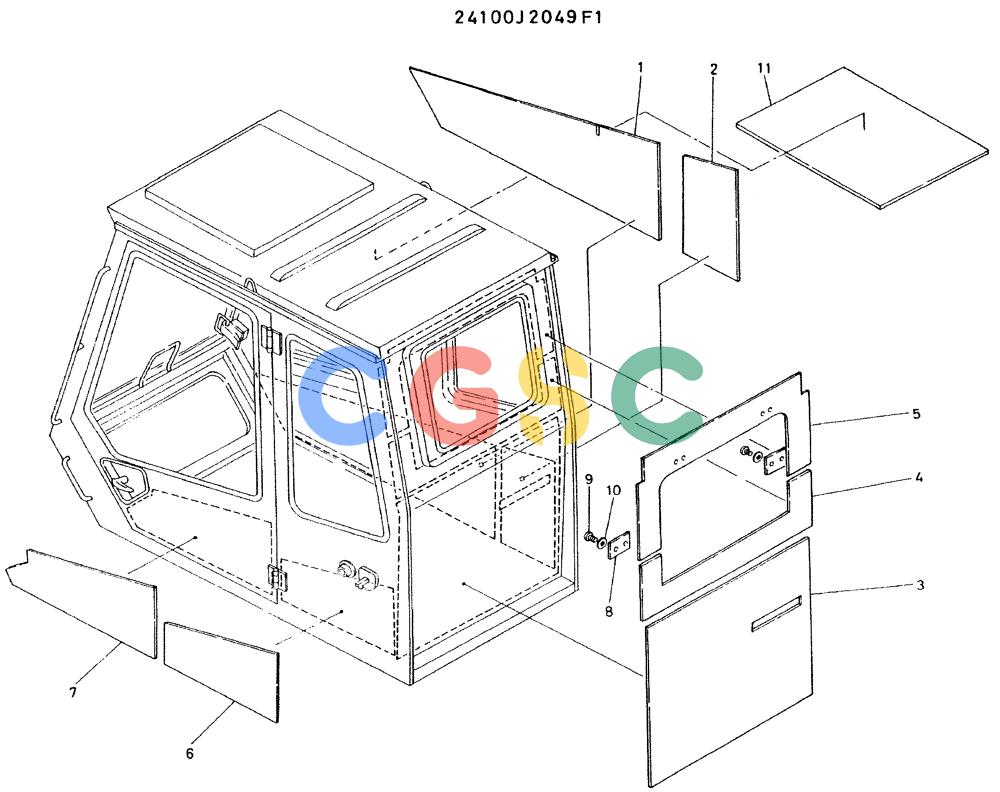

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2049F1 | [1] | INSULATOR ASSY | |
| 1. | 2414R132 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 2. | 2414R130 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 3. | 2414R123 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 4. | 2414R124 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 5. | 2414R125 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 6. | 2414R131 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 7. | 2414P1397 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 8. | 2418T5199 | [2] | PLATE | |
| 9. | ZS31C04010 | [4] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 10. | ZW11P04000 | [4] | WASHER | KOBID 04 x OD 09 x Th 0.8mm |
| 11. | 2414R129 | [1] | INSULATION, HEAT | INSULATION, HEAT |
