纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-040) - VALVE ASSY, SOLENOID, P/N PX35V00003F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
500 次

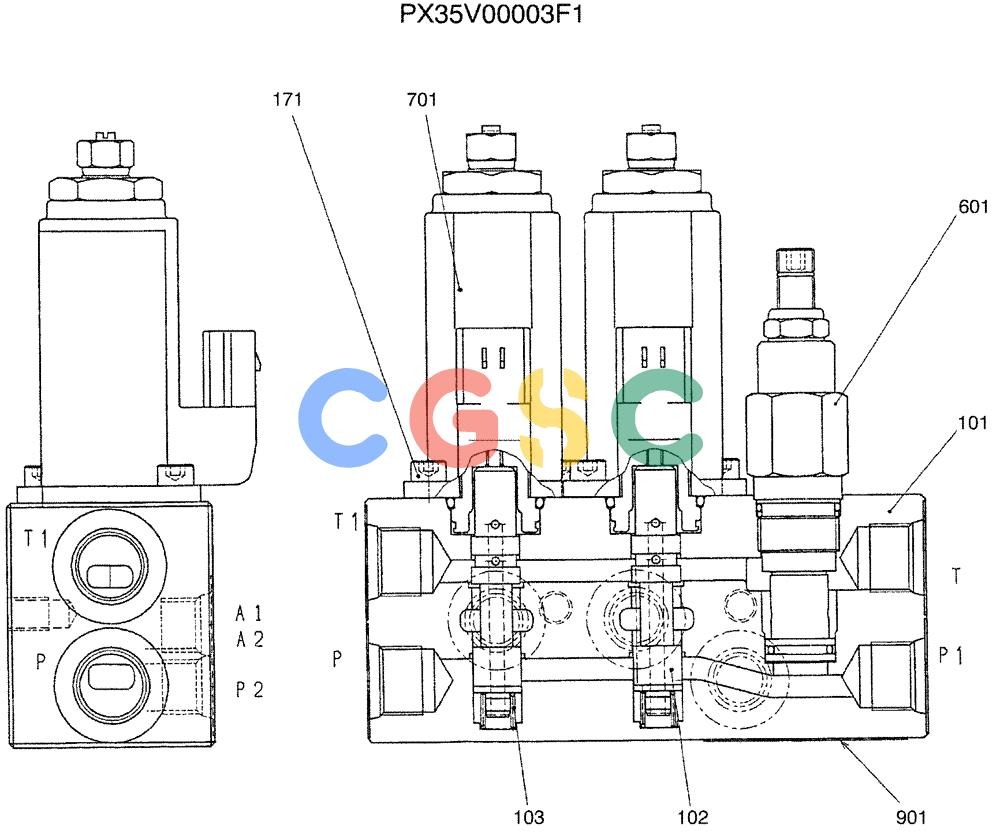

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX35V00003F1 | [1] | VALVE | KOBASSY, SOLENOID |
| 101. | PX35V00003S101 | [1] | CASE | KOB |
| 102. | PX35V00003S102 | [2] | SPOOL | KOB |
| 103. | 2436U1459S5 | [2] | SPRING | KOB |
| 171. | YX35V00002S171 | [4] | SCREW,Hex Socket Head, M5 x 12mm | KOBCAP Superseded by part number: ZS23C05012 |
| 601. | YR22V00001F1 | [1] | HYDRAULIC VALVE | KOBASSY, RELIEF, SEE FIG. 07-041 |
| 701. | PX35V00003S701 | [2] | SOLENOID | KOB |
| 901. | NSS | [1] | NOT SERVICED SEPARATELY | CONNAME PLATE |
