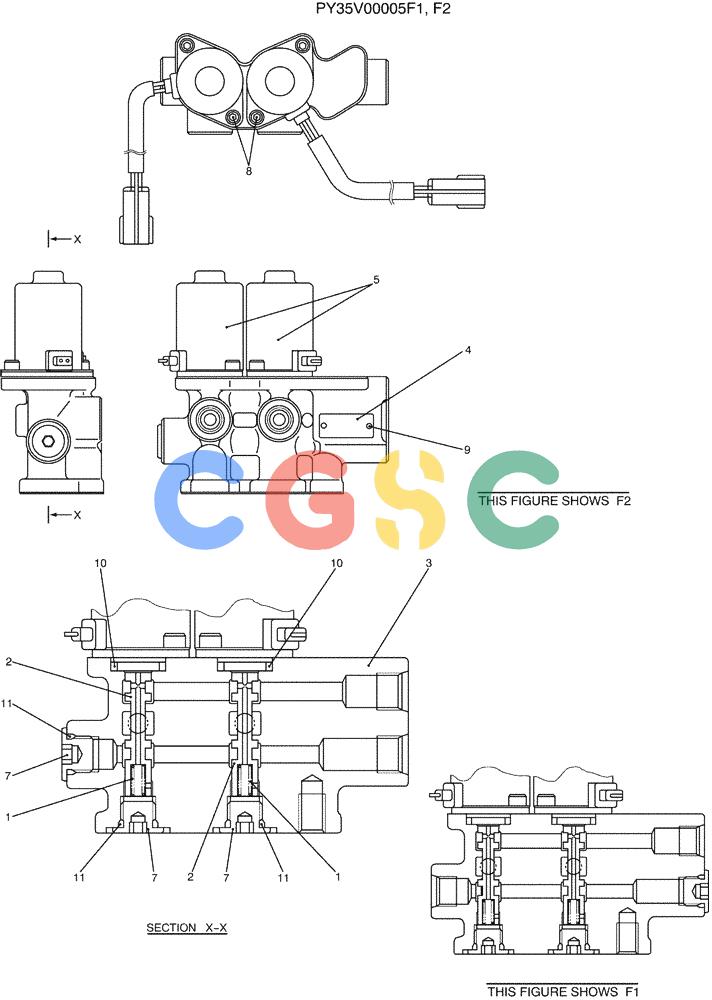

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-042) - VALVE ASSY, SOLENOID, P/N PY35V00005F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PY35V00005F1 | [1] | SOLENOID | KOBASSY, SOLENOID |
| . . | PY35V00005F2 | [1] | VALVE | KOBASSY, SOLENOID |
| 1. | 2436U2802S3 | [2] | SPRING | KOB |
| 2. | NSS | [2] | NOT SERVICED SEPARATELY | CONSPOOL |
| 5. | PY35V00005S005 | [2] | SOLENOID | KOB(Used for Nibbler/Breaker Open/Close) |
| 7. | LC35V00004S007 | [3] | PLUG | KOB |
| 8. | LC35V00004S008 | [4] | SCREW | KOBCAP |
| 9. | YN30V00080S023 | [2] | SCREW | KOBRIVET |
| 10. | ZD11P01600 | [2] | O-RING | KOB |
| 11. | ZD12P01100 | [3] | O-RING | KOB |
