纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-043) - VALVE ASSY, SOLENOID, P/N PE35V00001F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
880 次

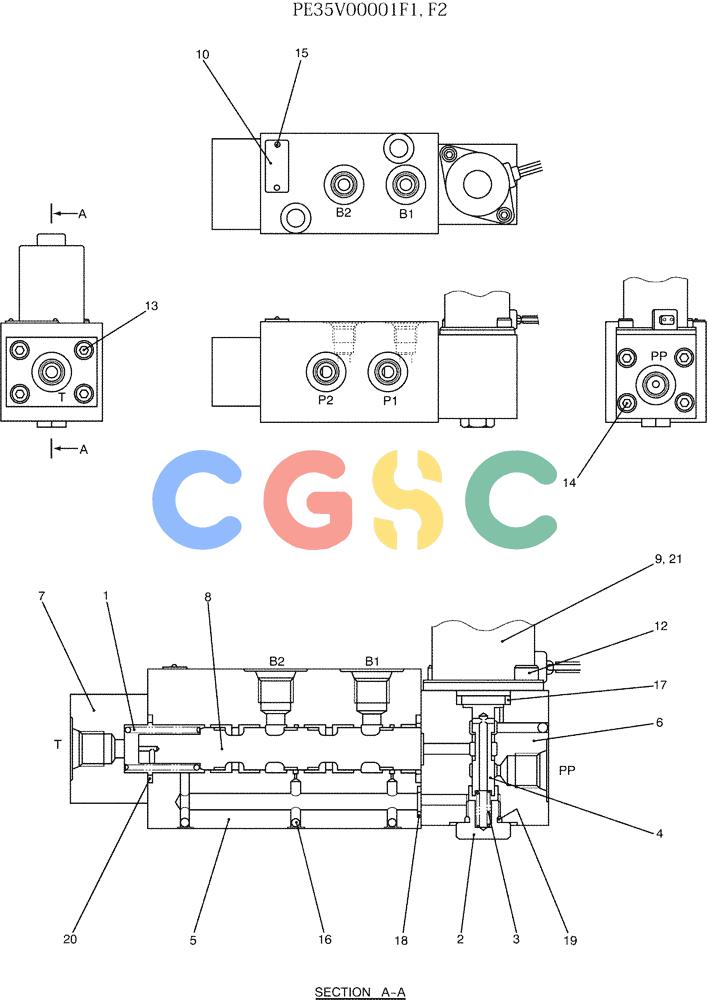

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PE35V00001F1 | [1] | SOLENOID VALVE | KOBASSY |
| . . | PE35V00001F2 | [1] | SOLENOID VALVE | KOBVALVE ASSY, SOLENOID |
| 1. | PE35V00001S001 | [1] | SPRING | KOB |
| 2. | 2436U2159S3 | [1] | PLUG | KOB |
| 3. | 2436U2802S3 | [1] | SPRING | KOB |
| 4. | YN35V00010S004 | [1] | SPOOL | KOB |
| 5. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 7. | YR35V00009S008 | [1] | COVER | KOB |
| 9. | PE35V00001S002 | [1] | SOLENOID | KOBVALVE (F1 ONLY) |
| 12. | EN35V00004S010 | [2] | BOLT | KOBCAP |
| 13. | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm | KOBCAP |
| 14. | ZS23C06050 | [4] | CAPSCREW,Hex Socket Head, M6 x 50mm | KOBSCREW CAP Superseded by part number: ZS28C06050 |
| 15. | YN30V00080S023 | [2] | SCREW | KOBRIVET |
| 17. | ZD11P01600 | [1] | O-RING | KOB |
| 18. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 19. | ZD12P01000 | [1] | O-RING | KOB |
| 20. | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-RING |
| 21. | PY35V00005S005 | [1] | SOLENOID | KOBVALVE (F2 ONLY) |
