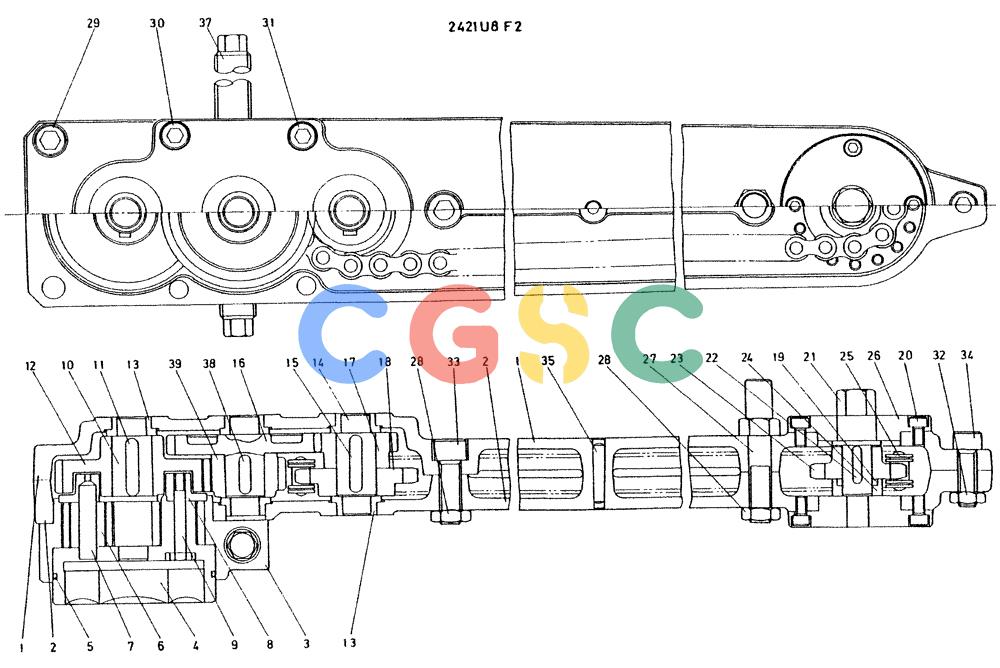

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (07-005) - TOOL ASSY , P/N 2421U8F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
326 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2421U8F2 | [1] | WRENCH CONSISTS OF REF. 1 TO 39 | WRENCH CONSISTS OF REF. 1 TO 39 |
| 1. | 2421U8S1 | [1] | FRAME | |
| 2. | 2421U8S2 | [1] | FRAME | |
| 3. | 2421U8S3 | [1] | GEAR, INTERNAL | |
| 4. | 2421U8S4 | [1] | SOCKET | |
| 5. | ZD11G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 6. | 2421U8S6 | [4] | GEAR, PINION | |
| 7. | 2421U8S7 | [4] | PIN | |
| 8. | 2421U8S8 | [1] | COVER, METAL | |
| 9. | 2421U8S9 | [4] | CAPSCREW | |
| 10. | 2421U8S10 | [1] | GEAR, SUN | |
| 11. | 2421U8S11 | [1] | KEY | |
| 12. | 2421U8S12 | [1] | GEAR | |
| 13. | 2421U8S13 | [5] | BUSHING | |
| 14. | 2421U8S14 | [1] | SHAFT | |
| 15. | 2421U8S15 | [1] | KEY | |
| 16. | 2421U8S16 | [1] | GEAR GEAR | |
| 17. | 2421U8S17 | [1] | GEAR | |
| 18. | 2421U8S18 | [1] | SPROCKET | |
| 19. | 2421U8S19 | [1] | BUSHING | |
| 20. | ZS23C06010 | [8] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 21. | 2421U8S21 | [1] | SHAFT | |
| 22. | 2421U8S22 | [1] | KEY | |
| 23. | 2421U8S23 | [1] | SPROCKET | |
| 24. | 2421U8S24 | [1] | COLLAR | |
| 25. | 2421U8S25 | [1] | CHAIN | |
| 26. | 2421U8S26 | [1] | BUSHING | |
| 27. | 2421U8S27 | [1] | PIN | |
| 28. | ZN12C12007 | [3] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 29. | ZS23C12055 | [2] | SCREW,Hex Socket Head, M12 x 55mm | KOBM12x1.75x55mm |
| 30. | ZS23C10065 | [2] | SCREW,Hex Socket Head, M10 x 65mm | KOBM10x1.50x65mm |
| 31. | ZS23C10050 | [2] | SCREW,Hex Socket Head, M10 x 50mm | KOBM10x1.50x50mm |
| 32. | ZN12C10006 | [3] | NUT | KOB Superseded by part number: ZN18C10006 |
| 33. | ZS23C12035 | [2] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 34. | ZS23C10035 | [1] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 35. | 2421U8S35 | [2] | PIN, TAPER | |
| 37. | 2421U8S37 | [1] | BOLT | |
| 38. | 2421U8S38 | [1] | KEY | |
| 39. | 2421U8S39 | [1] | GEAR | |
