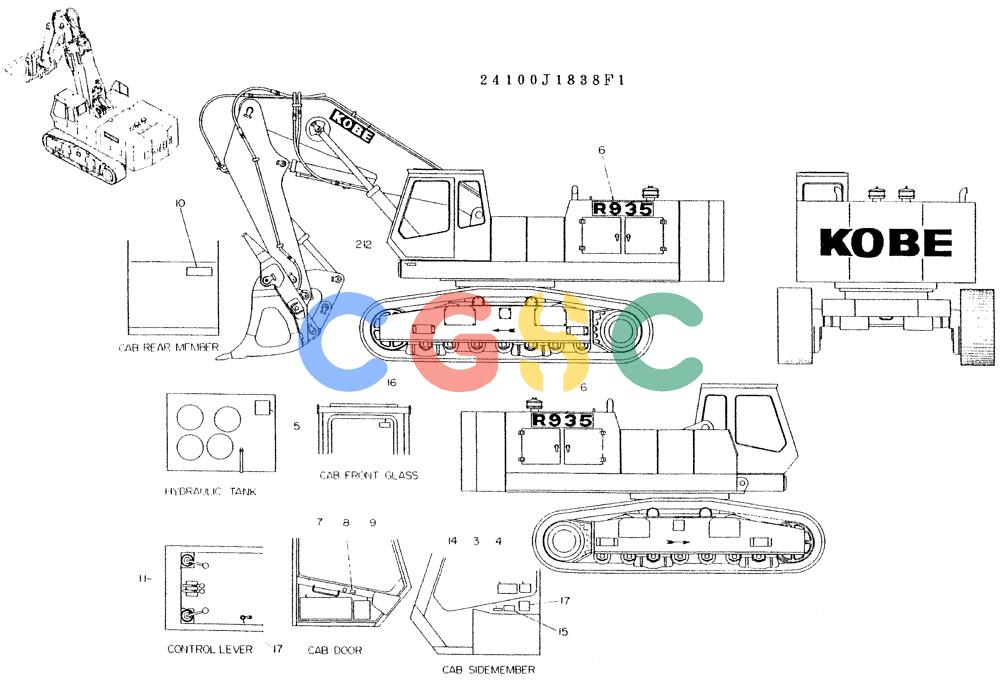

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (07-006) - LABEL NAME-PLATE, P/N 24100J1838F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1838F1 | [1] | LABEL. NAME-PLATE CONSISTS OF REF.1 TO 17 | |
| 1. | 2432J603 | [2] | NAME-PLATE | |
| 2. | R32T0003 | [1] | LABEL | |
| 3. | 2432N599 | [1] | PLATE- CAUTION | |
| 4. | 2432T872 | [1] | LABEL | |
| 5. | 2432T859 | [2] | PLATE, CAUTION | |
| 6. | 2432J604 | [2] | NAME-PLATE | |
| 7. | 2432N598 | [1] | CHART, LUB | |
| 8. | 2432T865 | [1] | LABEL | |
| 9. | 2432P514 | [1] | PLATE,CAUTION | |
| 10. | 2432P512 | [1] | LABEL | |
| 11. | 2432P521 | [1] | LABEL | |
| 12. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 13. | 2432N563 | [1] | LABEL | |
| 11. | 2432T903 | [1] | LABEL | |
| 15. | 2132T977 | [1] | PLATE, CAUTION | |
| 16. | 2132T888 | [1] | PLATE, CAUTION | |
| 17. | 2432T979 | [1] | LABEL | |
