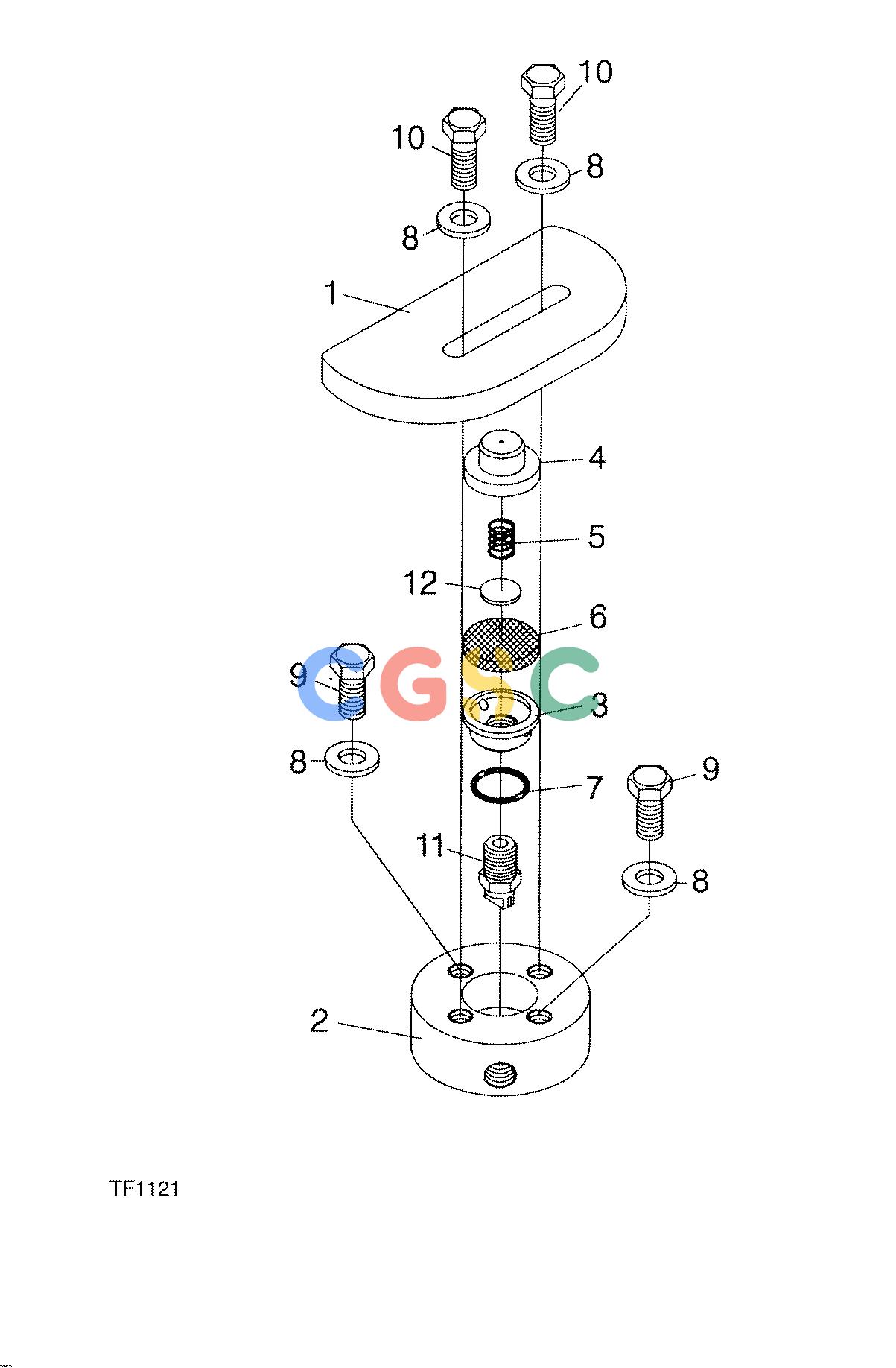

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| F052359 | [1] | Nozzle | ||
| 1. | F052360 | [1] | Plate | |
| 2. | F052811 | [1] | Housing | |
| 3. | F052812 | [1] | Clamp | |
| 4. | F052806 | [1] | Housing | |
| 5. | F052807 | [1] | Spring | |
| 6. | F052808 | [1] | RUBBER BELLOW | |
| 7. | F052804 | [1] | O-Ring | |
| 8. | F052805 | [4] | Plate | |
| 9. | F003531 | [2] | Screw | |
| 10. | F003536 | [2] | Screw | |
| 11. | F052802 | [1] | Nozzle | |
| 12. | F052803 | [1] | Plate |
