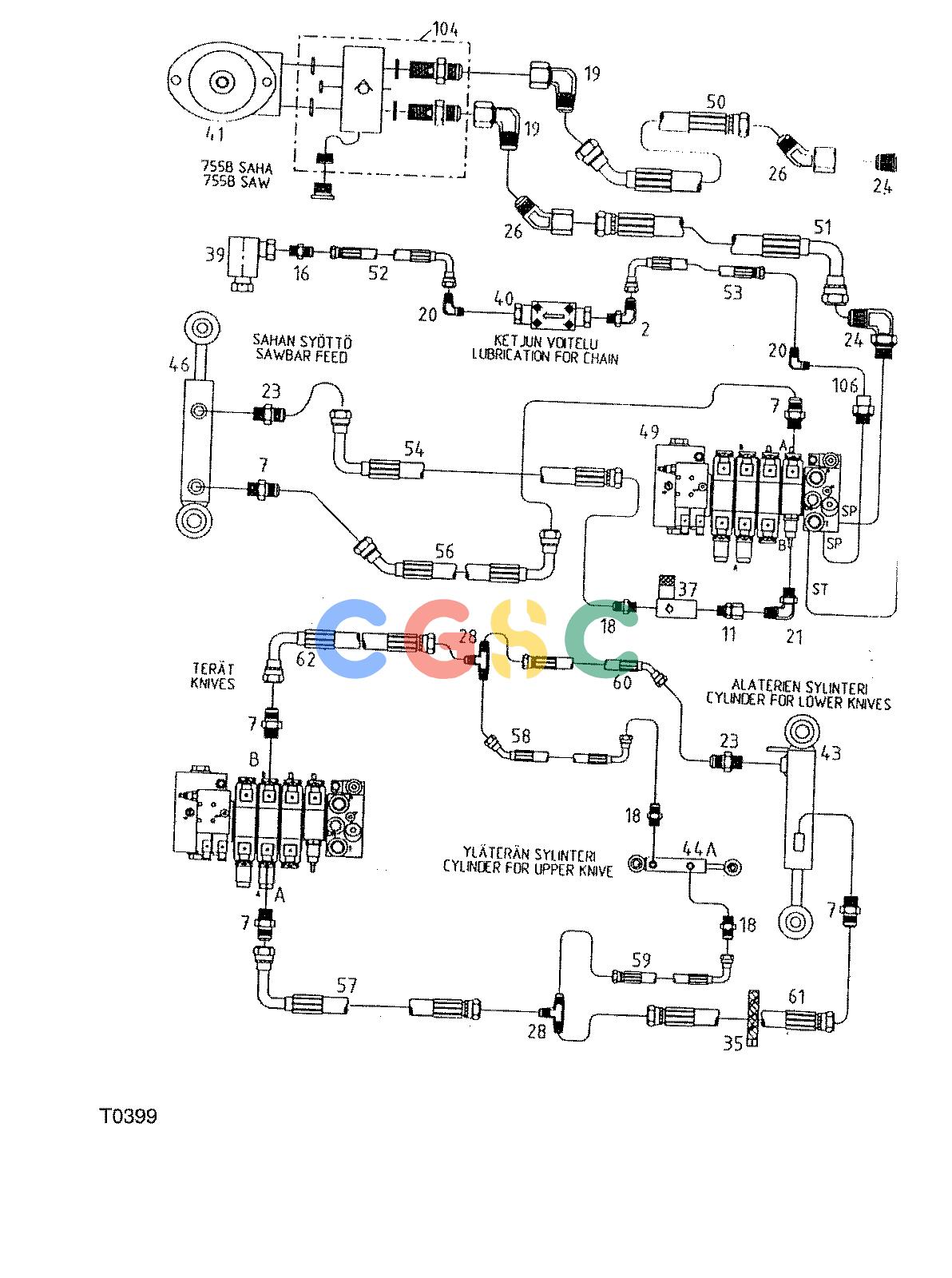

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042138 11 46 T0399 [T0399]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
F031937
|
[1] |
CONNECTION
|
|
| 7. |
F005055
|
[5] |
NIPPLE
|
|
| 11. |
F031883
|
[1] |
CONNECTION
|
|
| 16. |
F031884
|
[1] |
REPLACED
|
|
| 18. |
F031896
|
[3] |
CONNECTION
|
|
| 19. |
F005045
|
[2] |
ELBOW NIPPLE
|
|
| 20. |
F031885
|
[2] |
CONNECTION
|
|
| 21. |
F031897
|
[1] |
CONNECTION
|
|
| 23. |
F031898
|
[2] |
CONNECTION
|
|
| 24. |
F023026
|
[2] |
CONNECTION
|
|
| 26. |
F005089
|
[2] |
ELBOW NIPPLE
|
|
| 28. |
F022422
|
[2] |
T-CONNECTION
|
|
| 35. |
F008710
|
[1] |
Belt
|
|
| 37. |
F008675
|
[1] |
Check Valve
|
|
| 39. |
F003214
|
[1] |
SHAFT COUPLING
|
|
| 40. |
F002938
|
[1] |
Oil Pump
|
|
| |
F031886
|
[1] |
Pump
|
|
| 41. |
F024732
|
[1] |
Hydraulic Motor
|
|
| 43. |
F024721
|
[1] |
Cylinder
|
|
| 44A. |
F008569
|
[1] |
Cylinder
|
|
| 46. |
F024733
|
[1] |
Hydraulic Cylinder
|
|
| 49. |
F031887
|
[1] |
VALVE BLOCK
|
|
| 50. |
F031888
|
[1] |
HOSE-ASSY
|
|
| 51. |
F031940
|
[1] |
HOSE-ASSY
|
|
| 52. |
F031941
|
[1] |
HOSE-ASSY
|
|
| 53. |
F031942
|
[1] |
HOSE-ASSY
|
|
| 54. |
F031889
|
[1] |
HOSE-ASSY
|
|
| 56. |
F031944
|
[1] |
HOSE-ASSY
|
|
| 57. |
F031890
|
[1] |
HOSE-ASSY
|
|
| 58. |
F031891
|
[1] |
HOSE-ASSY
|
|
| 59. |
F031892
|
[1] |
HOSE-ASSY
|
|
| 60. |
F031893
|
[1] |
HOSE-ASSY
|
|
| 61. |
F031894
|
[1] |
HOSE-ASSY
|
|
| 62. |
F031895
|
[1] |
HOSE-ASSY
|
|
| 104. |
F031950
|
[1] |
VALVE BLOCK
|
|
| 106. |
F022105
|
[1] |
Valve
|
|
