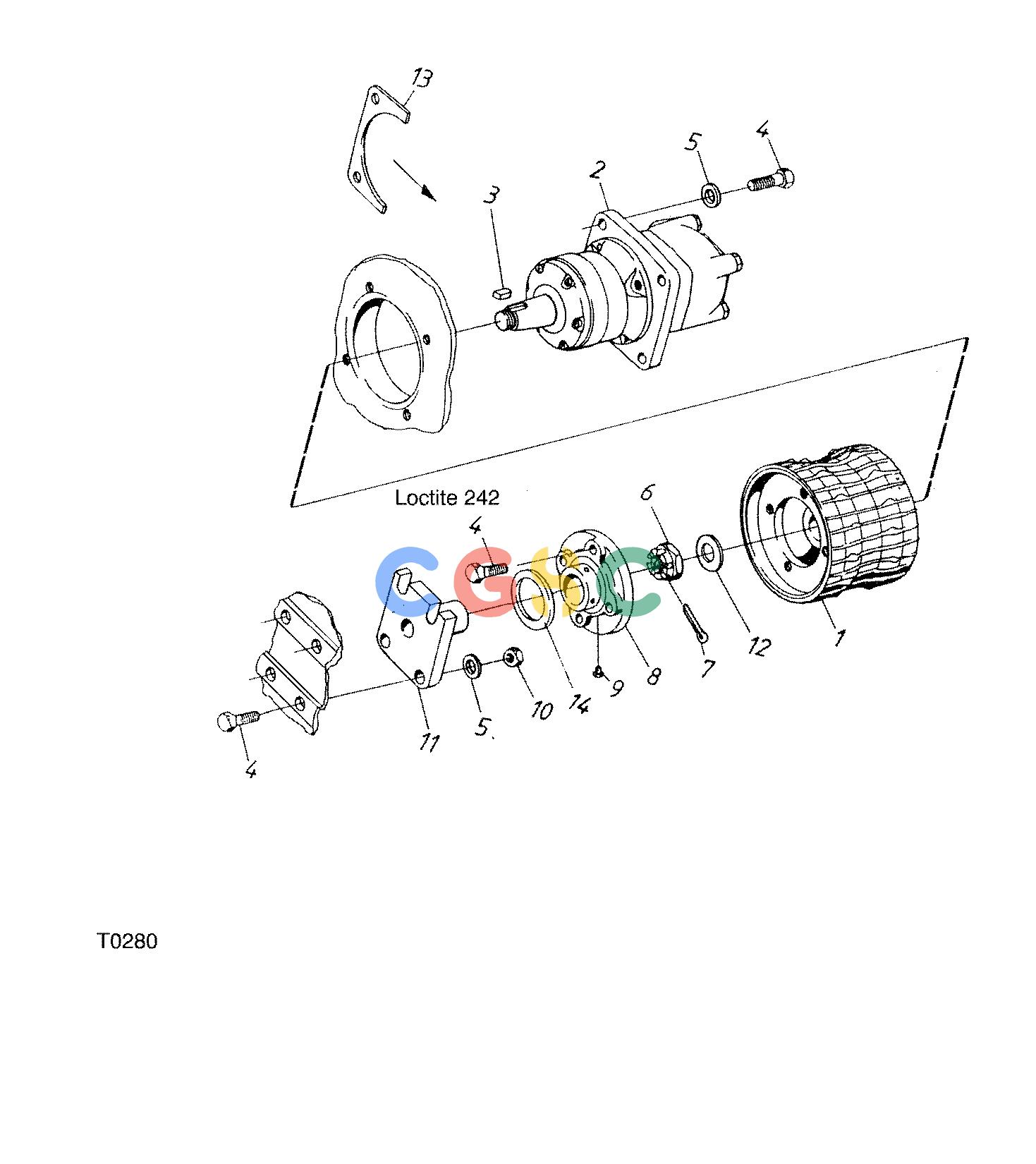

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE FEED ROLL F042138 11 10 T0280 [T0280]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024736
|
[1] |
Roller
|
|
| |
F024737
|
[1] |
Roller
|
|
| 2. |
F034495
|
[1] |
Hydraulic Motor
|
|
| 3. |
F024739
|
[1] |
Wedge
|
|
| 4. |
F004648
|
[12] |
Screw
|
|
| 5. |
F003341
|
[8] |
Washer
|
|
| 6. |
F024740
|
[1] |
CASTLE NUT
|
|
| 7. |
F003335
|
[1] |
SPLIT PIN
|
|
| 8. |
F024741
|
[1] |
BEARING HOUSING ASSY
|
|
| 9. |
F008542
|
[1] |
Screw
|
|
| 10. |
F003591
|
[4] |
Lock Nut
|
|
| 11. |
F024742
|
[1] |
Support
|
|
| 12. |
F024743
|
[1] |
Washer
|
|
| 13. |
F024744
|
|
Shim
|
|
| 14. |
F052834
|
[1] |
PROTECTION PLATE
|
|
| |
F022693
|
[1] |
LOCKING FLUID
|
|
