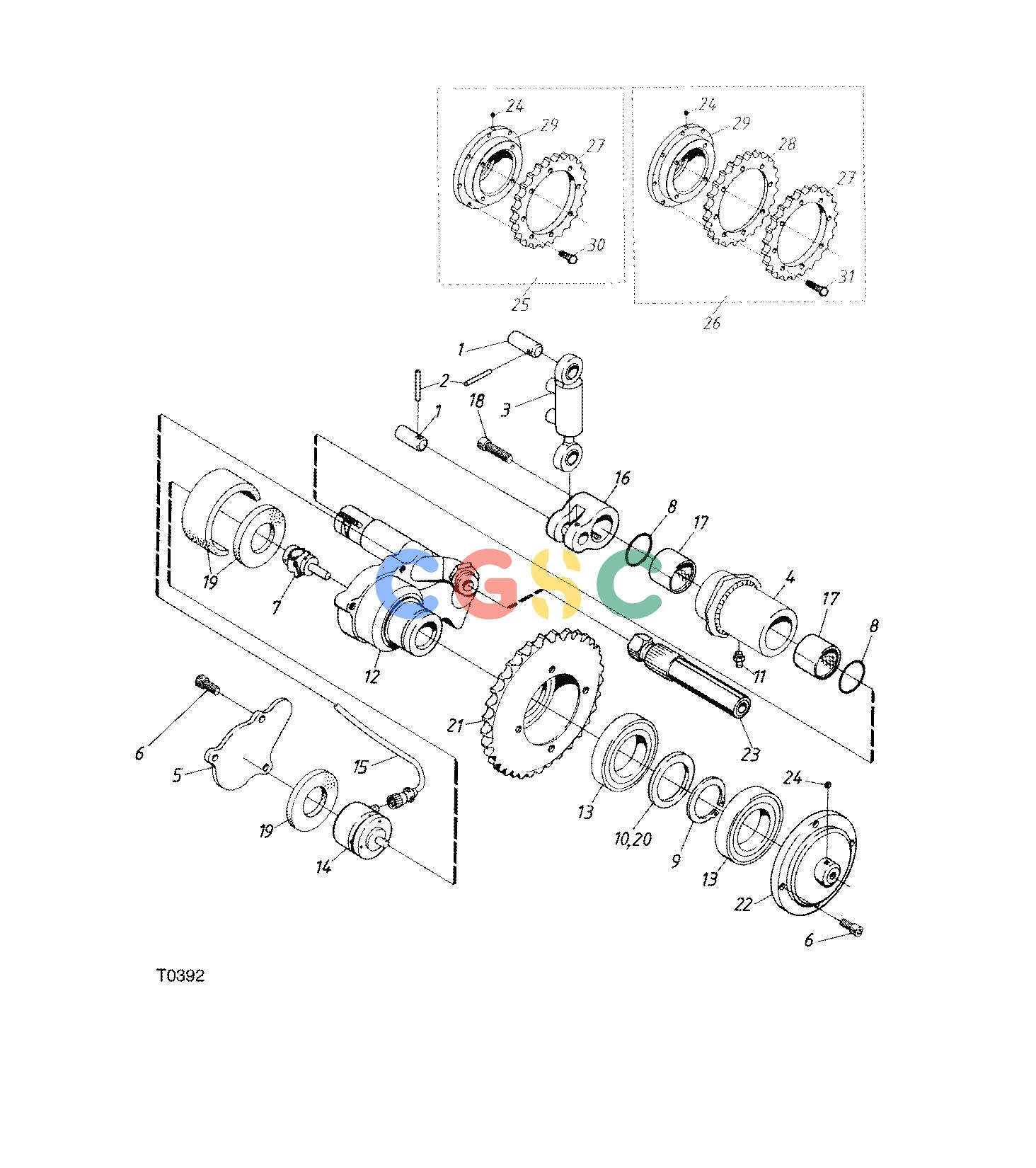

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE MEASURING WHEEL F042138 11 20 T0392 [T0392]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F024797
|
[1] |
MEASURING DEVICE
|
|
| 1. |
F003260
|
[2] |
Pin
|
|
| 2. |
F032060
|
[2] |
Spring Pin
|
|
| 3. |
F008569
|
[1] |
Cylinder
|
|
| 4. |
F024798
|
[1] |
BEARING HOUSING
|
|
| 5. |
F024799
|
[1] |
Cover
|
|
| 6. |
F008572
|
[7] |
Screw
|
|
| 7. |
F010765
|
[1] |
Clutch
|
|
| 8. |
F024800
|
[2] |
O-Ring
|
|
| 9. |
F004752
|
[1] |
CIRCLIP
|
|
| 10. |
F008575
|
[2] |
SUPPORT PLATE
|
|
| 11. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 12. |
F024801
|
[1] |
MEASURING DEVICE
|
|
| 13. |
F005546
|
[2] |
Ball Bearing
|
|
| 14. |
F005559
|
[1] |
Sensor
|
|
| 15. |
F005813
|
[1] |
CABLE HARNESS
|
|
| 16. |
F024802
|
[1] |
Holder
|
|
| 17. |
F031001
|
[2] |
Bushing
|
|
| 18. |
F008647
|
[2] |
Screw
|
|
| 19. |
F008580
|
[1] |
INSULATION
|
|
| 20. |
F021571
|
[%] |
Shim
|
|
| 21. |
F024803
|
[1] |
SPROCKET WHEEL
|
|
| 21. |
F048979
|
[1] |
SPROCKET WHEEL
|
|
| 22. |
F024804
|
[1] |
Cover
|
|
| 23. |
F024805
|
[1] |
HOSE-ASSY
|
|
| 23. |
F052840
|
[1] |
HOSE-ASSY
|
|
| 24. |
F003466
|
[1] |
STOP SCREW
|
|
| 25. |
F056641
|
[1] |
MEASURING ROLL
|
|
| 26. |
F056621
|
[1] |
MEASURING ROLL
|
|
| 27. |
F056642
|
[1] |
GEAR RIM
|
|
| 28. |
F056639
|
[1] |
GEAR RIM
|
|
| 29. |
F056640
|
[1] |
Frame
|
|
| 30. |
F011418
|
[8] |
Screw
|
|
| 31. |
F025186
|
[8] |
Screw
|
|
