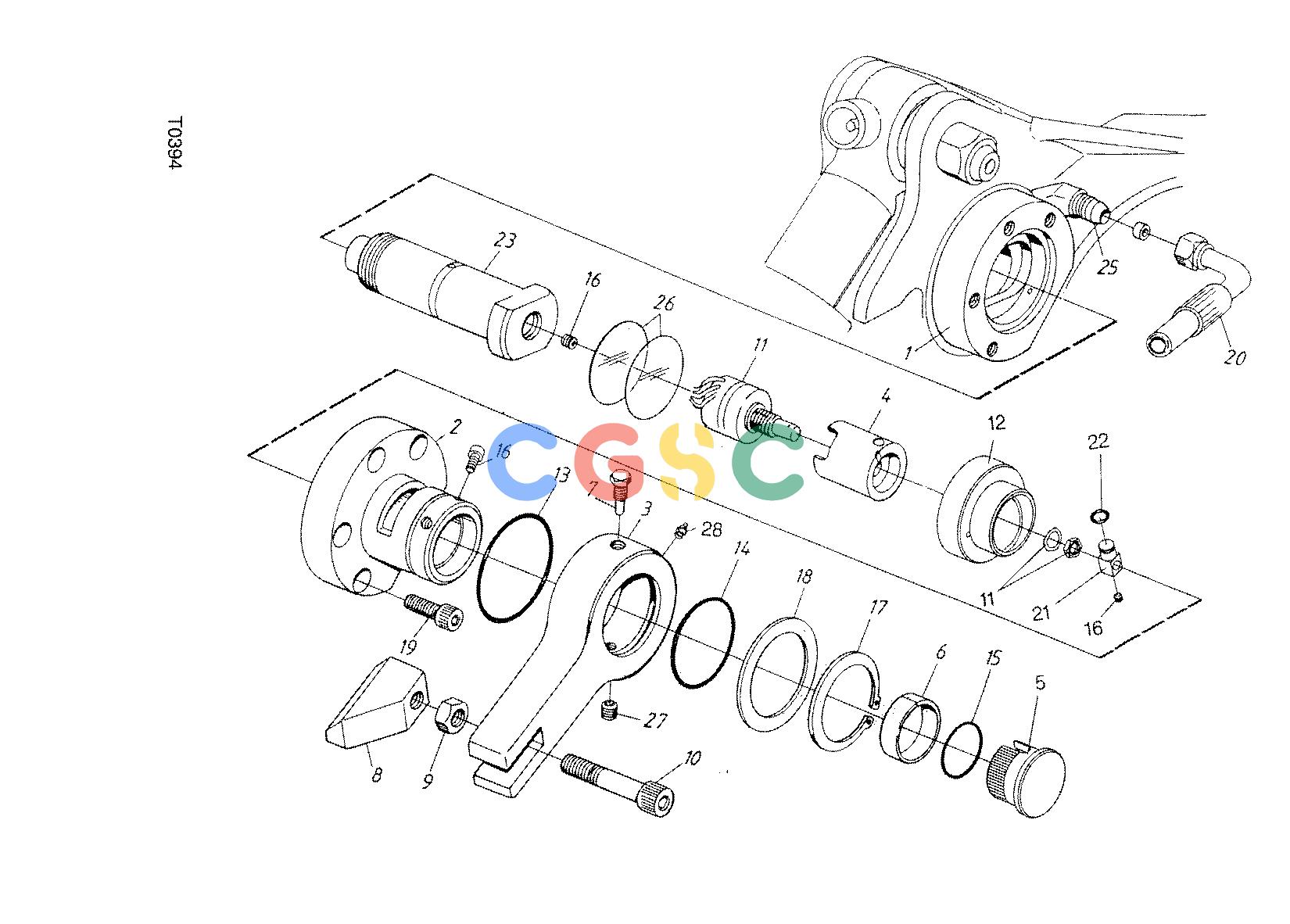

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE DIAMETER MEASURING F042138 11 24 T0394 [T0394]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F052857
|
[1] |
MEASURING DEVICE
|
|
| 1. |
F032082
|
[1] |
Housing
|
|
| 2. |
F032083
|
[1] |
Housing
|
|
| 3. |
F032084
|
[1] |
Arm
|
|
| |
F032085
|
[1] |
Arm
|
|
| 4. |
F032064
|
[1] |
Cover
|
|
| 5. |
F032065
|
[1] |
Cover
|
|
| 5. |
F029136
|
[1] |
Cover
|
|
| 6. |
F032066
|
[1] |
Sleeve
|
|
| 7. |
F032086
|
[1] |
Screw
|
|
| 8. |
F032087
|
[1] |
Guide
|
|
| |
F032088
|
[1] |
Guide
|
|
| 9. |
F003569
|
[1] |
Nut
|
|
| 10. |
F010666
|
[1] |
Screw
|
|
| 11. |
F021413
|
[1] |
Sensor
|
|
| 12. |
F032072
|
[1] |
Bearing
|
|
| 12. |
F052844
|
[1] |
Bearing
|
|
| 13. |
F032073
|
[1] |
O-Ring
|
|
| 14. |
F032074
|
[1] |
O-Ring
|
|
| 15. |
F032075
|
[1] |
O-Ring
|
|
| 16. |
F003466
|
[3] |
STOP SCREW
|
|
| 17. |
F003360
|
[1] |
CIRCLIP
|
|
| 18. |
F032076
|
[1] |
Spacer
|
|
| 19. |
F010537
|
[4] |
Screw
|
|
| 20. |
F024789
|
[1] |
HOSE-ASSY
|
|
| |
F032089
|
[1] |
Hose
|
|
| 21. |
F021573
|
[1] |
Clutch
|
|
| |
F047711
|
[1] |
Clutch
|
|
| 22. |
F032018
|
[1] |
STOP SCREW
|
|
| |
F047690
|
[1] |
O-Ring
|
|
| 23. |
F024753
|
[1] |
Pin
|
|
| 25. |
F032090
|
[1] |
CONNECTION
|
|
| 26. |
F032091
|
[2] |
INSULATION
|
|
| 27. |
F008587
|
[1] |
STOP SCREW
|
|
| 28. |
F003727
|
[1] |
GREASE NIPPLE
|
|
