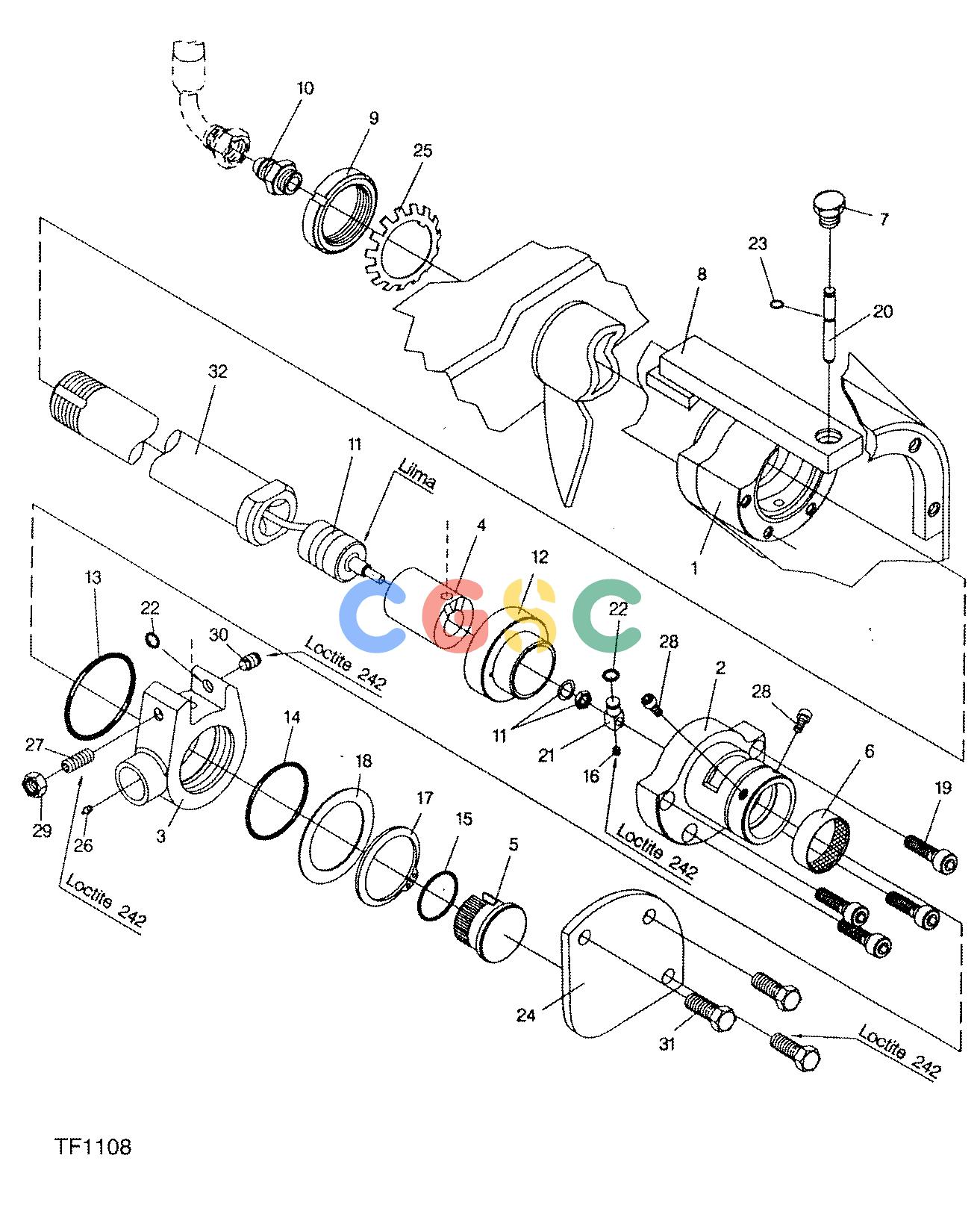

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE DIAMETER MEASURING F042138 11 22.1 TF1108 [TF1108]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F052850
|
[1] |
MEASURING DEVICE
|
|
| 1. |
F052851
|
[1] |
Blade
|
|
| 2. |
F032062
|
[1] |
Housing
|
|
| 3. |
F052852
|
[1] |
PROTECTION
|
|
| |
F052847
|
[1] |
PROTECTION
|
|
| 4. |
F032064
|
[1] |
Cover
|
|
| 5. |
F052848
|
[1] |
END PIECE
|
|
| 6. |
F032066
|
[1] |
Sleeve
|
|
| 7. |
F052849
|
[1] |
Screw
|
|
| 8. |
F032068
|
[1] |
LOCKING PLATE
|
|
| 9. |
F035447
|
[1] |
Nut
|
|
| 10. |
F005060
|
[1] |
NIPPLE
|
|
| 11. |
F021413
|
[1] |
Sensor
|
|
| 12. |
F052844
|
[1] |
BEARING SLEEVE
|
|
| 13. |
F032073
|
[1] |
O-Ring
|
|
| 14. |
F032074
|
[1] |
O-Ring
|
|
| 15. |
F032075
|
[1] |
O-Ring
|
|
| 16. |
F003466
|
[1] |
STOP SCREW
|
|
| 17. |
F003360
|
[1] |
CIRCLIP
|
|
| 18. |
F032076
|
[1] |
Spacer
|
|
| 19. |
F010537
|
[4] |
Screw
|
|
| 20. |
F052845
|
[1] |
Pin
|
|
| 21. |
F047711
|
[1] |
Clutch
|
|
| 22. |
F047690
|
[2] |
O-Ring
|
|
| 23. |
F052846
|
[1] |
O-Ring
|
|
| 24. |
F052843
|
[1] |
PROTECTION PLATE
|
|
| 25. |
F032080
|
[1] |
Lock Washer
|
|
| 26. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 27. |
F030744
|
[1] |
STOP SCREW
|
|
| 28. |
F003399
|
[2] |
Screw
|
|
| 29. |
F027813
|
[1] |
Lock Nut
|
|
| 30. |
F008586
|
[1] |
STOP SCREW
|
|
| 31. |
F003539
|
[3] |
Screw
|
|
| 32. |
F032081
|
[1] |
Pin
|
|
| |
F022693
|
[1] |
LOCKING FLUID
|
|
