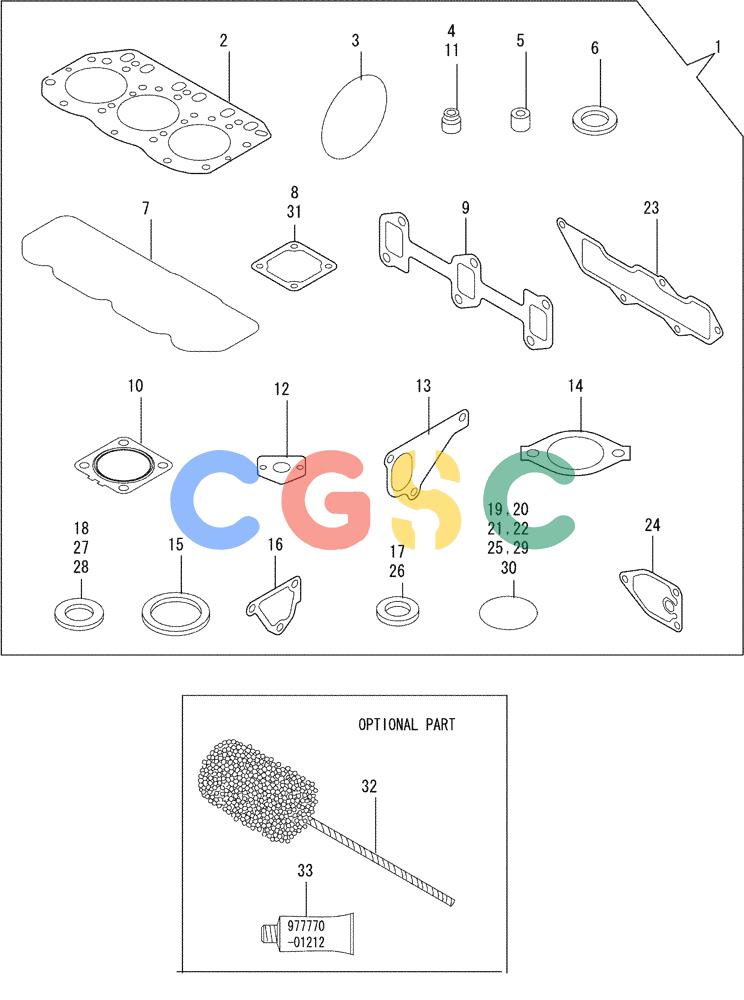

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-016) - GASKET SET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
286 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV72900192690 | [1] | GASKET KIT | KOBGASKET SET (NON-ASB.) (OPTIONAL) |
| 2. | VV12900101340 | [1] | GASKET | KOBGASKET, (NON-ASB.) |
| 3. | VV12185051960 | [1] | O-RING | KOBO-RING, F.I. PUMP |
| 4. | VV12446011340 | [3] | SEAL | KOBSEAL, VALVE STEM |
| 5. | VV11980211870 | [3] | PROTECTOR | KOBPROTECTOR, NOZZLE |
| 6. | VV11962511880 | [3] | SEAT | KOBSEAT, NOZZLE |
| 7. | VV12900411310 | [1] | GASKET | KOBGASKET, BONNET |
| 8. | VV12915077511 | [1] | PACKAGE,SERVICE | KOBGASKET, (NON-ASB.) |
| 9. | VV12915013110 | [1] | MANIFOLD GASKET | KOBGASKET, EXH. MANIFOLD |
| 10. | VV12900413200 | [1] | GASKET | KOBGASKET, SILENCER Superseded by part number: VV11951513200 |
| 11. | VV12140011340 | [3] | SEAL | KOBSEAL, VALVE STEM |
| 12. | VV12915035041 | [1] | GASKET | KOBGASKET, (NON-ASB.) Superseded by part number: VV12915035042 |
| 13. | VV12948642021 | [1] | GASKET | KOBGASKET |
| 14. | VV12979549551 | [1] | GASKET | KOBGASKET, (NON-ASB.) |
| 15. | VV12915049811 | [1] | GASKET | KOBGASKET, (NON-ASB.) |
| 16. | VV12439549840 | [1] | GASKET | KOBGASKET, THERMO. CASE |
| 17. | VV22190080002 | [2] | SEAL | KOBSEAL WASHER 8S |
| 18. | VV12446544950 | [2] | GASKET | KOBGASKET 16 |
| 19. | VV24311000120 | [3] | O-RING | KOBO-RING 1A P 12.0 Superseded by part number: ZD11P01200 |
| 20. | VV24311000320 | [2] | O-RING | KOBO-RING 1A P-32.0 Superseded by part number: ZD11P03200 |
| 21. | VV24341000240 | [1] | O-RING | KOBO-RING 1A S-24.0 |
| 22. | VV12948642140 | [1] | O-RING | KOBO-RING, CW-P |
| 23. | VV12900112110 | [1] | MANIFOLD GASKET | KOBGASKET,INT. MANIFOLD |
| 24. | VV12915035111 | [1] | GASKET | KOBGASKET, (NON-ASB.) |
| 25. | VV11960932040 | [4] | O-RING | KOBO-RING P16 |
| 26. | VV22190100002 | [2] | SEAL | KOBSEAL WASHER 10S |
| 27. | VV23414080000 | [1] | SEAL | KOBGASKET 8, ROUND |
| 28. | VV12915049360 | [1] | PACKING | KOBGASKET 10 |
| 29. | VV24311000150 | [1] | O-RING | KOBO-RING 1A P-15.0 Superseded by part number: ZD11P01500 |
| 30. | VV24341000250 | [1] | O-RING | KOBSEAL WASHER 22S |
| 31. | VV12910077510 | [1] | GASKET | KOBGASKET, AIR HEATER |
| 32. | VV12940092430 | [1] | FLEXIBLE HOSE | KOBHORN, FLEX (OPTIONAL) |
| 33. | VV97777001212 | [1] | GASKET | KOBGASKET, LIQUID (OPTIONAL) Superseded by part number: VV9777701207F |
