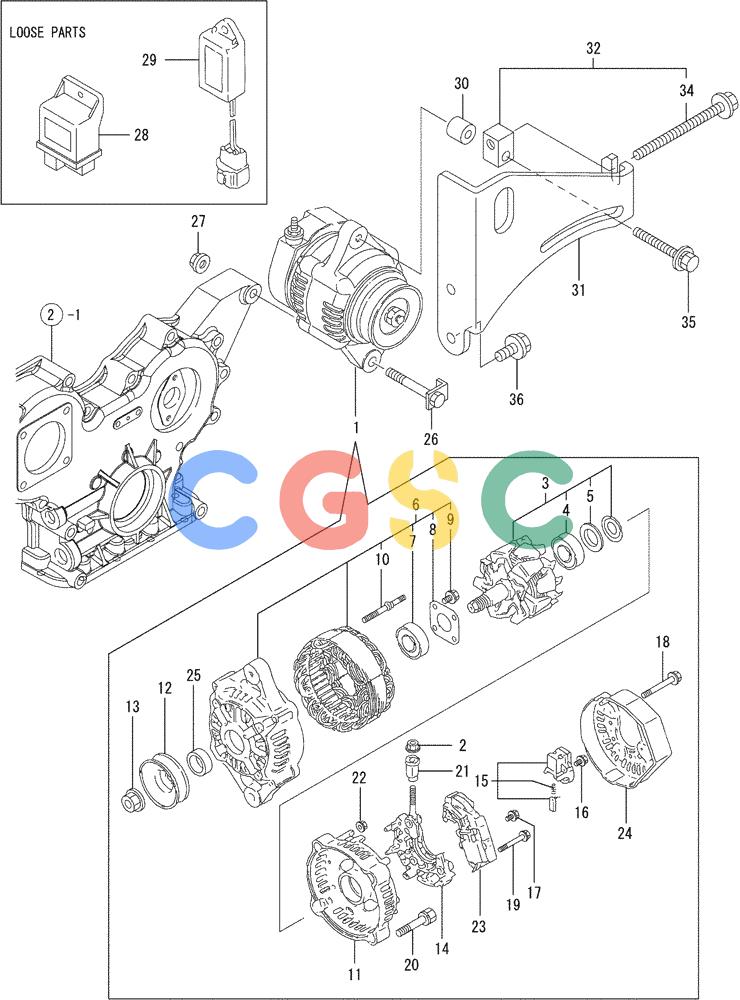

纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (08-015) - GENERATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VV11962677210 | [1] | ALTERNATOR,12V, 55 Amp | KOBALTERNATOR ASSY |
| 2. | VVX9490561001 | [1] | NUT | KOBNUT |
| 3. | VV12905277380 | [1] | ROTATOR | KOBROTATOR ASSY Superseded by part number: VV11962677210 |
| 4. | VV12530179240 | [1] | BALL BEARING | KOBBALL BEARING Superseded by part number: VV12350179240 |
| 5. | VV11962079250 | [1] | COVER ASSY | KOBCOVER, BEARING |
| 6. | VV12905277422 | [1] | FRAME ASSY | KOBFRAME ASSY |
| 7. | VV11962079200 | [1] | BALL BEARING | KOBBALL BEARING |
| 8. | VV11962079210 | [1] | PLATE | KOBPLATE |
| 9. | VV11962079220 | [4] | SCREW | KOBSCREW |
| 10. | VV11962079230 | [2] | BOLT | KOBBOLT, STUD |
| 11. | VV12840177440 | [1] | FRAME | KOBFLAME |
| 12. | VV11962077461 | [1] | PULLEY | KOBPULLEY |
| 13. | VV11962077471 | [1] | NUT | KOBNUT |
| 14. | VV12905279260 | [1] | HOLDER | KOBHOLDER, SUB, RECTIFIER |
| 15. | VV12905279270 | [1] | HOLDER | KOBHOLDER, BRUSH |
| 16. | VV11962079290 | [6] | SCREW | KOBSCREW |
| 17. | VV11962079300 | [1] | SCREW | KOBSCREW |
| 18. | VV11962079310 | [3] | BOLT | KOBBOLT |
| 19. | VV11962079320 | [2] | SCREW | KOBSCREW W/WASHER |
| 20. | VV11962079330 | [2] | BOLT | KOBBOLT |
| 21. | VV11962079340 | [1] | FOAM INSULATION | KOBINSULATION BUSH |
| 22. | VV11962079350 | [2] | NUT | KOBNUT |
| 23. | VV11962677710 | [1] | REGULATOR | KOBREGULATOR ASSY Superseded by part number: VV12942377710 |
| 24. | VV11962677450 | [1] | COVER ASSY | KOBCOVER, END, RR |
| 25. | VV11962077490 | [1] | COLLAR | KOBCOLLAR |
| 26. | VV11974077250 | [1] | BOLT | KOBBOLT, M10 X 76 |
| 27. | VV26306100002 | [1] | NUT,M10 | KOBNUT |
| 28. | VV11980277200 | [1] | RELAY | KOBYANMAR DIESEL PART, Safety |
| 29. | VV12921177920 | [1] | SWITCH | KOBTIMER, YANMAR DIESEL PART |
| 30. | VV12473277340 | [1] | SPACER | KOBSPACER |
| 31. | VV12924277310 | [1] | ADJUSTER | KOBADJUSTER, BELT |
| 32. | VV12961677350 | [1] | BLOCK ASSY. | KOBBLOCK ASSY, ADJUSTER |
| 34. | VV26106081004 | [1] | BOLT | KOBBOLT, 8 100 |
| 35. | VV26106080602 | [1] | BOLT,M8 x 60mm | KOBBOLT, M8 X 60 PLATED |
| 36. | VV26106080162 | [2] | BOLT,M8 x 16mm | KOBBOLT, M8 X 16 PLATED |
