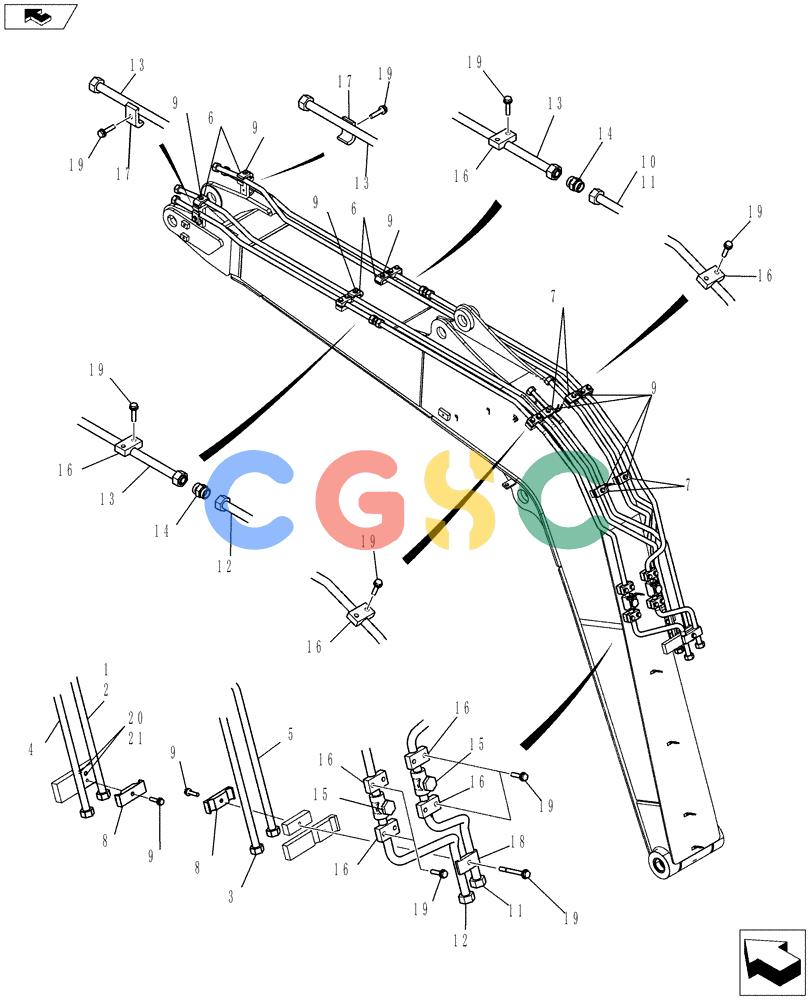

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (03-008[00]) - HYDRAULIC LINES, BOOM (NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT42H00184F1 | [1] | Boom, Nibbler & Breaker | |
| 1. | YT42H00175F1 | [1] | Boom | |
| 2. | YT42H01553P1 | [1] | PIPE | KOB |
| 3. | YT42H01554P1 | [1] | PIPE | KOB |
| 4. | YT42H01555P1 | [1] | PIPE | KOB |
| 5. | YT42H01556P1 | [1] | PIPE | KOB |
| 6. | ZC26X22011 | [4] | CLAMP | KOB |
| 7. | ZC36X22011 | [4] | CLAMP | KOB |
| 8. | YT42H01562P1 | [2] | CLAMP | KOB |
| 9. | ZM73C10045 | [10] | BOLT,M10x45mm - Course Thread | KOBSems |
| 10. | YT42H00176F1 | [1] | Boom | |
| 11. | YT42H01557P1 | [1] | PIPE | KOB |
| 12. | YT42H01558P1 | [1] | PIPE | KOB |
| 13. | YT42H01439P1 | [2] | TUBE | KOB |
| 14. | ZA23B22000 | [2] | HYD CONNECTOR | KOB |
| 15. | ZE72X12000 | [2] | PLUG | KOB |
| 16. | YT43H01116P1 | [8] | CLAMP | KOB |
| 20. | YT42H01564F1 | [1] | | |
| 21. | YN64H01393D1 | [2] | CAP | KOB |
