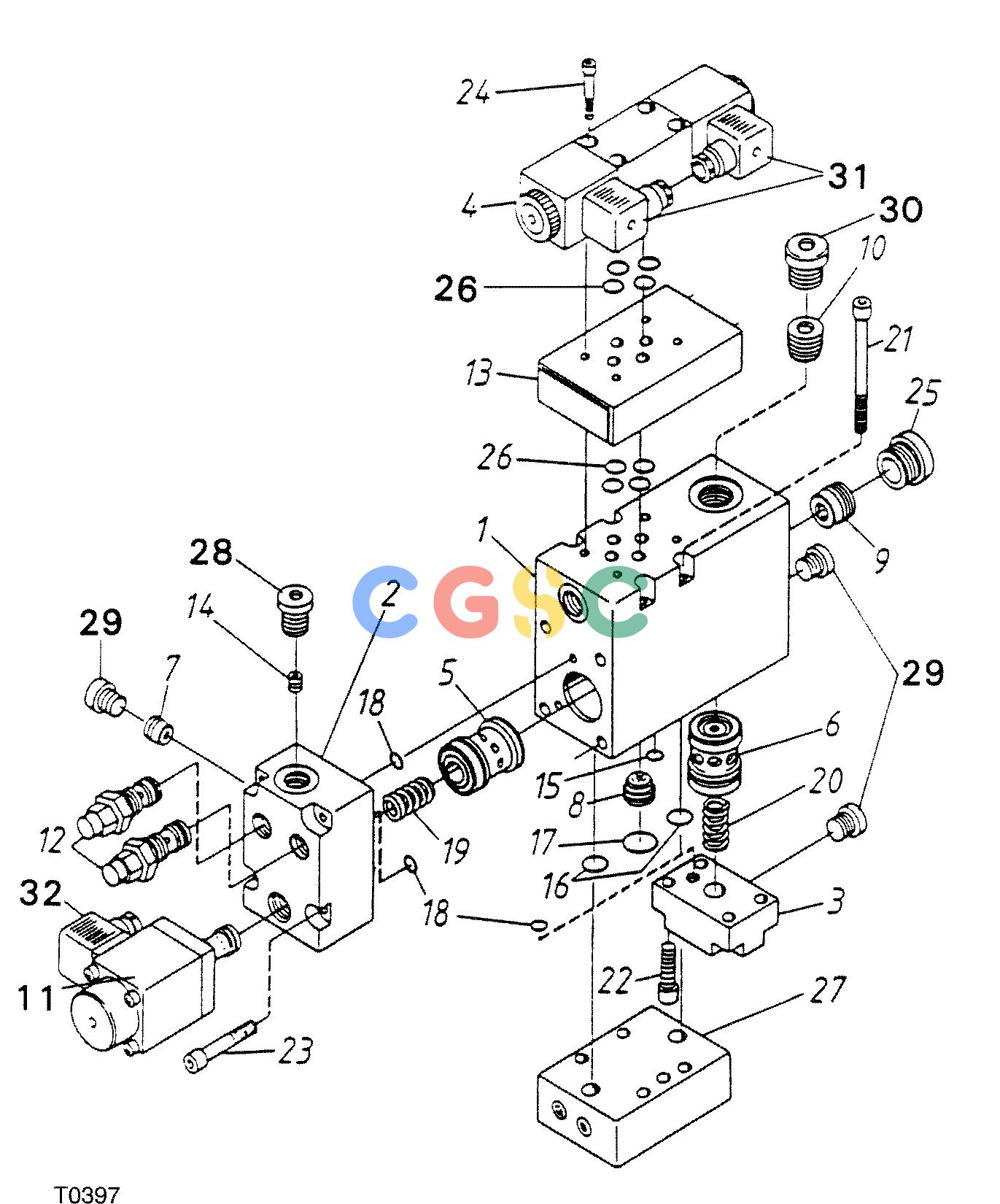

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE VALVE BLOCK F042138 11 38 T0397 [T0397]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F034547
|
[1] |
BLOCK SECTION ASSY
|
|
| 1. |
F021603
|
[1] |
VALVE BLOCK
|
|
| 2. |
F021604
|
[1] |
VALVE BLOCK
|
|
| 3. |
F031880
|
[1] |
BLOCK
|
|
| 4. |
F008632
|
[1] |
Control Valve
|
|
| |
F008633
|
[1] |
Seal Kit
|
|
| |
F008453
|
[2] |
Solenoid
|
|
| 5. |
F018805
|
[1] |
RELIEF CARTRIDGE
|
|
| |
F008638
|
[1] |
Seal Kit
|
|
| 6. |
F008640
|
[1] |
RELIEF CARTRIDGE
|
|
| |
F008638
|
[1] |
Seal Kit
|
|
| 7. |
F008631
|
[1] |
Check Valve
|
|
| |
F021605
|
[1] |
O-Ring
|
|
| 8. |
F018776
|
[1] |
Check Valve
|
|
| |
F021607
|
[1] |
O-Ring
|
|
| 9. |
F018813
|
[1] |
Check Valve
|
|
| |
F021609
|
[1] |
O-Ring
|
|
| 10. |
F018814
|
[1] |
Check Valve
|
|
| |
F021609
|
[1] |
O-Ring
|
|
| 11. |
F018806
|
[1] |
Relief Valve
|
|
| 11. |
F056206
|
[1] |
Relief Valve
|
|
| |
F021612
|
[1] |
Seal Kit
|
|
| 12. |
F018808
|
[2] |
Relief Valve
|
|
| |
F021614
|
[2] |
Seal Kit
|
|
| 13. |
F021615
|
[1] |
FLAT PIECE
|
|
| 14. |
F018787
|
[1] |
THROTTLE SCREW
|
|
| 15. |
F003285
|
[1] |
O-Ring
|
|
| 16. |
F018771
|
[2] |
O-Ring
|
|
| 17. |
F018768
|
[1] |
O-Ring
|
|
| 18. |
F018772
|
[3] |
O-Ring
|
|
| 19. |
F008639
|
[1] |
Spring
|
|
| 20. |
F031881
|
[1] |
Spring
|
|
| 21. |
F032093
|
[4] |
Screw
|
|
| 22. |
F010749
|
[4] |
Screw
|
|
| 23. |
F010828
|
[4] |
Screw
|
|
| 24. |
F010706
|
[4] |
Screw
|
|
| 25. |
F005570
|
[1] |
Plug
|
|
| 26. |
F003286
|
[8] |
O-Ring
|
|
| 27. |
F031879
|
[1] |
BLOCK
|
|
| 28. |
F035104
|
[1] |
Plug
|
|
| 29. |
F003382
|
[3] |
Plug
|
|
| 30. |
F005570
|
[1] |
Plug
|
|
| 31. |
F004578
|
[2] |
Connector
|
|
| 32. |
F035105
|
[1] |
Connector
|
|
