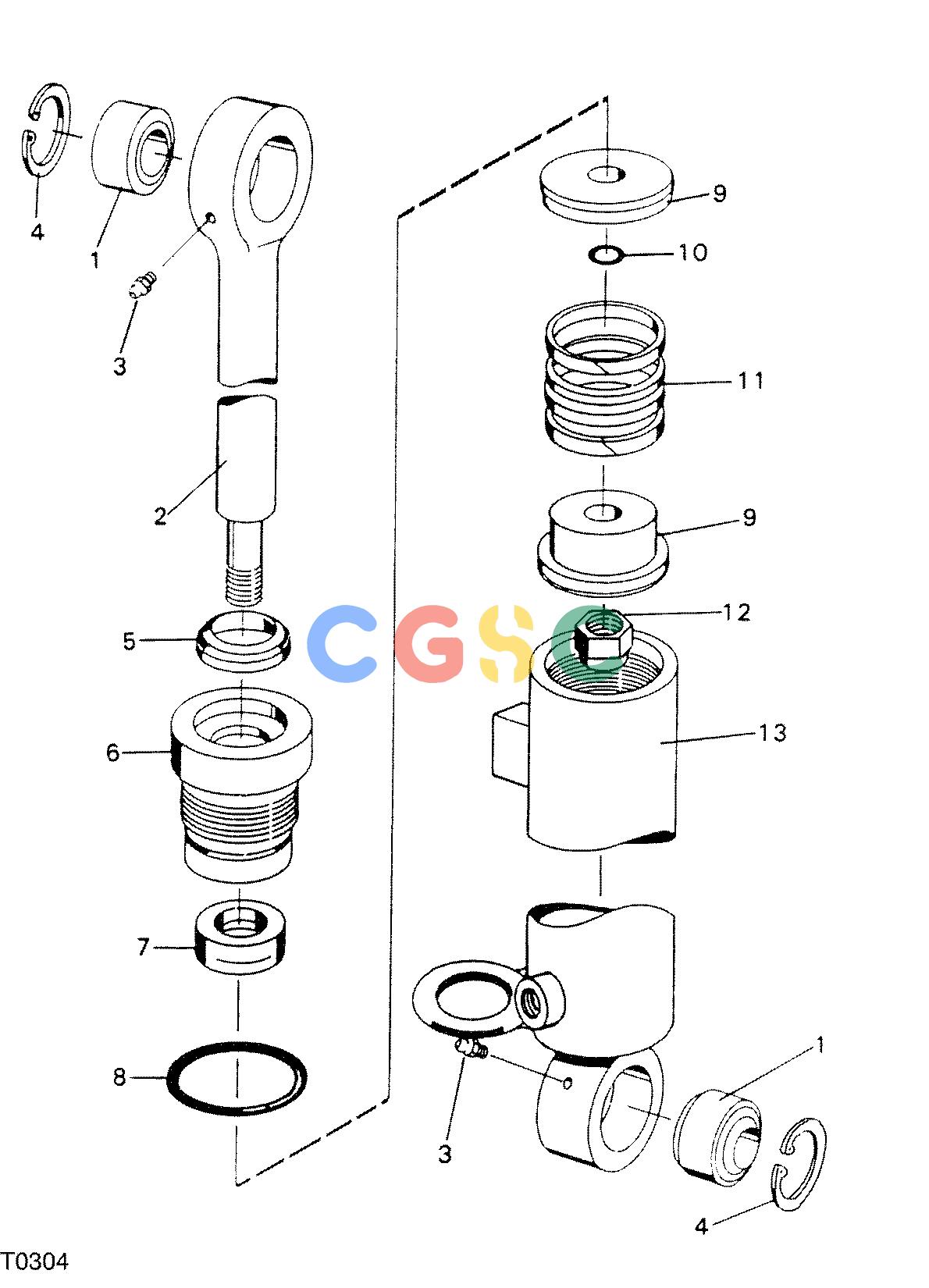

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE CYLINDER F042138 11 60 T0304 [T0304]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F024721
|
[1] |
Cylinder
|
|
| 1. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 2. |
F024843
|
[1] |
PISTON ROD
|
|
| 3. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 4. |
F003370
|
[4] |
CIRCLIP
|
|
| 5. |
F035265
|
[1] |
Scraper
|
|
| 6. |
F035266
|
[1] |
PISTON GUIDE
|
|
| 7. |
F035267
|
[1] |
Seal
|
|
| 8. |
F035268
|
[1] |
O-Ring
|
|
| 9. |
F031002
|
[1] |
Piston
|
|
| 10. |
F005634
|
[1] |
O-Ring
|
|
| 11. |
F035269
|
[1] |
Seal
|
|
| 12. |
F017875
|
[1] |
Lock Nut
|
|
| 13. |
F035270
|
[1] |
CYLINDER TUBE
|
|
| |
F031003
|
[1] |
Seal Kit
|
|
| |
F024696
|
[1] |
Seal Kit
|
|
