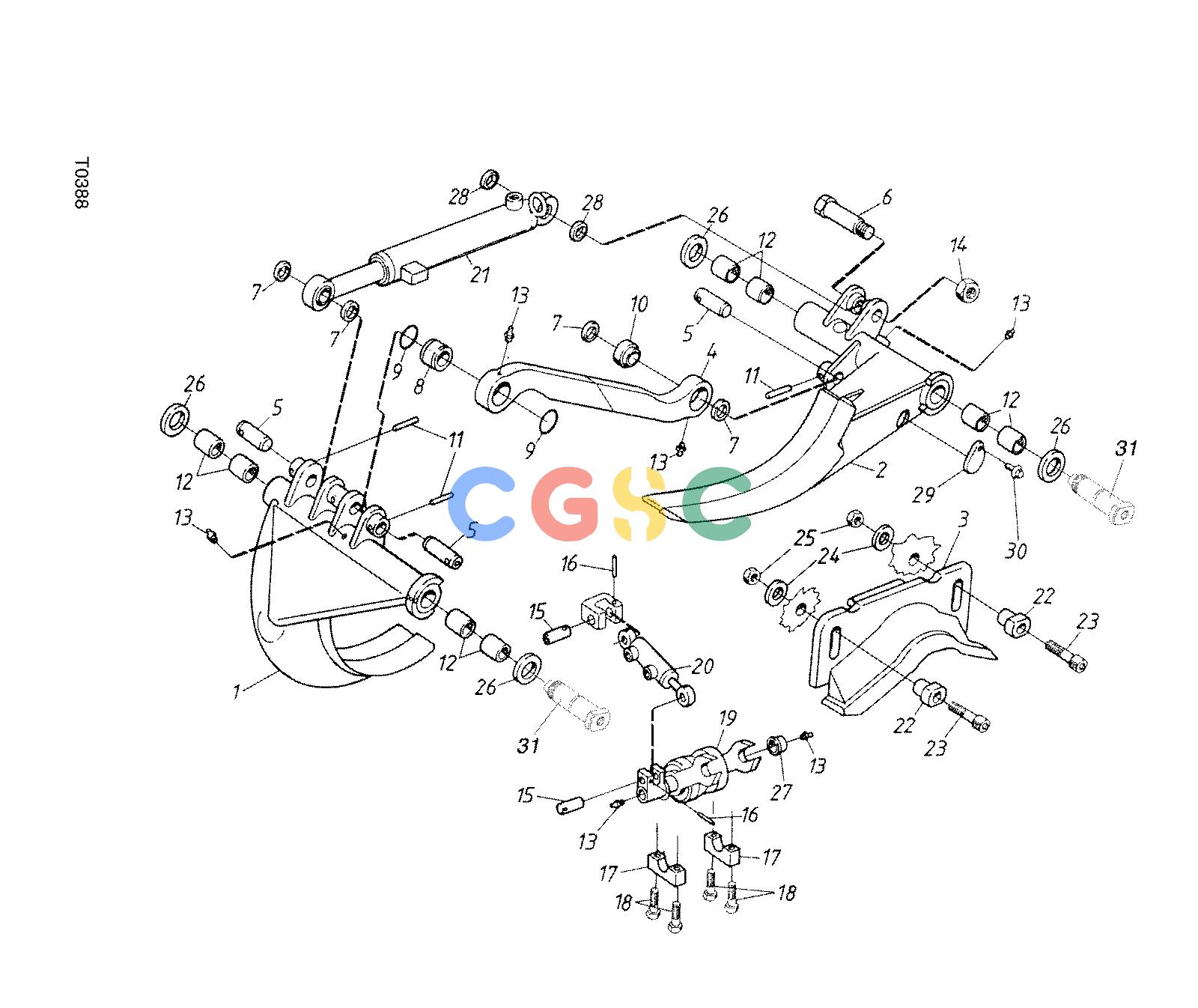

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE KNIVES F042138 11 6 T0388 [T0388]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
848 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F032054
|
[1] |
DELIMBING KNIFE
|
|
| 2. |
F032055
|
[1] |
DELIMBING KNIFE
|
|
| 3. |
F024712
|
[1] |
Knife
|
|
| 4. |
F032056
|
[1] |
Link
|
|
| 5. |
F024714
|
[3] |
Pin
|
|
| 6. |
F024715
|
[1] |
Pin
|
|
| 7. |
F024703
|
[4] |
Spacer
|
|
| 8. |
F024716
|
[1] |
Bushing
|
|
| 9. |
F005637
|
[2] |
O-Ring
|
|
| 10. |
F003818
|
[1] |
SPHERICAL BEARING
|
|
| 11. |
F003619
|
[3] |
Spring Pin
|
|
| 12. |
F024718
|
[8] |
BEARING BUSHING
|
|
| 13. |
F003727
|
[6] |
GREASE NIPPLE
|
|
| 14. |
F024735
|
[1] |
Lock Nut
|
|
| 15. |
F003260
|
[2] |
Pin
|
|
| 16. |
F003616
|
[2] |
Spring Pin
|
|
| 17. |
F024719
|
[2] |
Lug
|
|
| 18. |
F003493
|
[4] |
Screw
|
|
| 19. |
F024720
|
[1] |
Lever
|
|
| 20. |
F008569
|
[1] |
Cylinder
|
|
| |
F031994
|
[1] |
Cylinder
|
|
| 21. |
F024721
|
[1] |
Cylinder
|
|
| 22. |
F024722
|
[2] |
Guide
|
|
| 23. |
F010666
|
[2] |
Screw
|
|
| 24. |
F003341
|
[2] |
Washer
|
|
| 25. |
F003591
|
[2] |
Lock Nut
|
|
| 26. |
F024723
|
[4] |
Spacer
|
|
| 27. |
F024724
|
[1] |
BEARING BUSHING
|
|
| 28. |
F008536
|
[2] |
Sleeve
|
|
| 29. |
F032057
|
[1] |
COVER PLATE
|
|
| 30. |
F008445
|
[1] |
Screw
|
|
| 31. |
-------
|
[2] |
Shaft
|
|
| |
F035446
|
[1] |
Repair Kit
|
|
